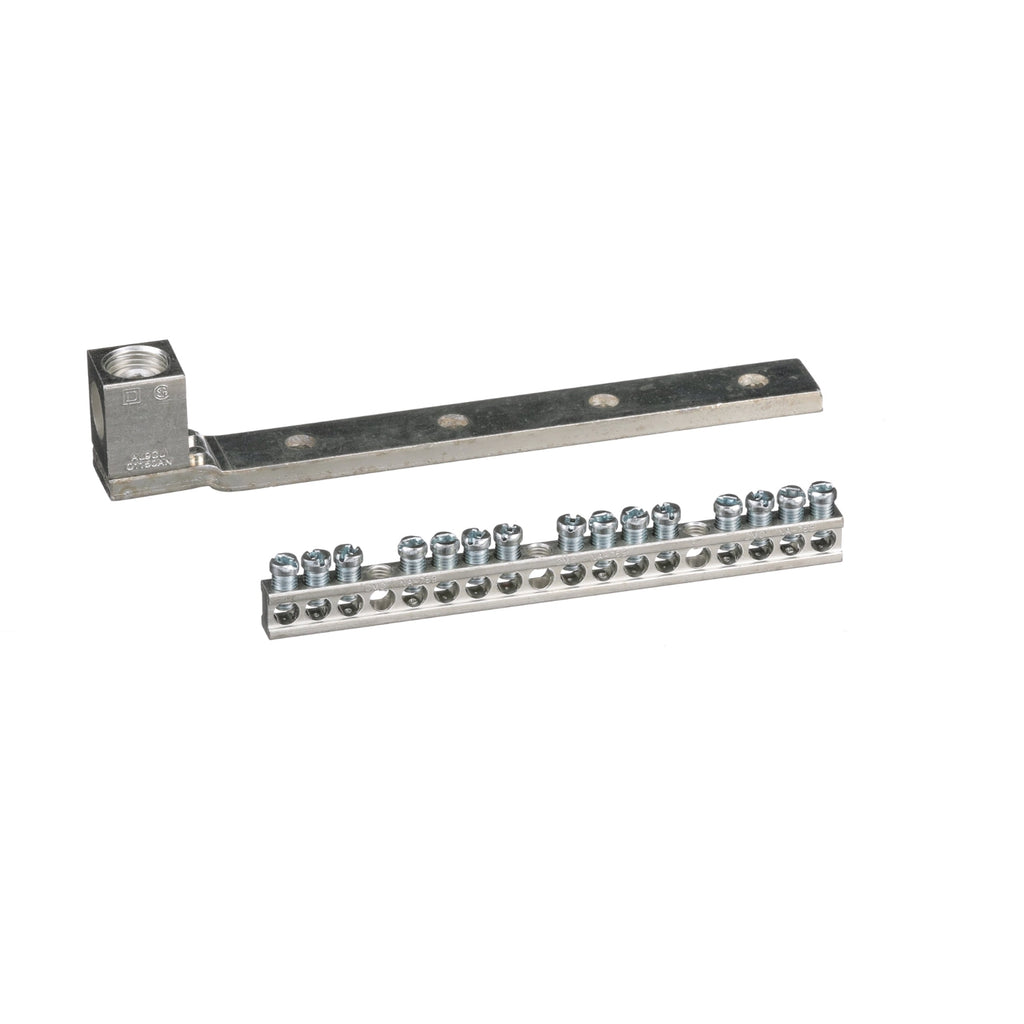

PK15GTAL - Schneider Electric - Square D Ground Bar
By grounding the system, it helps prevent electrical shock hazards and ensures that stray electrical currents are safely directed to the earth. It acts as a centralized location where all ground wires from branch circuits are securely connected. It provides a neat and organized way to terminate multiple ground conductors, making the panel easier to inspect and maintain. This is a Ground Lug kit compatible for both QO and Homeline Load Center. It has 16 number of circuits which accepts 15-(1) #14# 4 or (2) #14 or #12AWG copper or (1) #12#4 or (2) #12 or #10AWG aluminum and 1-(1)#1-4/0AWG aluminum or copper.
GENERAL SPECIFICATIONS
| product line | QO |
|---|---|
| product type | Bar |
| Number of connectors | 16 |
|---|---|
| wire size | AWG 14...AWG 4 copper AWG 12...AWG 4 aluminium AWG 4...AWG 1 aluminium/copper |
| Provided equipment | 2 screw |
| Bar length | 8.1 in (207 mm) |
| Maximum length of segment | 3.1 in (80 mm) |
| Device mounting | Direct mounting back of enclosure |
| Height | 0.437 in (11.100 mm) |
| Depth | 0.312 in (7.925 mm) |
| Tightening torque | 30 lb.in Mounting screw 30 lb.in 20 lb.in, AWG 14...AWG 10, copper 20 lb.in, AWG 12...AWG 10, aluminium 35 lb.in, AWG 6...AWG 4 25 lb.in, AWG 8 25 lb.in, AWG 14...AWG 12, copper 25 lb.in, AWG 12...AWG 10, aluminium |
| Category | US1DE3A00102 |
|---|---|
| Discount Schedule | DE3A |
| GTIN | 785901440871 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.42 in (3.6 cm) |
| Package 1 Width | 4.21 in (10.7 cm) |
| Package 1 Length | 7.52 in (19.1 cm) |
| Package 1 Weight | 5.1 oz (145 g) |
