PK27GTA - Schneider Electric - Square D Load Center Accessory

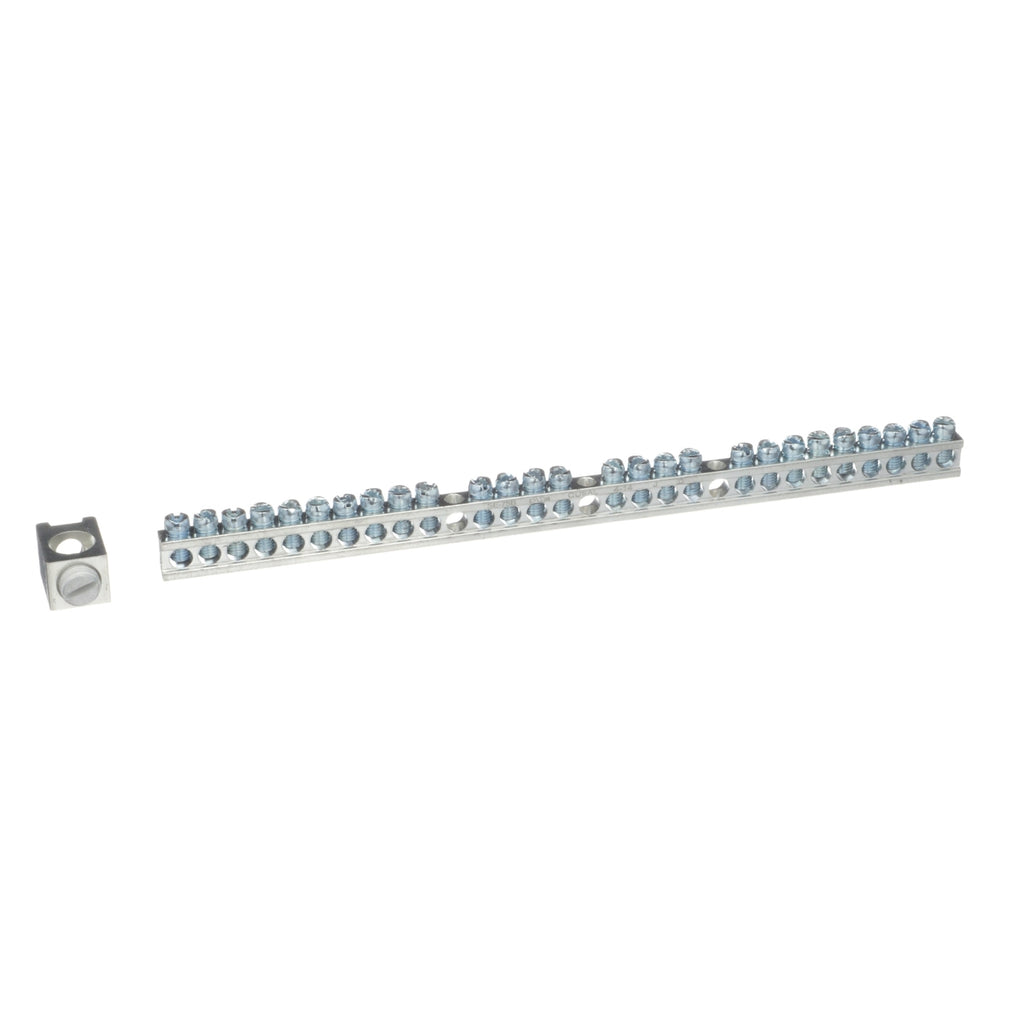

By grounding the system, it helps prevent electrical shock hazards and ensures that stray electrical currents are safely directed to the earth. It acts as a centralized location where all ground wires from branch circuits are securely connected. It provides a neat and organized way to terminate multiple ground conductors, making the panel easier to inspect and maintain. This is a Ground Lug kit compatible for both QO and Homeline Load Center. It has 26 or 27 number of circuits which accepts 26 or 27- (1) #14# 4 or (2) #14 or #12AWG copper or (1) #12#4 or (2) #12 or #10AWG aluminum and 1-(1)#6-2/0AWG.
GENERAL SPECIFICATIONS
Main
| product line |
QO |
| product type |
Bar |
Complementary
| Number of connectors |
27
26 |
| Height |
0.437 in (11.100 mm) |
| Depth |
0.312 in (7.925 mm) |
| Tightening torque |
50 lb.in, AWG 6...AWG 2/0 |
Ordering and shipping details
| Category |
US1DE3A00102 |
| Discount Schedule |
DE3A |
| GTIN |
785901156819 |
| Returnability |
Yes |
| Country of origin |
US |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
3.60 in (9.144 cm) |
| Package 1 Width |
0.40 in (1.016 cm) |
| Package 1 Length |
9.40 in (23.876 cm) |
| Package 1 Weight |
4.480 oz (127.006 g) |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
10 |
| Package 2 Height |
4.00 in (10.160 cm) |
| Package 2 Width |
4.80 in (12.192 cm) |
| Package 2 Length |
16.00 in (40.640 cm) |
| Package 2 Weight |
3.060 lb(US) (1.388 kg) |
