PK32DGTA - Schneider Electric - Square D I-Line Panelboard Accessory

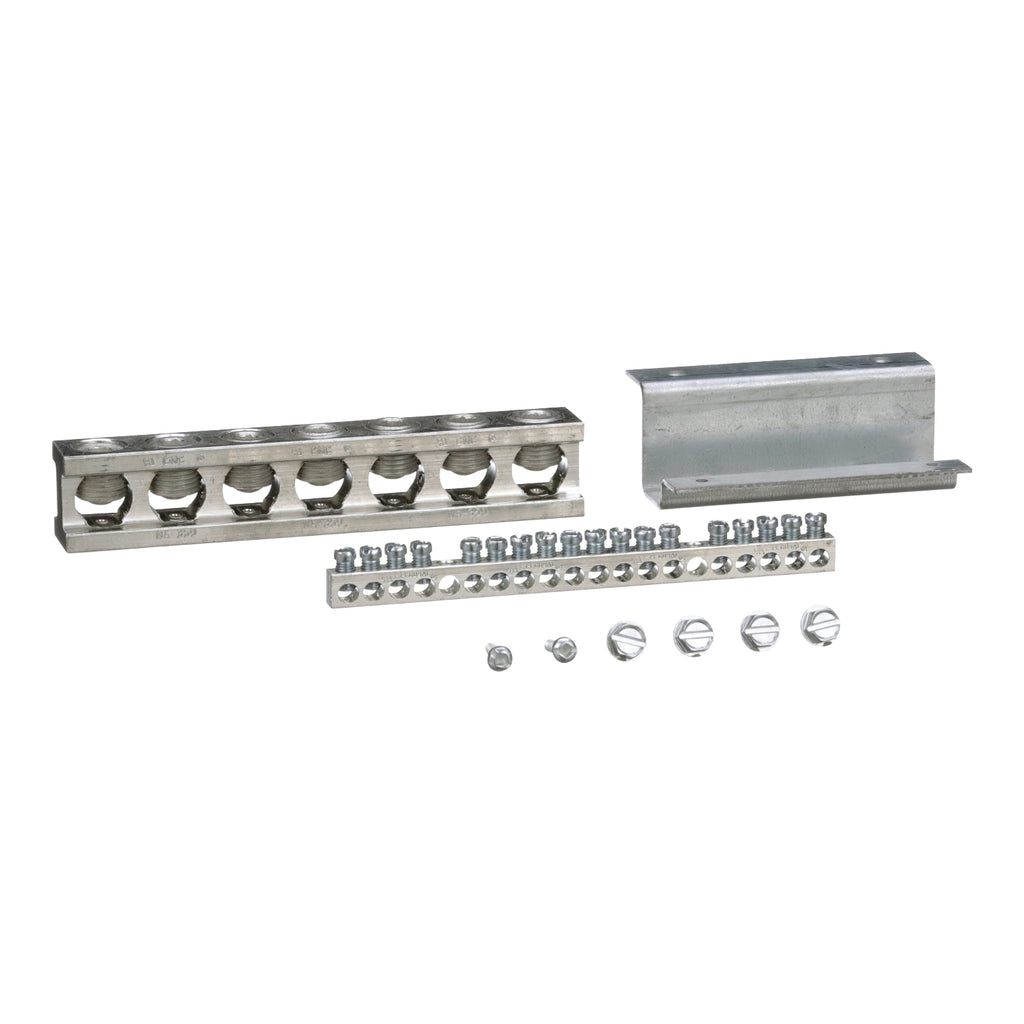

Square D(TM) I-Line Power Distribution Panelboards are ideal for service entrance equipment or downstream distribution panels in the electrical system. I-line power distribution panelboards are for use on AC or DC systems. The I-Line power distribution panelboard is the most versatile on the market and feature Schneider Electric's unique breaker engagement system which allows 15 A branch circuit breaker next to or across from a 1200 A circuit breaker. I-Line circuit breaker panelboards are available as 400-1200 A main lugs only and 100-1200 A main circuit breakers. This accessory is a aluminum grounding bar kit. This product is certified to cULus & CE standards. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories (UL) Listed under File E33139.
GENERAL SPECIFICATIONS
Main
| Range |
I-Line |
| Product or Component Type |
Grounding kit |
Complementary
| Mounting Space |
6.32 in (160.53 mm) |
| Enclosure Material |
Aluminium |
| Net Weight |
0.51 lb(US) (0.23 kg) |
| Tightening torque |
2.04...24.96 lbf.in (0.23...2.82 N.m) (AWG 14...AWG 4)
10.001 lbf.in (1.13 N.m) (AWG 6...350 kcmil) |
Ordering and shipping details
| Category |
US1PE1A00014 |
| Discount Schedule |
PE1A |
| GTIN |
785901028185 |
| Returnability |
Yes |
| Country of origin |
US |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
2.00 in (5.08 cm) |
| Package 1 Width |
2.50 in (6.35 cm) |
| Package 1 Length |
8.20 in (20.83 cm) |
| Package 1 Weight |
16.80 oz (476.28 g) |
PRODUCT DATASHEET
PK32DGTA_Product Datasheet
