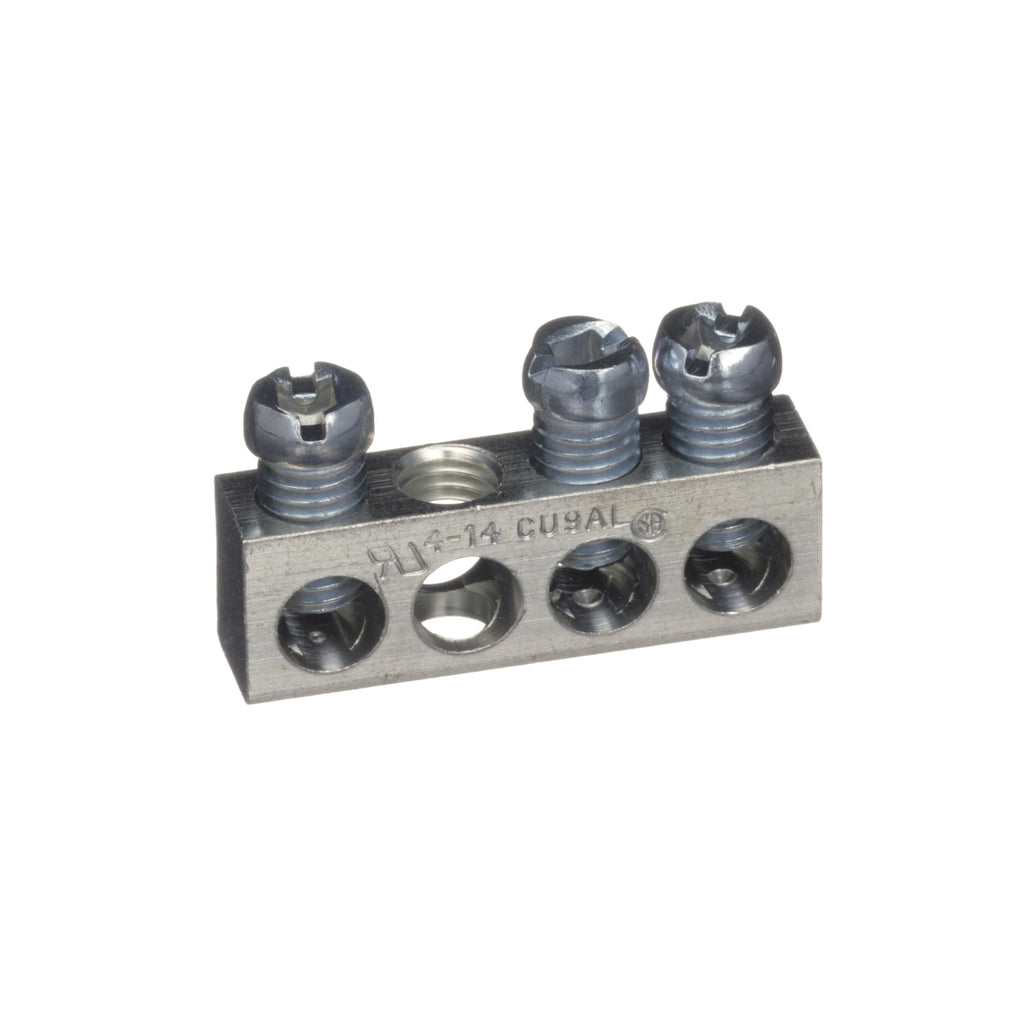

PK3GTA1 - Schneider Electric - Siemens Ground Bar Kit
By grounding the system, it helps prevent electrical shock hazards and ensures that stray electrical currents are safely directed to the earth. It acts as a centralized location where all ground wires from branch circuits are securely connected. It provides a neat and organized way to terminate multiple ground conductors, making the panel easier to inspect and maintain. This is a Ground Lug kit compatible for both QO and Homeline Load Center. It has 3 number of circuits which accepts (1) #14# 4 or (2) #14 or #12AWG copper or (1) #12#4 or (2) #12 or #10AWG aluminum.
GENERAL SPECIFICATIONS
Main
| product line |
QO
Homeline |
| product type |
Bar |
Complementary
| Number of connectors |
3 |
| wire size |
AWG 14...AWG 4 copper
AWG 12...AWG 4 aluminium |
| Provided equipment |
2 screw |
| Bar length |
1.4 in (35 mm) |
| Device mounting |
Direct mounting back of enclosure |
| Height |
0.437 in (11.100 mm) |
| Depth |
0.312 in (7.925 mm) |
Ordering and shipping details
| Category |
US1DE3A00102 |
| Discount Schedule |
DE3A |
| GTIN |
785901156932 |
| Returnability |
Yes |
| Country of origin |
US |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
0.40 in (1.016 cm) |
| Package 1 Width |
0.78 in (1.982 cm) |
| Package 1 Length |
1.35 in (3.429 cm) |
| Package 1 Weight |
0.640 oz (18.144 g) |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
10 |
| Package 2 Height |
3.60 in (9.144 cm) |
| Package 2 Width |
4.40 in (11.176 cm) |
| Package 2 Length |
5.40 in (13.716 cm) |
| Package 2 Weight |
8.64 oz (244.94 g) |
| Unit Type of Package 3 |
PAL |
| Number of Units in Package 3 |
4680 |
| Package 3 Height |
27.00 in (68.58 cm) |
| Package 3 Width |
40.00 in (101.6 cm) |
| Package 3 Length |
48.00 in (121.92 cm) |
| Package 3 Weight |
287.999 lb(US) (130.634 kg) |
