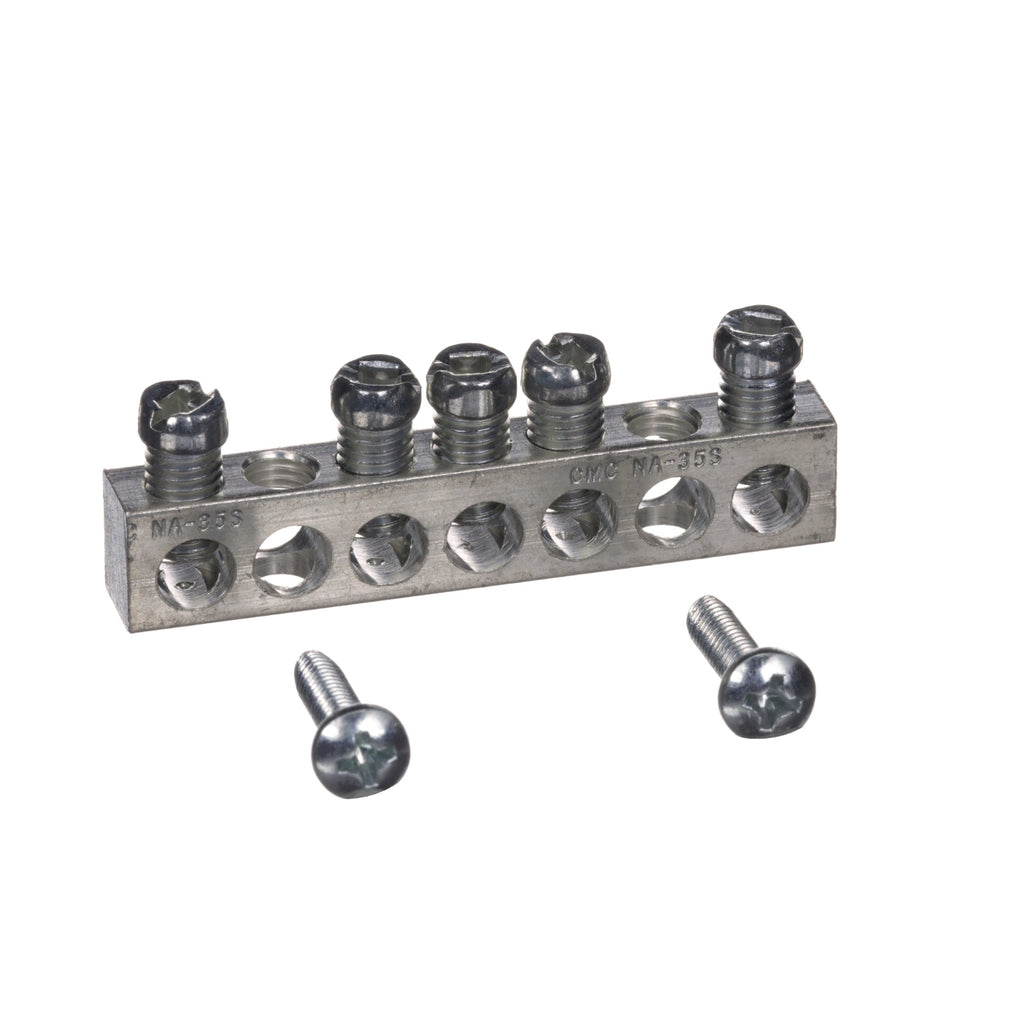

PK5GTA - Schneider Electric - Square D Ground Bar
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. The grounging bar is mounted directly to the back of the enclosure with two screws. It has 5 terminals.
GENERAL SPECIFICATIONS
| product line | QO |
|---|---|
| product type | Bar |
| Number of connectors | 5 |
|---|---|
| wire size | AWG 14...AWG 4 copper AWG 12...AWG 4 aluminium |
| Provided equipment | 2 screw |
| Bar length | 2.2 in (57 mm) |
| Maximum length of segment | 1.3 in (32 mm) |
| Device mounting | Direct mounting back of enclosure |
| Height | 0.437 in (11.100 mm) |
| Depth | 0.312 in (7.925 mm) |
| Tightening torque | 30 lb.in Mounting screw 30 lb.in 20 lb.in, AWG 14...AWG 10, copper 20 lb.in, AWG 12...AWG 10, aluminium 35 lb.in, AWG 6...AWG 4 25 lb.in, AWG 8 25 lb.in, AWG 14...AWG 12, copper 25 lb.in, AWG 12...AWG 10, aluminium |
| Category | US1DE3A00102 |
|---|---|
| Discount Schedule | DE3A |
| GTIN | 785901263654 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.63 in (1.6 cm) |
| Package 1 Width | 5.00 in (12.7 cm) |
| Package 1 Length | 7.91 in (20.1 cm) |
| Package 1 Weight | 0.8 oz (23 g) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 2160 |
| Package 2 Height | 40.00 in (101.6 cm) |
| Package 2 Width | 40.00 in (101.6 cm) |
| Package 2 Length | 48.00 in (121.92 cm) |
| Package 2 Weight | 184.166 lb(US) (83.536 kg) |
PRODUCT DATASHEET
