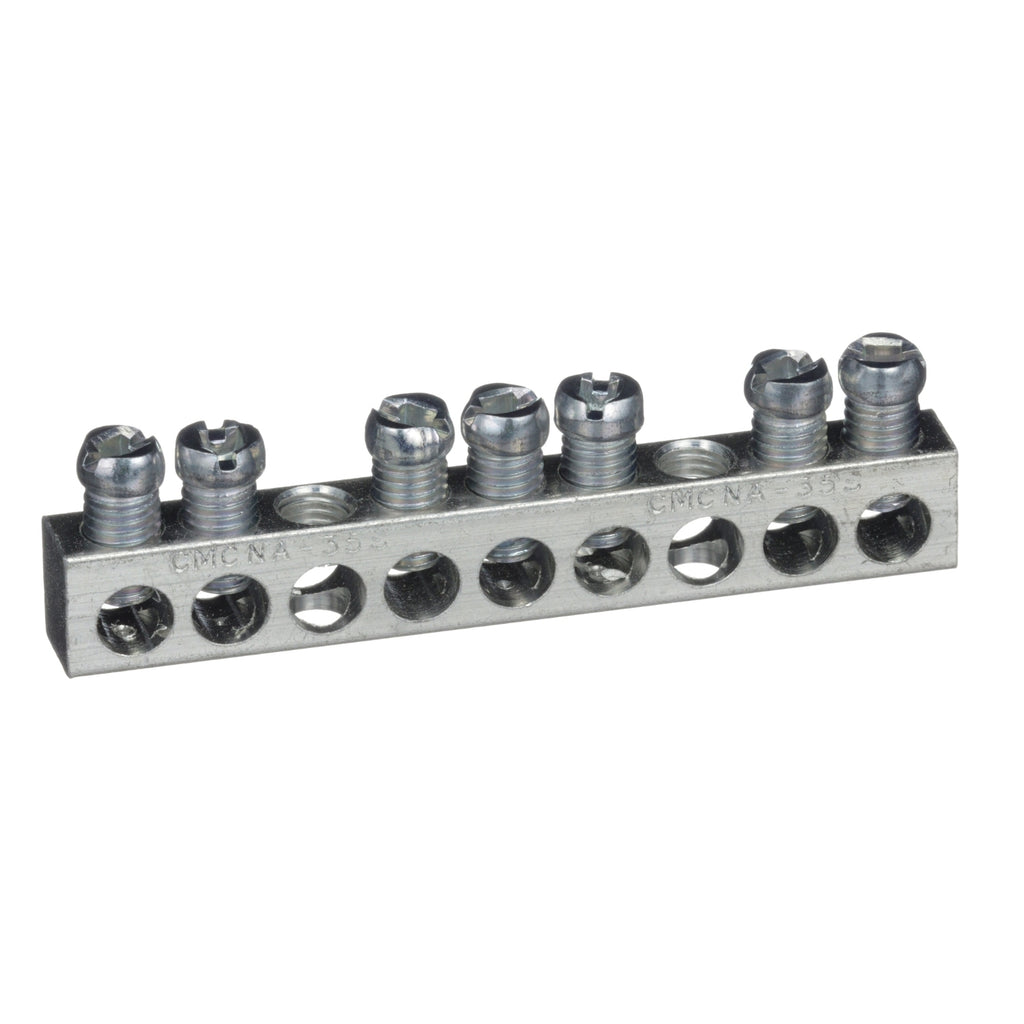

PK7GTA - Schneider Electric - Square D Ground Bar
By grounding the system, it helps prevent electrical shock hazards and ensures that stray electrical currents are safely directed to the earth. It acts as a centralized location where all ground wires from branch circuits are securely connected. It provides a neat and organized way to terminate multiple ground conductors, making the panel easier to inspect and maintain. This is a Ground Lug kit compatible for both QO and Homeline Load Center. It has 7 number of circuits which accepts (1) #14# 4 or (2) #14 or #12AWG copper or (1) #12#4 or (2) #12 or #10AWG aluminum.
GENERAL SPECIFICATIONS
| product line | QO |
|---|---|
| product type | Bar |
| Number of connectors | 7 |
|---|---|
| wire size | AWG 14...AWG 4 copper AWG 12...AWG 4 aluminium |
| Provided equipment | 2 screw |
| Bar length | 2.9 in (73 mm) |
| Maximum length of segment | 1.3 in (32 mm) |
| Device mounting | Direct mounting back of enclosure |
| Height | 0.437 in (11.100 mm) |
| Depth | 0.312 in (7.925 mm) |
| Tightening torque | 30 lb.in Mounting screw 30 lb.in 20 lb.in, AWG 14...AWG 10, copper 20 lb.in, AWG 12...AWG 10, aluminium 35 lb.in, AWG 6...AWG 4 25 lb.in, AWG 8 25 lb.in, AWG 14...AWG 12, copper 25 lb.in, AWG 12...AWG 10, aluminium |
| Category | US1DE3A00102 |
|---|---|
| Discount Schedule | DE3A |
| GTIN | 785901026372 |
| Returnability | Yes |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.30 in (0.762 cm) |
| Package 1 Width | 5.00 in (12.700 cm) |
| Package 1 Length | 10.00 in (25.400 cm) |
| Package 1 Weight | 1.280 oz (36.287 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 4.00 in (10.160 cm) |
| Package 2 Width | 6.50 in (16.510 cm) |
| Package 2 Length | 10.00 in (25.400 cm) |
| Package 2 Weight | 16.000 oz (453.592 g) |
PRODUCT DATASHEET
