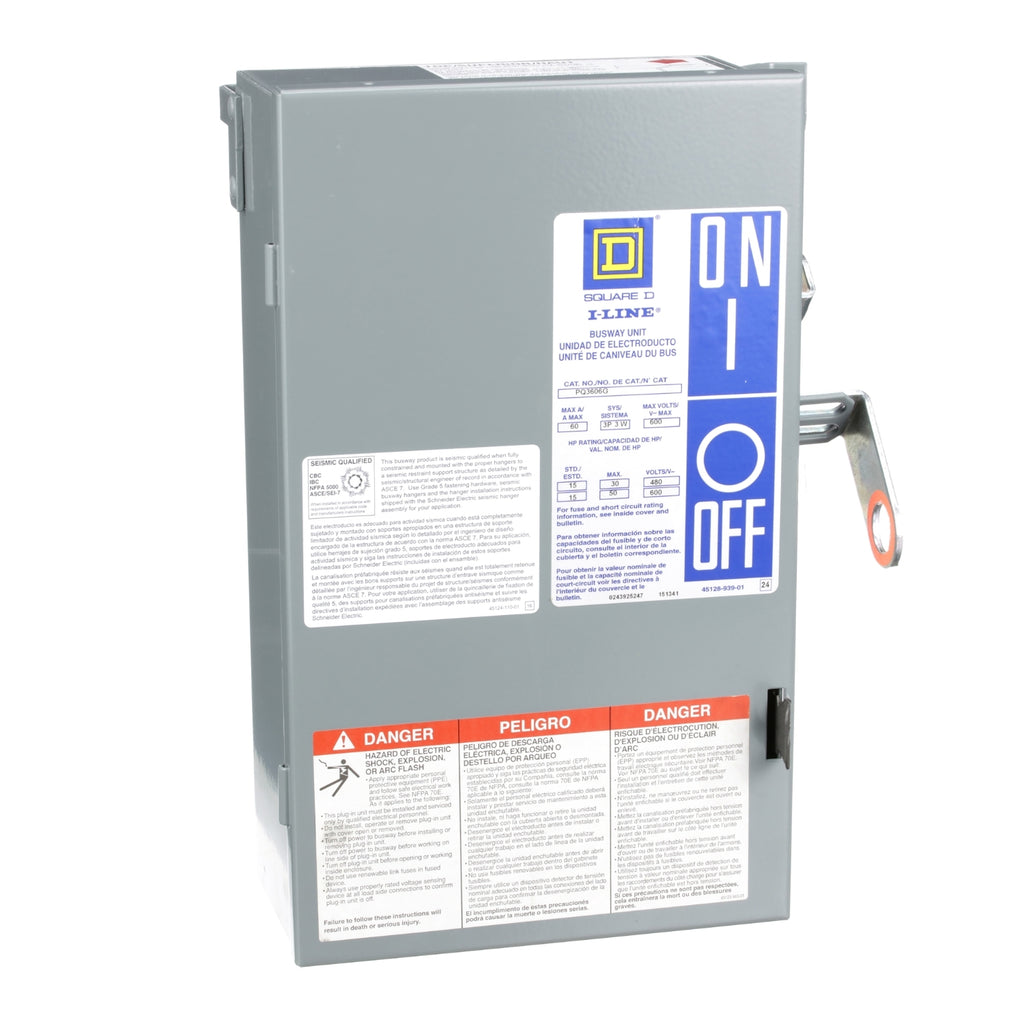

PQ3606G - Schneider Electric - Square D Plug-in Unit I-Line Busway Fusible 60A 600VAC 3 Pole
I-Line Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths, fittings, and plug-in units. I-Line plug-in busway has options to 1600A for circuit breaker plug-ins and 1200A for fusible plug-ins. Circuit breaker and fusible plug in units are available in 3 phase, 3 wire or 3 phase, 4 wire configurations. This fusible plug-in unit is 60A, 600VAC max, 3 pole, and 3 fuse + G. This unit uses a plug in connection. This plug-in unit accepts H, K, J or R fuses. I-Line Busway plug in units are UL listed and CSA certified.
GENERAL SPECIFICATIONS
Main
| Range of Product |
I-Line |
| Product or Component Type |
Plug-in unit |
Complementary
| Electrical Connection |
Plug-in |
| [Ue] rated operational voltage |
600 V AC |
| [Ie] rated operational current |
60 A |
| Number of poles |
3 |
| Busbar description |
Ground |
| Fuse type |
H, K, J or R |
| Disconnector device type |
Fusible disconnect |
Environment
| Product Certifications |
CSA
UL |
Ordering and shipping details
| Category |
US10PE720177 |
| Discount Schedule |
0PE7 |
| GTIN |
785901263913 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
9.6 in (24.4 cm) |
| Package 1 Width |
11.2 in (28.5 cm) |
| Package 1 Length |
15.3 in (38.9 cm) |
| Package weight(Lbs) |
13.067 lb(US) (5.927 kg) |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
40 |
| Package 2 Height |
40.0 in (101.6 cm) |
| Package 2 Width |
36.00 in (91.44 cm) |
| Package 2 Length |
48.00 in (121.92 cm) |
| Package 2 Weight |
532.0001 lb(US) (241.311 kg) |
