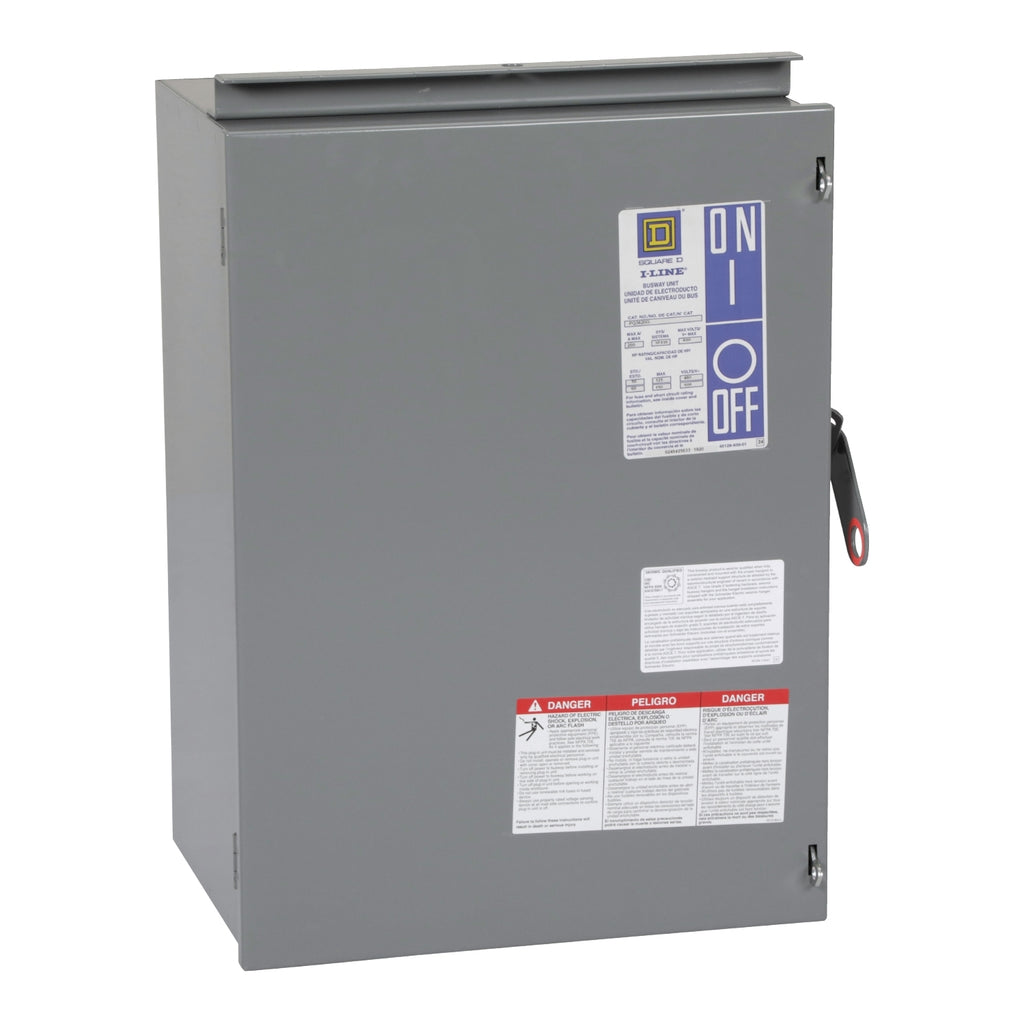

PQ3620G - Schneider Electric - Square D Plug-in Unit I-Line Busway Fusible 200A 600VAC 3 Pole
I-Line Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths, fittings, and plug-in units. I-Line plug-in busway has options to 1600A for circuit breaker plug-ins and 1200A for fusible plug-ins. Circuit breaker and fusible plug in units are available in 3 phase, 3 wire or 3 phase, 4 wire configurations. This fusible plug-in unit is 200A, 600VAC max, 3 pole, and 3 fuse + G. This unit uses a plug in connection. This plug-in unit accepts H, K, J or R fuses. I-Line Busway plug in units are UL listed and CSA certified.
GENERAL SPECIFICATIONS
Main
| Range of Product |
I-Line |
| Product or Component Type |
Plug-in unit |
Complementary
| Electrical Connection |
Plug-in |
| [Ue] rated operational voltage |
600 V AC |
| [Ie] rated operational current |
200 A |
| Number of poles |
3 |
| Busbar description |
Ground |
| Fuse type |
H, K, J or R |
| Disconnector device type |
Fusible disconnect |
Environment
| Product Certifications |
UL
CSA |
Ordering and shipping details
| Category |
US10PE720178 |
| Discount Schedule |
0PE7 |
| GTIN |
785901263937 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
20.80 in (52.832 cm) |
| Package 1 Width |
20.90 in (53.086 cm) |
| Package 1 Length |
25.50 in (64.770 cm) |
| Package 1 Weight |
68.961 lb(US) (31.280 kg) |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
8 |
| Package 2 Height |
43.50 in (110.490 cm) |
| Package 2 Width |
40.00 in (101.600 cm) |
| Package 2 Length |
48.00 in (121.920 cm) |
| Package 2 Weight |
540.0007 lb(US) (244.940 kg) |
