Description
GENERAL
| Application | For Copper Cable |
| Catalog Number | QA402N |
| Connector Type | Single Clamp |
| Installation Torque Recommended in-lb | 500 LBS/in |
| Material | Copper |
| Physical Attribute - Number of Holes | 2 |
| Physical Attribute - Number of Screws | 1 |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Plated | No |
| Plating Type | Unplated |
| Product Family | MECHANICAL |
| Product Type | Terminal |
| Sub Brand | QIKLUG |
| Temperature Rating | 194 |
| Trade Name | QIKLUG™ |
| Type | Bolted Lugs & Terminals |
| UPC | 781810317327 |
| UPC 14 Digit GTIN | 00781810317327 |
DIMENSIONS
| Dimension - Bolt Size fraction | 1/2 |
| Dimension - D inch | 3.00 in |
| Dimension - F Width Center to Center inch | 1.75 in |
| Dimension - Height fraction | 2-7/16 |
| Dimension - Height inch | 2.31 in |
| Dimension - Height mm | 58.7 mm |
| Dimension - Hole Size fraction | 9/16 |
| Dimension - Hole Size inch | 0.56 in |
| Dimension - Hole Size mm | 14 mm |
| Dimension - L Length Overall mm | 122 mm |
| Dimension - Length Overall inch | 4.81 in |
| Dimension - N inch | 0.62 in |
| Dimension - Pad Width inch | 1.62 in |
| Dimension - Stud Size inch | 1/2 |
| Package Height | 0 in |
| Package Length | 0 in |
| Package Weight | 0 lb |
| Package Width | 0 in |
ELECTRICAL RATINGS
| Rating - Minimum Voltage | 600 |
CONDUCTOR RELATED
| Conductor - Copper Str Navy Size | 650 (127) Navy;800 (127) Navy |
| Conductor - Copper Str Navy Size Range | 650 (127) Navy-800 (127) Navy |
| Conductor - Copper Str Size | 600 kcmil;700 kcmil;750 kcmil;800 kcmil |
| Conductor - Copper Str Size Range | 600 kcmil-800 kcmil |
| Conductor Size | 600-800 kcmil |
| Conductor Type | CU C Str-Size CU C Str Navy-Size |
CERTIFICATIONS AND COMPLIANCE
| Buy America(n) Qualified | Contact Manufacturer |
| Certification - CSA Approved | No |
| Certification - cULus | No |
| Certification - ETL | No |
| Certification - UL Recognized | No |
| Industry Standard(s) | UL 486A-486B |
| Standards - Industry Standards Met | UL 486A-486B |
| Standards - RoHS Compliance Status | EX |
| UL Listed | Yes |
FORCE RELATED
| Installation Torque Recommended in-lb | 500 LBS/in |
OPERATIONAL
| Temperature Rating | 194 |
CONFIGURATION
| Connector Type | Single Clamp |
| Physical Attribute - Number of Holes | 2 |
| Physical Attribute - Number of Screws | 1 |
LOGISTICS
| Carton Quantity | 6 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 1080 |
Product Datasheet

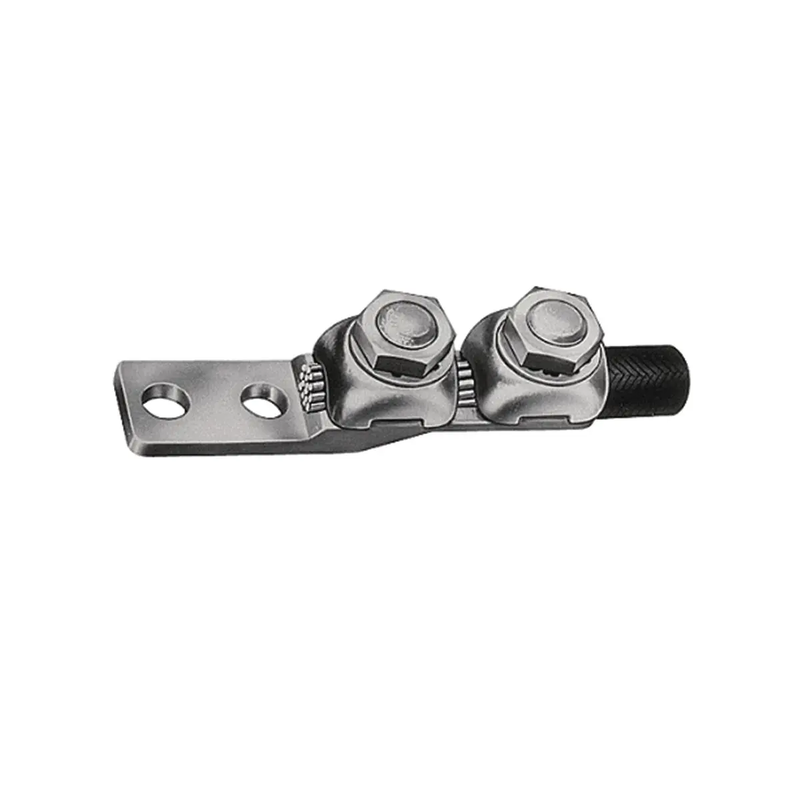

QA402N
QA402N
