Description

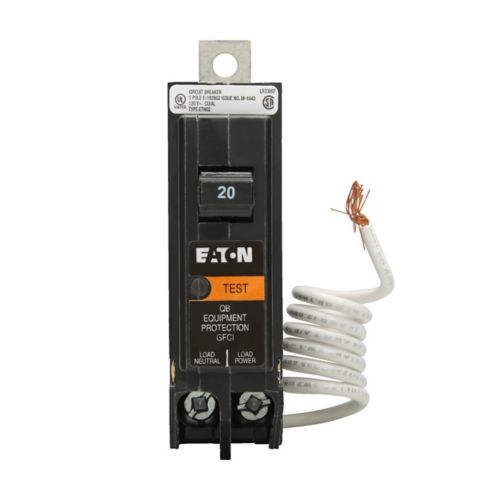

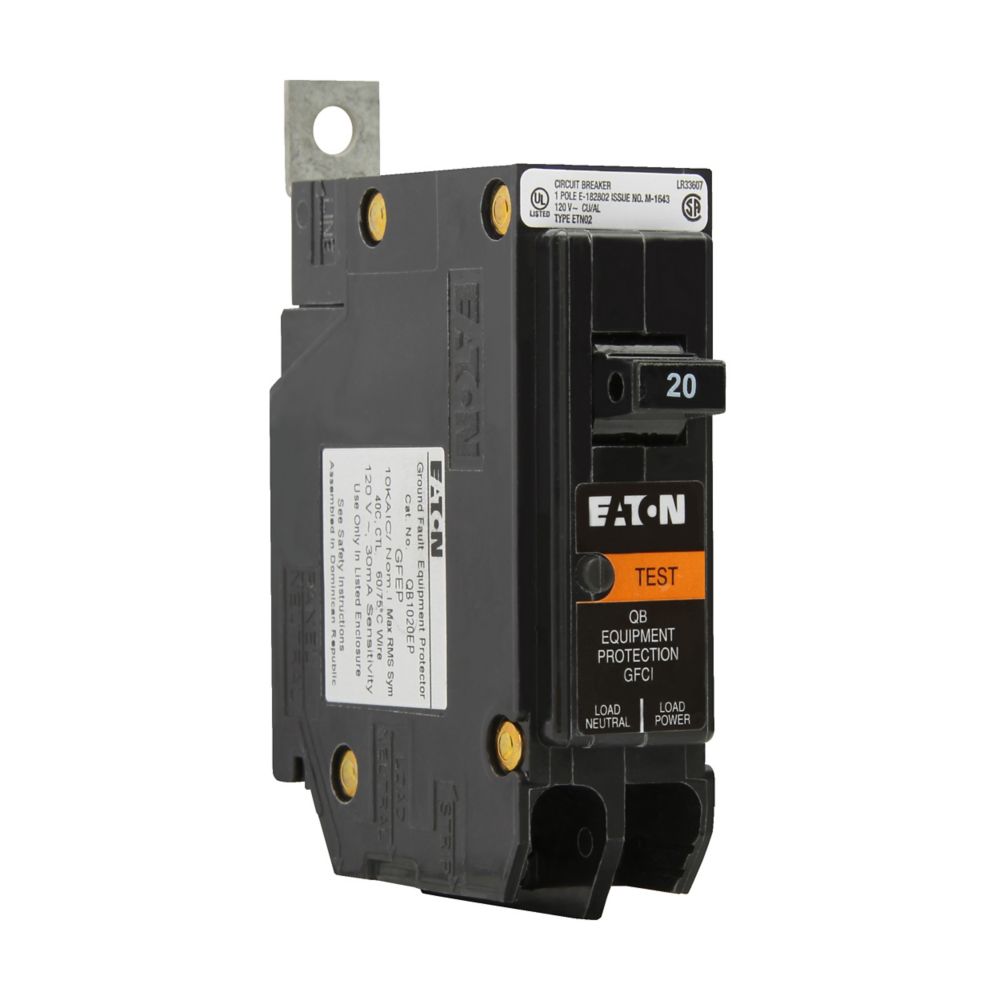

QB1020EP - Eaton - 20A Single-Pole 120/240V Bolt-On Equipment Protection QB GFCI Circuit Breakers
Eaton QB GFCI circuit breaker, Bolt-on equipment protection,20A,10 kAIC, Single-pole, 120/240V, Non-Interchangeable, 30 mA Trip sensitivity, Bolt-on, #14-4 AWG, QB
GENERAL SPECIFICATIONS
| Product Name |
Eaton QB GFCI circuit breaker
|
| Catalog Number |
QB1020EP
|
| UPC |
786679185995
|
| Product Length/Depth |
3.5 in
|
| Product Height |
1 in
|
| Product Width |
3.5 in
|
| Product Weight |
0.45 lb
|
| Certifications |
UL 489
|
| Product Type |
GFCI circuit breakers
|
PHYSICAL ATTRIBUTES
| Circuit breaker type |
QB
|
| Connection |
Bolt-on
|
| Mounting Method |
Bolt-on
|
| Number of poles |
Single-pole
|
| Type |
Bolt-on equipment protection
|
| Wire size |
#14-4 AWG
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
20 A
|
| Interrupt rating |
10 kAIC
|
| Trip Type |
Non-Interchangeable
|
| Trip rating |
30 mA trip sensitivity
|
| Voltage rating |
120/240 V
|
PRODUCT DATASHEET
