Description

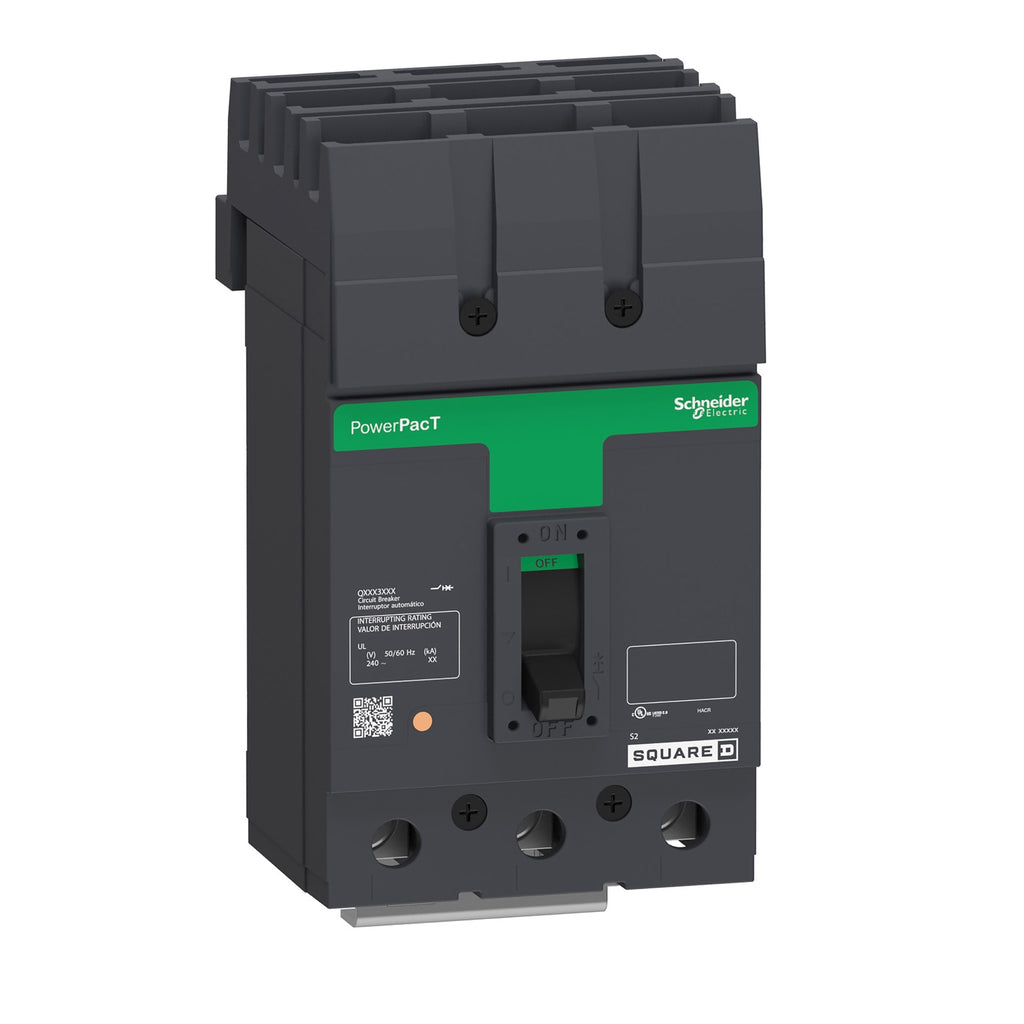

QBA32200 - Schneider Electric - I-Line Plug-In 200 Amp 3 Pole 240 Volt Square D Molded Case Circuit Breaker
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT Q, 200A, 3 pole, circuit breaker has an interrupting rating of 10kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
GENERAL SPECIFICATIONS
| Range | PowerPact |
|---|---|
| product name | PowerPact Q |
| Product or Component Type | Circuit breaker |
| Device Application | Distribution |
| Line Rated Current | 200 A |
|---|---|
| Number of Poles | 3P |
| Control Type | Operating handle |
| Breaking capacity code | B |
| Breaking capacity | 10 kA 120/208 V AC 50/60 Hz UL 10 kA 240 V AC 50/60 Hz UL |
| [Ue] rated operational voltage | 240 V AC 50/60 Hz UL |
| Network Frequency | 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV UL |
| Trip unit technology | Thermal-magnetic |
| Magnetic tripping current | 2400 A |
| Magnetic hold current | 1200 A |
| Continuous current rating | 80 % |
| Utilisation category | Category A |
| Mechanical durability | 1000 cycles loaded 5000 cycles no load |
| Local signalling | 1 trip indicator green) |
| Mounting mode | I-Line bracket) |
| Mounting Support | Bracket |
| Electrical connection | I-Line connection, line Lugs, load |
| Mounting Height | 4.5 in (114.3 mm) |
| Tightening torque | 247.8 lbf.in (28 N.m) 0.04…0.2 in² (25…150 mm²) (AWG 4...300 kcmil) |
| Power wire stripping length | 0.9 in (22 mm) |
| Height | 6.47 in (164.34 mm) |
| Width | 4.5 in (114.3 mm) |
| Depth | 3.93 in (99.82 mm) |
| Phase connection | ABC |
| Circuit breaker application | HACR rated |
