Description

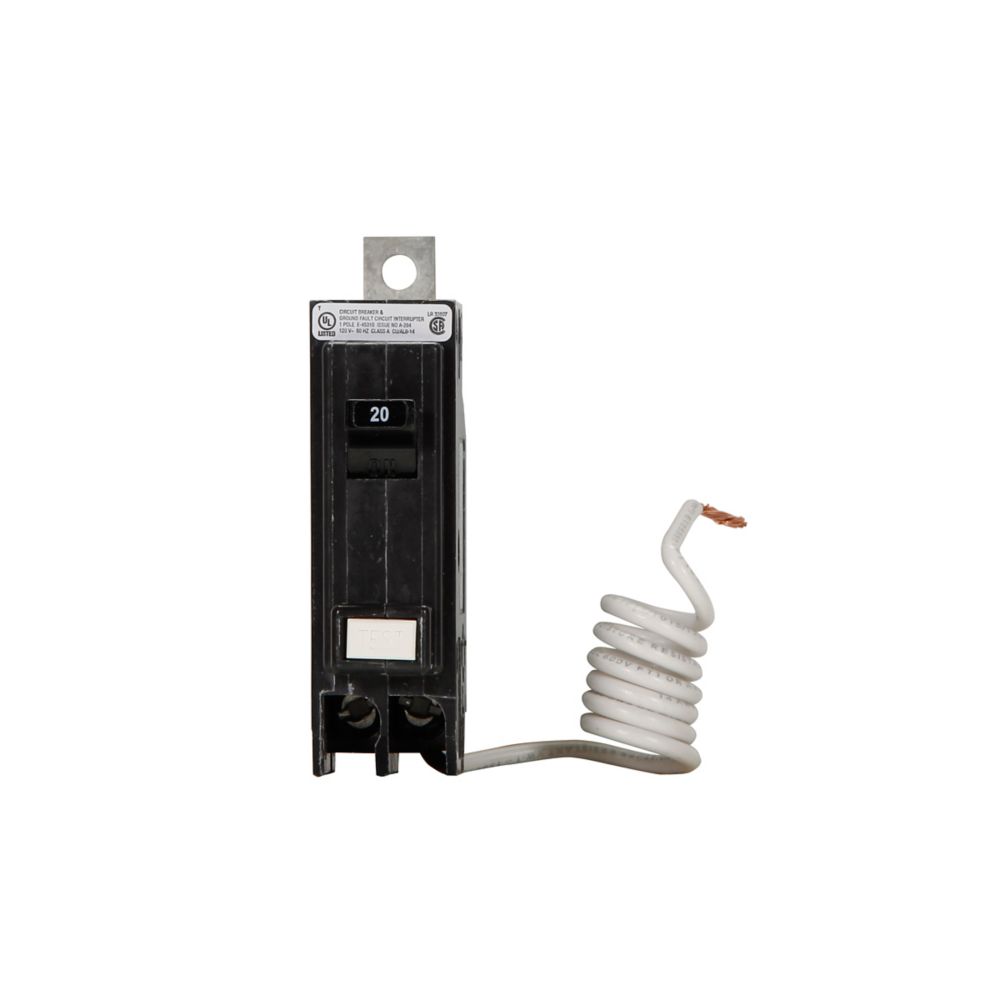

QBGFT1020 - Eaton Cutler-Hammer - Bolt On - 20 Amp 1 Pole 120 Volt GFCI Circuit Breakers
Eaton QB GFCI circuit breaker, Ground fault circuit breaker,20A,10 kAIC, Single-pole,120/240V, Non-Interchangeable,5 mA Trip sensitivity,#14–10 Cu, #12–10 Al,QBGF
GENERAL SPECIFICATIONS
| Product Name |
Eaton QB GFCI circuit breaker
|
| Catalog Number |
QBGFT1020
|
| UPC |
786680130960
|
| Product Length/Depth |
1 in
|
| Product Height |
1 in
|
| Product Width |
1 in
|
| Product Weight |
0.4 lb
|
| Certifications |
UL 489
|
| Product Type |
GFCI circuit breakers
|
PHYSICAL ATTRIBUTES
| Circuit breaker type |
QBGF
|
| Mounting Method |
Bolt-on
|
| Number of poles |
Single-pole
|
| Type |
Ground fault circuit breaker
|
| Wire size |
#14-10 AWG Cu
#12-10 AWG Al |
PERFORMANCE RATINGS
| Amperage Rating |
20 A
|
| Interrupt rating |
10 kAIC
|
| Trip Type |
Non-Interchangeable
|
| Trip rating |
5 mA trip sensitivity
|
| Voltage rating |
120/240 V
|
MISCELLANEOUS
| Special features |
5 mA Trip Sensitivity
|
