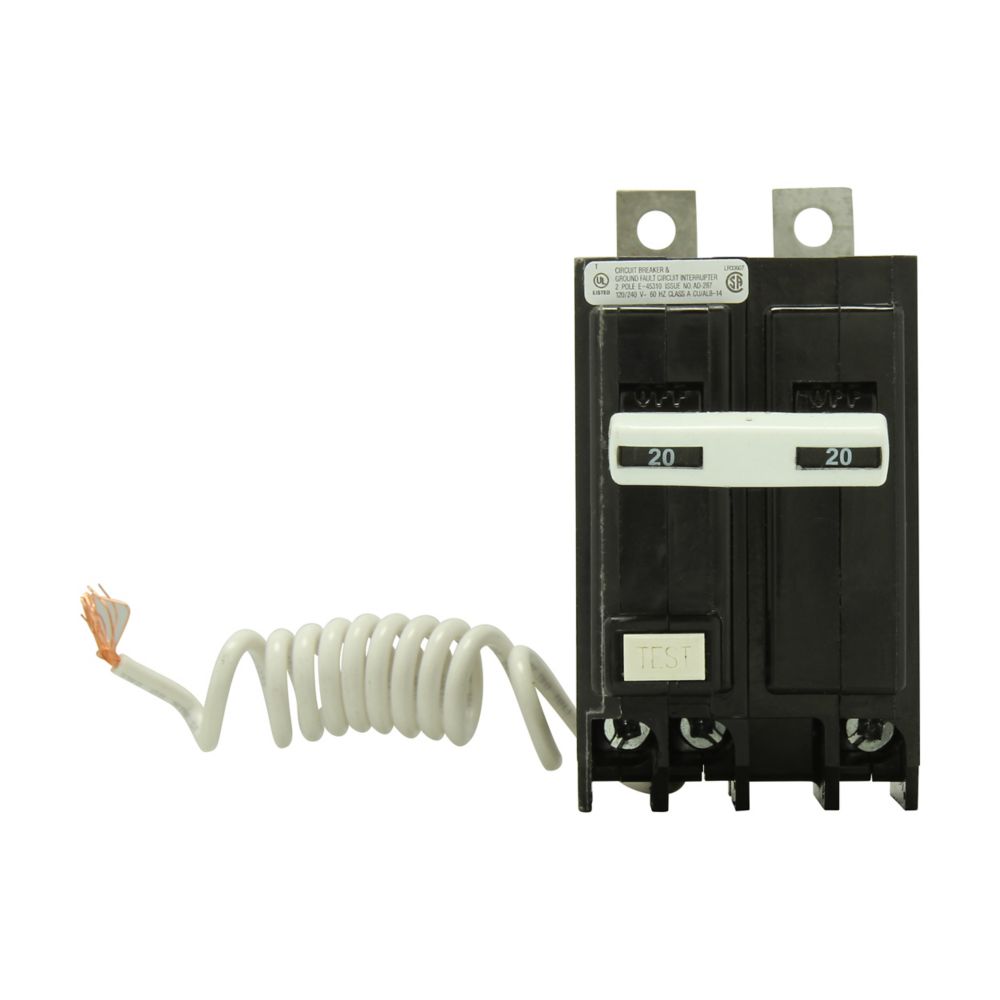

QBGFT2020 - Eaton Cutler Hammer - 20A 240V Quicklag GFCI Circuit Breakers
Eaton QB GFCI circuit breaker,Ground fault circuit breaker,20A,10 kAIC,Two-pole,120/240V,Common trip,5 mA Trip sensitivity,#14–10 Cu, #12–10 Al,QBGF
GENERAL SPECIFICATIONS
| Product Name |
Eaton QB GFCI circuit breaker
|
| Catalog Number |
QBGFT2020
|
| UPC |
786676026710
|
| Product Length/Depth |
4.5 in
|
| Product Height |
2 in
|
| Product Width |
2.75 in
|
| Product Weight |
0.6 lb
|
| Certifications |
UL 489
|
| Catalog Notes |
HACR rated
|
| Product Type |
GFCI circuit breakers
|
PHYSICAL ATTRIBUTES
| Circuit breaker type |
QBGF
|
| Mounting Method |
Bolt-on
|
| Number of poles |
Two-pole
|
| Type |
Ground fault circuit breaker
|
| Wire size |
#14-10 AWG Cu
#12-10 AWG Al |
PERFORMANCE RATINGS
| Amperage Rating |
20 A
|
| Interrupt rating |
10 kAIC
|
| Trip Type |
Common trip
|
| Trip rating |
5 mA trip sensitivity
|
| Voltage rating |
120/240 V
|
MISCELLANEOUS
| Special features |
5 mA Trip Sensitivity
|
