Description

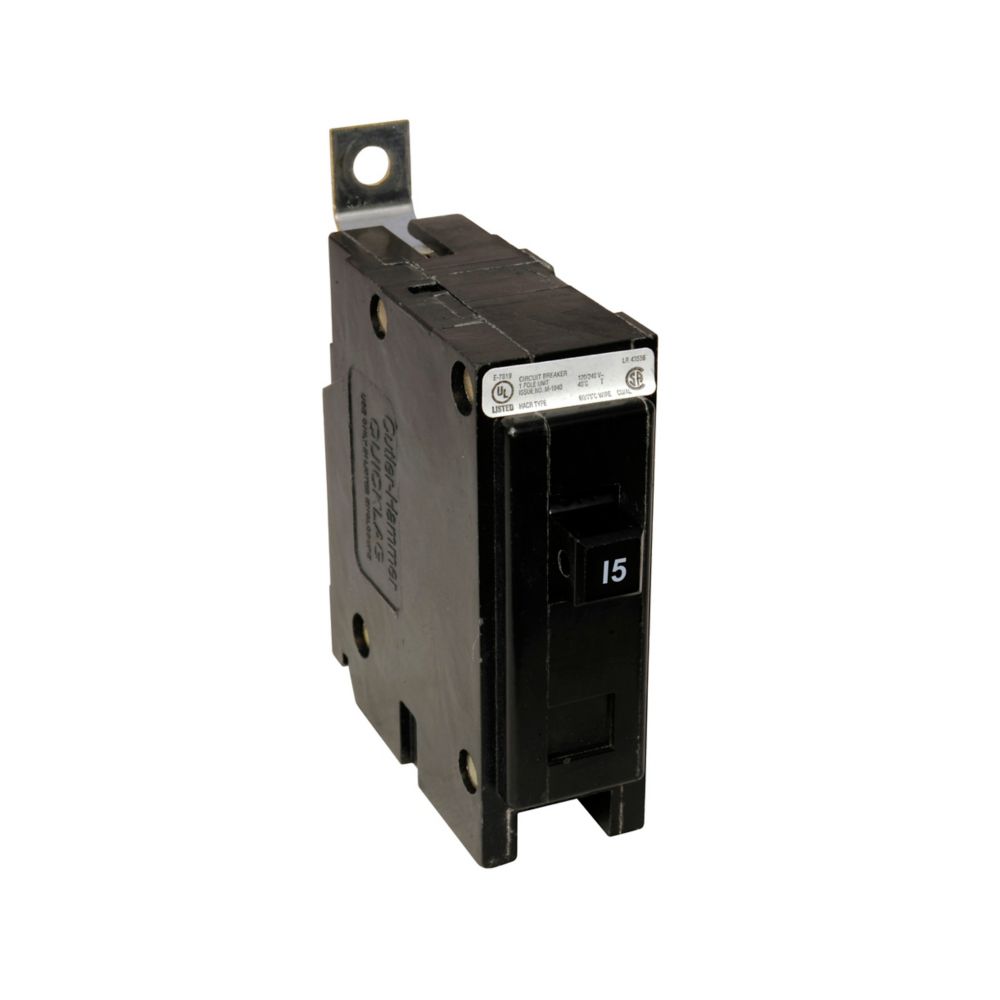

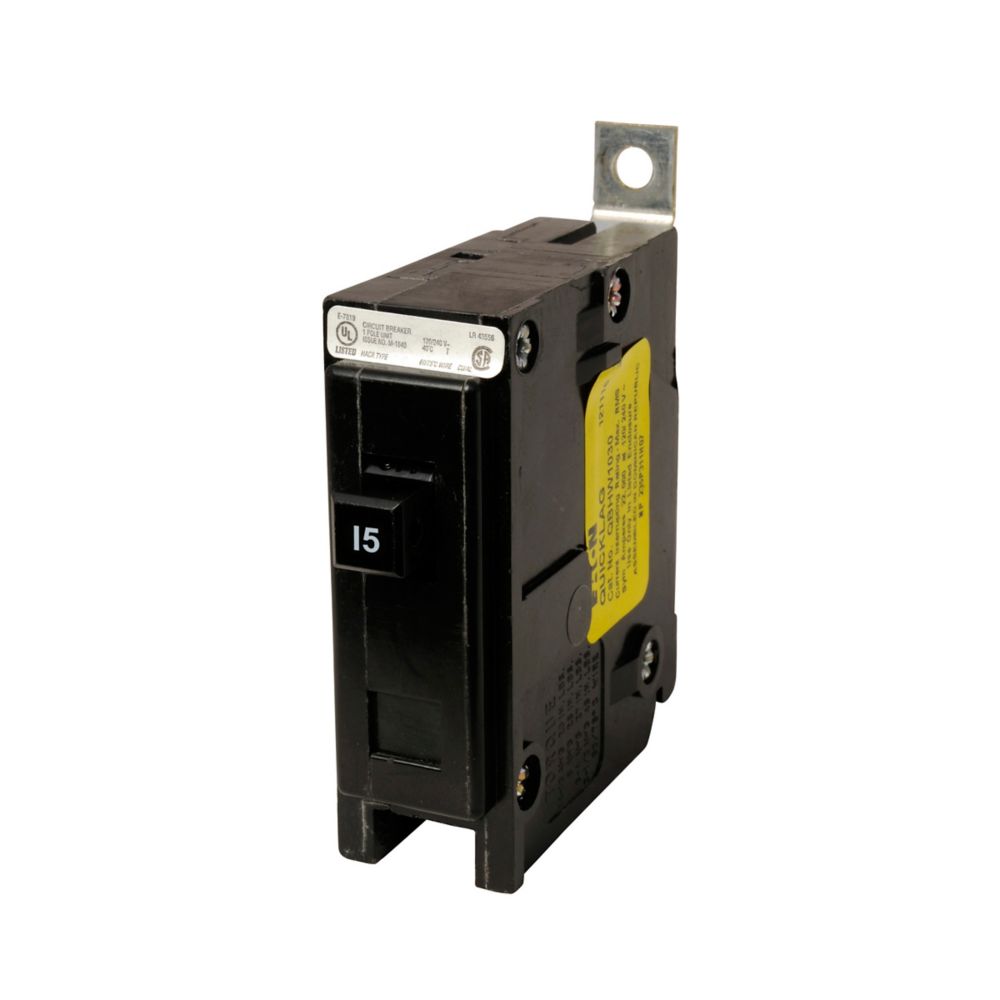

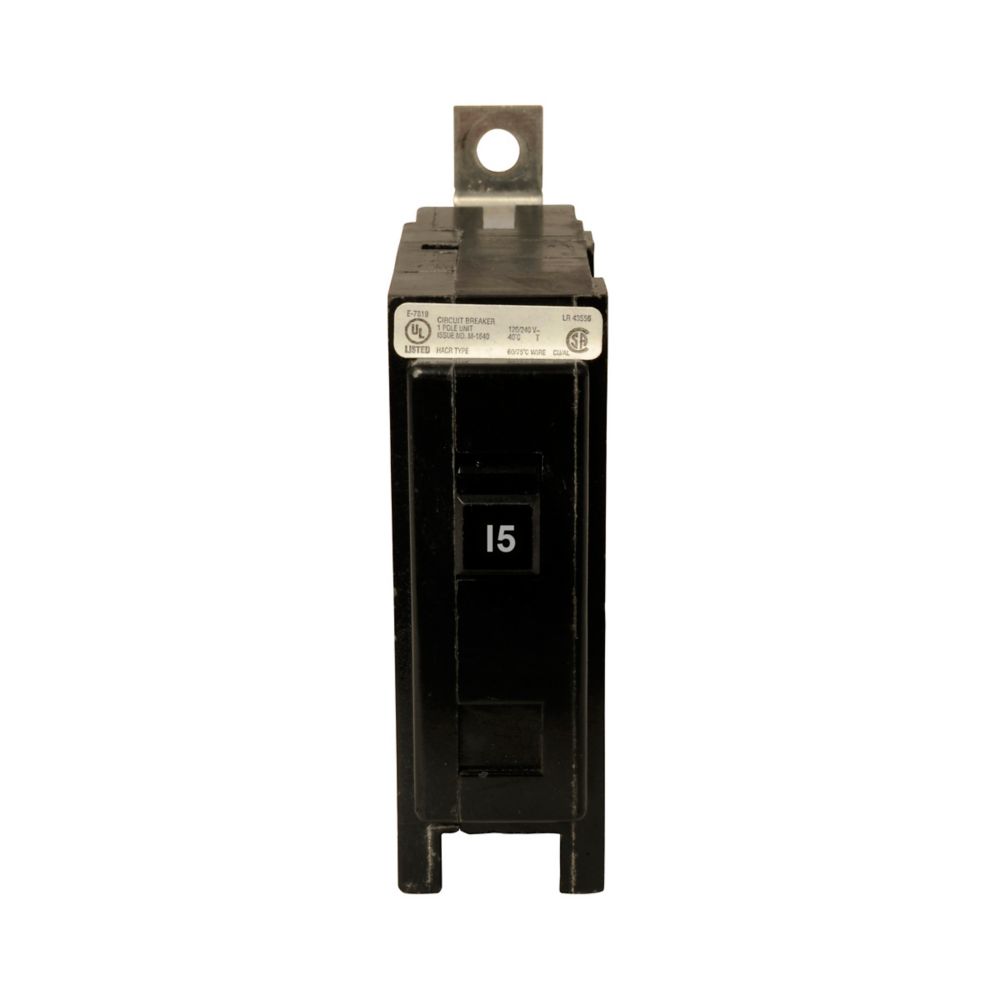

QBHW1015 - Eaton Cutler Hammer - 15A 240V Quicklag Thermal Magnetic Circuit Breakers
Eaton QB thermal magnetic circuit breaker, Quicklag industrial thermal-magnetic circuit breaker,20 A,22 kAIC,Single-pole,120/240 V, Non-Interchangeable, Q17,QBHW
GENERAL SPECIFICATIONS
| Product Name |
Eaton QB thermal magnetic circuit breaker
|
| Catalog Number |
QBHW1015
|
| UPC |
786679392003
|
| Product Length/Depth |
3.9 in
|
| Product Height |
4.8 in
|
| Product Width |
1.2 in
|
| Product Weight |
0.3 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
Switching duty rated for 120V fluorescent light applications, HACR rated
|
| Product Type |
Thermal magnetic circuit breakers
|
PHYSICAL ATTRIBUTES
| Circuit breaker type |
QBHW
|
| Mounting Method |
Bolt-on
|
| Number of poles |
Single-pole
|
| Type |
Quicklag industrial thermal-magnetic circuit breaker
|
PERFORMANCE RATINGS
| Amperage Rating |
15 A
|
| Interrupt rating |
22 kAIC
|
| Trip Type |
Non-Interchangeable
|
| Voltage rating |
120/240 V
|
MISCELLANEOUS
| Quantity |
17
|
PRODUCT DATASHEET
