Description
| Main | |
|---|---|
| Range | PowerPact |

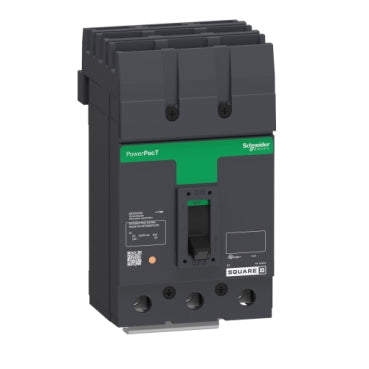

| Product name | PowerPact Q |
| Product or Component Type | Circuit breaker |
| Device Application | Distribution |
| Complementary | |
| Line Rated Current | 90 A |
| Number of Poles | 3P |
| Control Type | Operating handle |
| Breaking capacity code | D |
| Breaking capacity | 25 kA 120/208 V AC 50/60 Hz UL 25 kA 240 V AC 50/60 Hz UL |
| [Ue] rated operational voltage | 240 V AC 50/60 Hz UL |
| Network Frequency | 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV UL |
| Trip unit technology | Thermal-magnetic |
| Magnetic tripping current | 1800 A |
| Magnetic hold current | 1000 A |
| Continuous current rating | 80 % |
| Utilisation category | Category A |
| Mechanical durability | 1000 cycles loaded5000 cycles no load |
| Local signalling | 1 trip indicator green) |
| Mounting mode | I-Line bracket) |
| Mounting Support | Bracket |
| Electrical connection | I-Line connection, lineLugs, load |
| Mounting Height | 4.5 in (114.3 mm) |
| Tightening torque | 247.8 lbf.in (28 N.m) 0.04…0.2 in² (25…150 mm²) (4 AWG...300 kcmil) |
| Power wire stripping length | 0.9 in (22 mm) |
| Height | 6.47 in (164.34 mm) |
| Width | 4.5 in (114.3 mm) |
| Depth | 3.93 in (99.82 mm) |
| Phase connection | ABC |
| Circuit breaker application | HACR rated |
| Environment | |
| Standards | ULCSANEMANOM-003-SCFI-2000 |
| Product certifications | ULCSANOM |
| Ambient Air Temperature for Operation | 104…158 °F (40…70 °C) |
| Ordering and shipping details | |
| Category | US10DE201023 |
| Discount Schedule | 0DE2 |
| GTIN | 785901832904 |
| Returnability | No |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 5.687 in (14.445 cm) |
| Package 1 Width | 7.50 in (19.05 cm) |
| Package 1 Length | 12.313 in (31.275 cm) |
| Package weight(Lbs) | 6.669 lb(US) (3.025 kg) |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet
QDA32090
QDA32090
