Description
| Main | |
|---|---|
| Range | PowerPact |

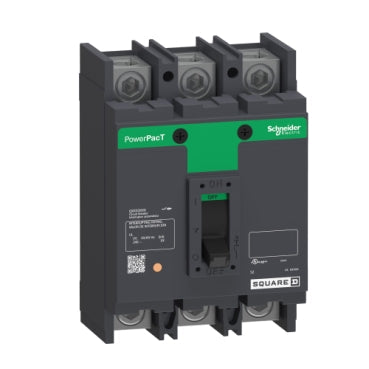

| Product name | PowerPact Q |
| Product or Component Type | Circuit breaker |
| Device Application | Distribution |
| Complementary | |
| Line Rated Current | 125 A |
| Number of Poles | 3P |
| Control Type | Operating handle |
| Breaking capacity code | D |
| Breaking capacity | 25 kA 120/208 V AC 50/60 Hz UL 25 kA 240 V AC 50/60 Hz UL |
| [Ue] rated operational voltage | 240 V AC 50/60 Hz UL |
| Network Frequency | 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV UL |
| Trip unit technology | Thermal-magnetic |
| Magnetic tripping current | 2400 A |
| Magnetic hold current | 1200 A |
| Continuous current rating | 80 % |
| Utilisation category | Category A |
| Mechanical durability | 1000 cycles loaded5000 cycles no load |
| Local signalling | 1 trip indicator green) |
| Mounting mode | Unit mount lug) |
| Mounting Support | Lug |
| Electrical connection | Terminal nut, lineLugs, load |
| Tightening torque | 247.8 lbf.in (28 N.m) 0.04…0.2 in² (25…150 mm²) (4 AWG...300 kcmil) |
| Power wire stripping length | 0.9 in (22 mm) |
| Height | 6.47 in (164.34 mm) |
| Width | 4.5 in (114.3 mm) |
| Depth | 3.93 in (99.82 mm) |
| Circuit breaker application | HACR rated |
| Environment | |
| Standards | ULCSANEMANOM-003-SCFI-2000 |
| Product certifications | ULCSANOM |
| Ambient Air Temperature for Operation | 104…158 °F (40…70 °C) |
| Ordering and shipping details | |
| Category | US1DE2A00024 |
| Discount Schedule | DE2A |
| GTIN | 785901946885 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 6.1 in (15.5 cm) |
| Package 1 Width | 6.2 in (15.7 cm) |
| Package 1 Length | 9.7 in (24.6 cm) |
| Package weight(Lbs) | 4.61 lb(US) (2.09 kg) |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet
QDP32125TM
QDP32125TM
