Description
GENERAL
| Application | Substation |

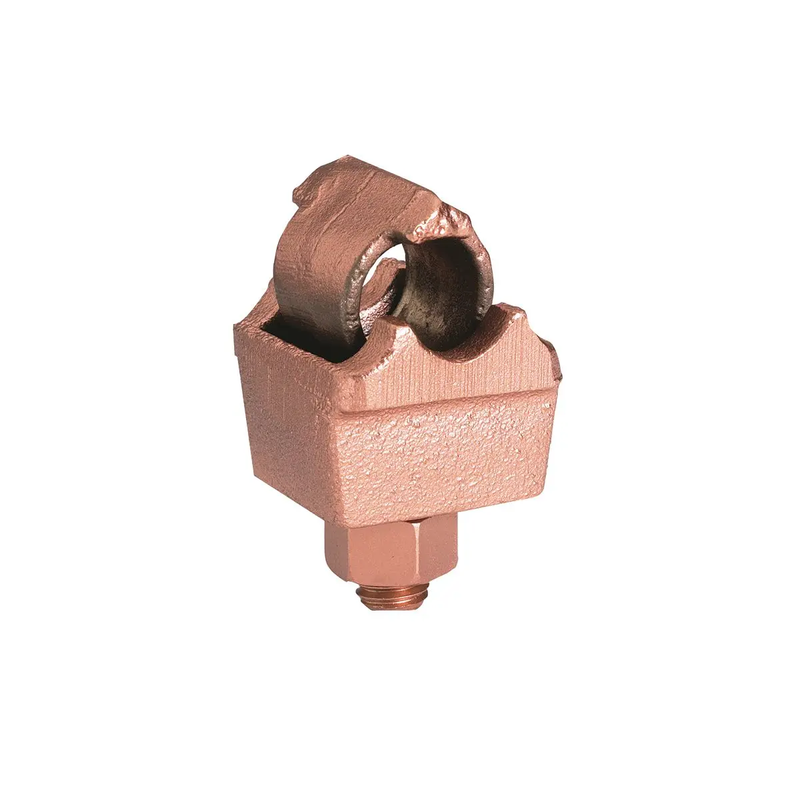

| Catalog Number | QGFL34B1 |
| Connector Type | Bus Bar Clamp and Accessories |
| Material | Copper Alloy |
| Material - Hardware | DURIUM™ Silicon Bronze |
| Plated | No |
| Plating Type | Unplated |
| Product Type | Mechanical |
| Sub Brand | BARTAP |
| Trade Name | BARTAP™ |
| Type | QGFL |
| UPC | 781810325155 |
| UPC 14 Digit GTIN | 00781810325155 |
DIMENSIONS
| Dimension - B Length fraction | 2 in |
| Dimension - B Length inch | 2.00 in |
| Dimension - Height fraction | 3-1/8 in |
| Dimension - Height inch | 3.13 in |
| Dimension - Height mm | 79.5 mm |
| Dimension - Width fraction | 1-3/4 in |
| Dimension - Width inch | 1.75 in |
| Dimension - Width mm | 44 mm |
| Package Height | 4.5 in |
| Package Length | 6.13 in |
| Package Weight | 11.04 lb |
| Package Width | 4.56 in |
CONDUCTOR RELATED
| Conductor - Copper Solid Size | 1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG |
| Conductor - Copper Solid Size Range | 1/0 AWG-4/0 AWG |
| Conductor - Copper Str Size | 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil |
| Conductor - Copper Str Size Range | 1/0 -500 kcmil |
| Conductor Type | CU C Str-Size CU C Solid-Size |
CERTIFICATIONS AND COMPLIANCE
| Certification - CSA Approved | No |
| Certification - cULus | No |
| Certification - ETL | No |
| Certification - UL Listed Direct Burial | Yes |
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | EX |
| UL Listed | No |
CONFIGURATION
| Connector Type | Bus Bar Clamp and Accessories |
LOGISTICS
| Carton Quantity | 12 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 1920 |
