Description

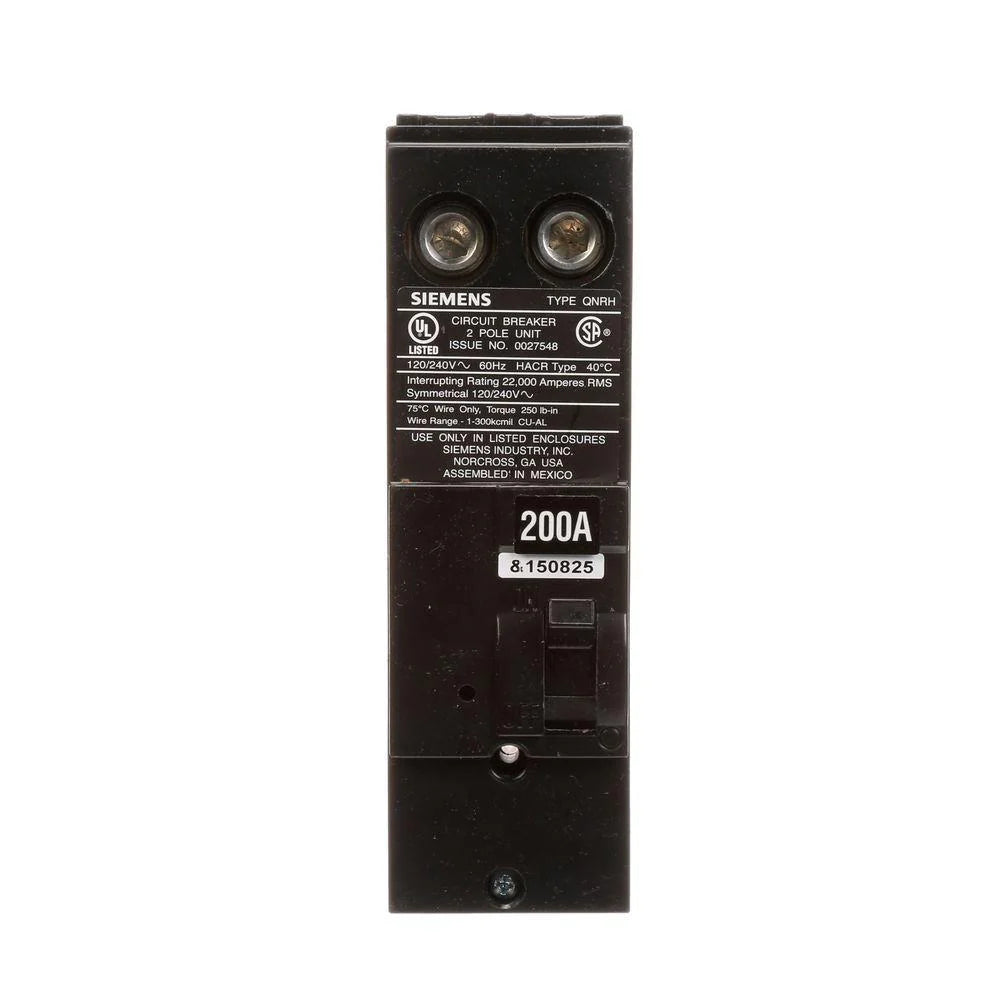

QN2200RH - Siemens - 200 Amp 2-Pole 240 Volt Motor Starter
The Siemens QN2200RH is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 200 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 22kAIC@240V. The QN2200RH has a panel mounting type and includes long time and instantaneous trip functions.
TECHNICAL SPECIFICATIONS
Product related
| Article number | US2:QN2200RH |
| MFN | QN2200RH |
| UPC | 783643204263 |
| Commodity Code | 8536200020 |
Pricing related
| Price Group | V3J |
Delivery related
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard delivery time | 18 Day/Days |
| Packaging dimensions (L x W x H) | 7.48 x 2.36 x 3.94 inch |
| Net weight | 2.601 lb |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Dangerous goods | No |
Environment related
| WEEE (2012/19/EU) Take-Back Obligations | No |
| Compliance with the substance restrictions according to RoHS directive | not available |
| SCIP Number | not available |
Siemens specific
| Product Group | 5200 |
| Catalog ID | LV10.1 |
| Group Code | P320 |
| Country of origin | Mexico |
| Returnable Status | Yes |
PRODUCT DATASHEET
