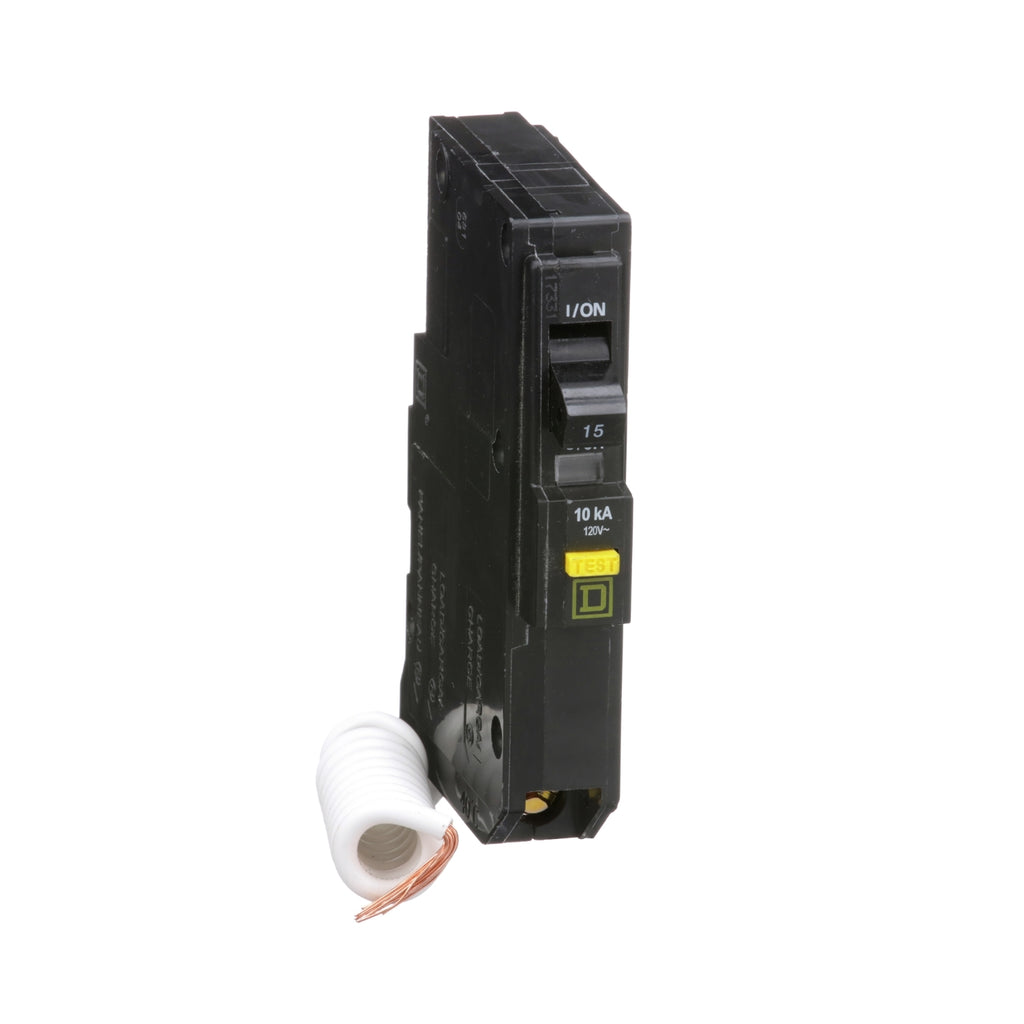

QO115GFI - Schneider Electric - Plug-In 15 Amp 1 Pole 120 Volt Square D Circuit Breaker
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 15A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
GENERAL SPECIFICATIONS
| Product | Miniature circuit-breaker |
| Range | QO |
| Current Rating | 15 A |
| Voltage Rating | 120 V AC |
| Mounting Type | Plug-in |
| Number of Poles | 1P |
| Circuit Breaker Type | Ground fault protecting class A 6 mA |
| Ratings | Not rated |
| Electrical Connection | Pressure plate |
| Complementary | |
| Interrupt Rating | 10 kA 120 V AC |
| Number of Panel Spaces | 1 |
| Wire Size | AWG 14...AWG 8 copper |
| AWG 12...AWG 8 aluminium | |
| Tightening Torque | 35.4 lbf.in (4 N.m) |
| 40.7 lbf.in (4.6 N.m) 0.006…0.03 in² (4…20 mm²) (AWG 12...AWG 4) | |
| Height | 4.1 in (105 mm) |
| Width | 0.7 in (19 mm) |
| Depth | 2.9 in (74 mm) |
| Net Weight | 0.500 lb(US) (0.227 kg) |
| Environment | |
| Certifications | UL Listed |
| CSA | |
| Ambient Rating | 104 °F (40 °C) |
| Ordering and shipping details | |
| Category | US1DE2A00003 |
| Discount Schedule | DE2A |
| GTIN | 785901255062 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 4.00 in (10.16 cm) |
| Package 1 Width | 1.40 in (3.56 cm) |
| Package 1 Length | 5.40 in (13.72 cm) |
| Package weight(Lbs) | 8.16 oz (231.34 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 38 |
| Package 2 Height | 4.300 in (10.922 cm) |
| Package 2 Width | 14.100 in (35.814 cm) |
| Package 2 Length | 20.900 in (53.086 cm) |
| Package 2 Weight | 20.399 lb(US) (9.253 kg) |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 1824 |
| Package 3 Height | 40.0 in (101.6 cm) |
| Package 3 Width | 40.0 in (101.6 cm) |
| Package 3 Length | 48.00 in (121.92 cm) |
| Package 3 Weight | 986.0006 lb(US) (447.242 kg) |
| Compliance | |
| Compliance | TAA Compliant |
PRODUCT DATASHEET
Schneider Electric_Square-D-QO-and-QOB-Miniature-Circuit-Breakers_QO115GFI
