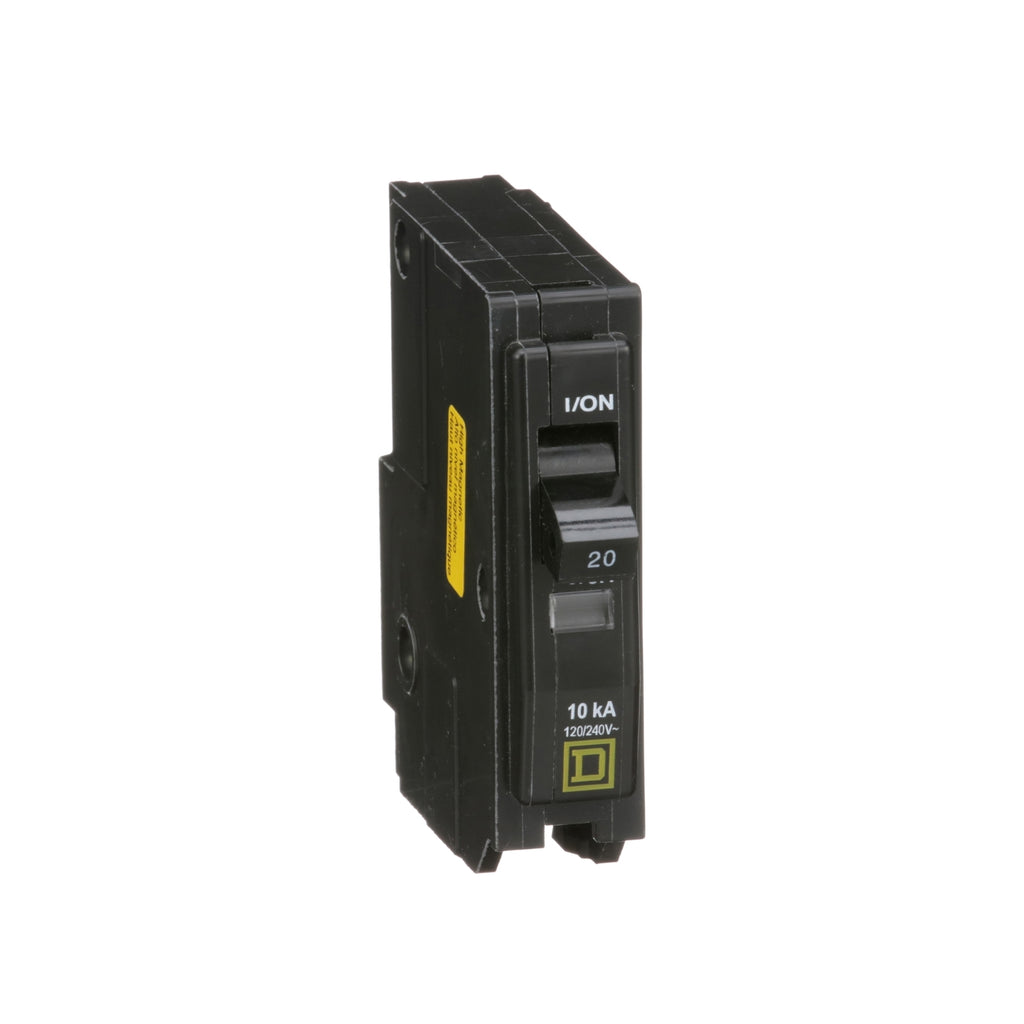

QO120HM - Schneider Electric - Plug-In 20 Amp 1 Pole 120 Volt Square D Circuit Breaker
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 20A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. This product has a high magnetic feature. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
GENERAL SPECIFICATIONS
| Product | Miniature circuit-breaker |
| Range | QO |
| Current Rating | 20 A |
| Voltage Rating | 120 V AC |
| Mounting Type | Plug-in |
| Number of Poles | 1P |
| Circuit Breaker Type | High magnetic |
| Ratings | HACR and Switching Duty rated |
| Electrical Connection | Pressure plate |
| Complementary | |
| Interrupt Rating | 10 kA 120 V AC |
| Number of Panel Spaces | 1 |
| Wire Size | AWG 14...AWG 8 copper or aluminium |
| Tightening Torque | 35.4 lbf.in (4 N.m) |
| Height | 3.0 in (76 mm) |
| Width | 0.7 in (19 mm) |
| Depth | 2.9 in (74 mm) |
| Net Weight | 0.269 lb(US) (0.122 kg) |
| Environment | |
| Certifications | UL Listed |
| CSA | |
| Ambient Rating | 104 °F (40 °C) |
| Ordering and shipping details | |
| Category | US1DE2A00004 |
| Discount Schedule | DE2A |
| GTIN | 7.85901E+11 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 0.700 in (1.778 cm) |
| Package 1 Width | 2.700 in (6.858 cm) |
| Package 1 Length | 3.000 in (7.620 cm) |
| Package weight(Lbs) | 4.320 oz (122.470 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3.300 in (8.382 cm) |
| Package 2 Width | 3.000 in (7.620 cm) |
| Package 2 Length | 7.700 in (19.558 cm) |
| Package 2 Weight | 2.780 lb(US) (1.261 kg) |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 100 |
| Package 3 Height | 8.100 in (20.574 cm) |
| Package 3 Width | 6.700 in (17.018 cm) |
| Package 3 Length | 17.500 in (44.450 cm) |
| Package 3 Weight | 28.389 lb(US) (12.877 kg) |
