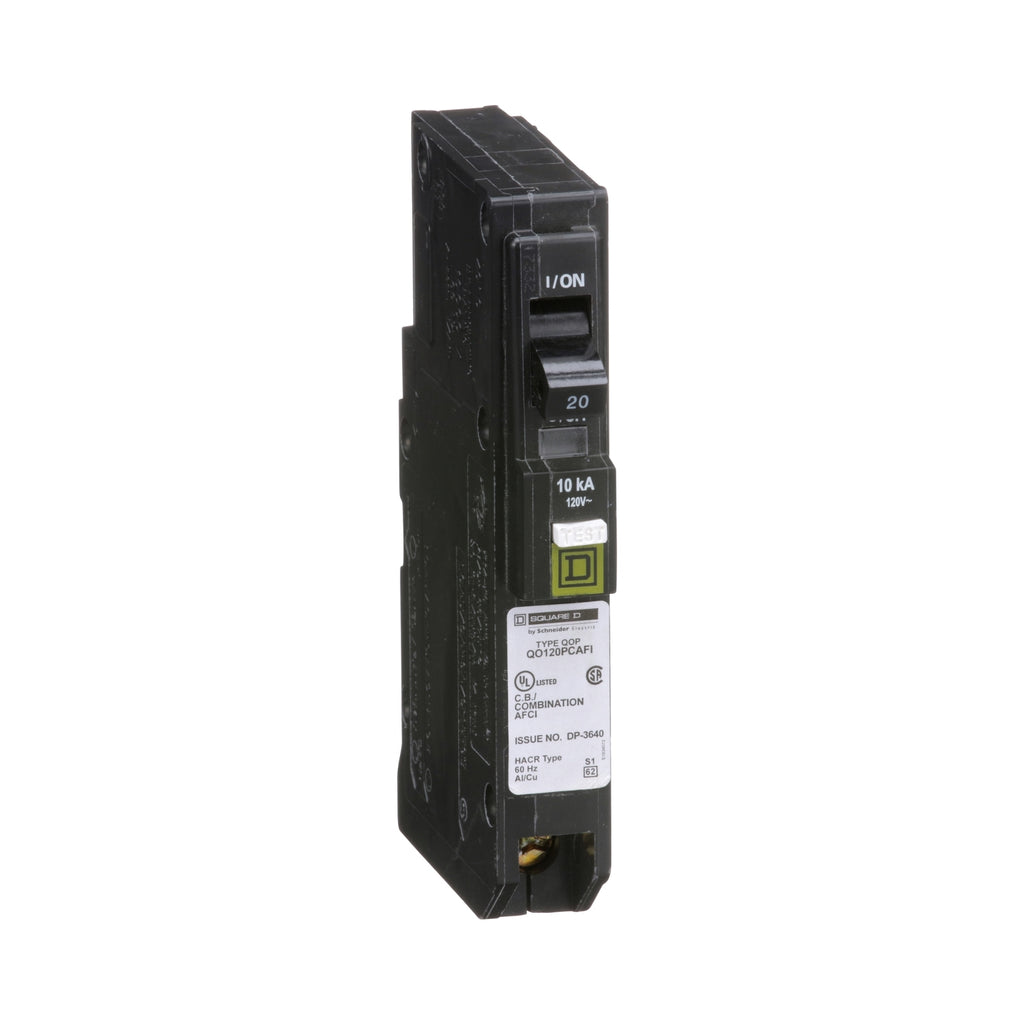

QO120PCAFI - Schneider Electric - Plug-In 20 Amp 1 Pole 120 Volt Square D AFCI Circuit Breaker
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 20A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a combination arc fault with plug on neutral. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
GENERAL SPECIFICATIONS
| Product | Miniature circuit-breaker |
| Range | QO |
| Current Rating | 20 A |
| Voltage Rating | 120 V AC |
| Mounting Type | Plug-in |
| Number of Poles | 1P |
| Circuit Breaker Type | Combination ARC-fault |
| Ratings | HACR rated |
| Electrical Connection | Pressure plate |
| Connections Terminals | Plug-on neutral |
| Complementary | |
| Interrupt Rating | 10 kA 120 V AC |
| Number of Panel Spaces | 1 |
| Wire Size | AWG 14...AWG 8 copper |
| AWG 12...AWG 8 aluminium | |
| Tightening Torque | 35.4 lbf.in (4 N.m) |
| Height | 4.8 in (121 mm) |
| Width | 0.7 in (19 mm) |
| Depth | 2.9 in (74 mm) |
| Product Weight | 0.549 lb(US) (0.249 kg) |
| Environment | |
| Certifications | UL Listed |
| CSA | |
| Ambient Rating | 104 °F (40 °C) |
| Ordering and shipping details | |
| Category | US1DE2A06303 |
| Discount Schedule | DE2A |
| GTIN | 785901737186 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 4.00 in (10.16 cm) |
| Package 1 Width | 4.00 in (10.16 cm) |
| Package 1 Length | 1.00 in (2.54 cm) |
| Package weight(Lbs) | 8.160 oz (231.332 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 52 |
| Package 2 Height | 4.00 in (10.16 cm) |
| Package 2 Width | 13.600 in (34.544 cm) |
| Package 2 Length | 20.800 in (52.832 cm) |
| Package 2 Weight | 26.550 lb(US) (12.043 kg) |
| Compliance | |
| Compliance | TAA Compliant |
PRODUCT DATASHEET
Schneider Electric_Square-D-QO-and-QOB-Miniature-Circuit-Breakers_QO120PCAFI
