QO124L125PG - Schneider Electric - Load Center 125 Amp Ground Bar

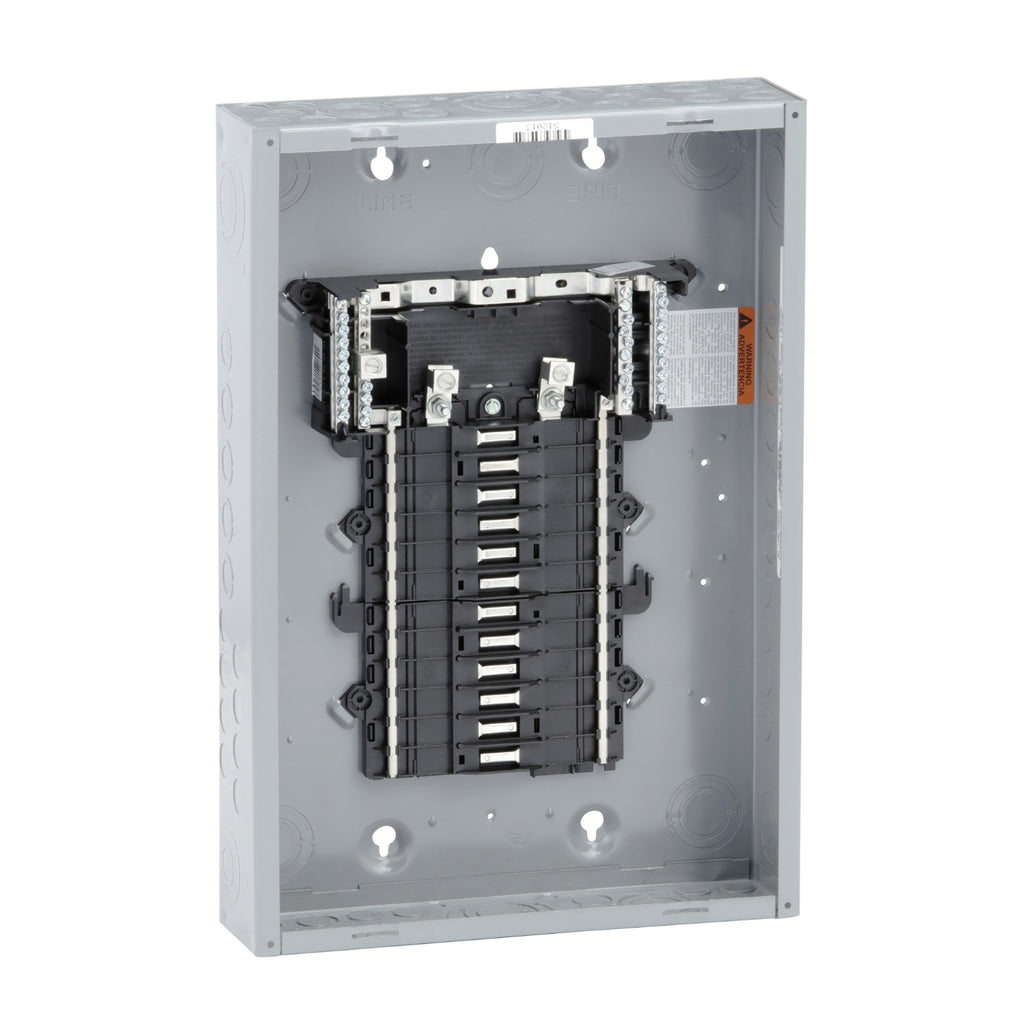

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 24 spaces and 34 circuits. This system provides 125A convertible main lugs in a NEMA 1 enclosure. It also includes plug on neutral, ground bar, and is UL rated.
GENERAL SPECIFICATIONS
Main
| Marketing Trade Name |
QO |
| Product Type |
Load Center |
| Cover Type |
Order separately |
Complementary
| Tightening Torque |
Main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper
Cover 20 lb.in |
| PoN Convertible Mains (lugs) |
PoN Convertible Mains (lugs) |
| Rated Current |
125 A |
| Number of Spaces |
24 |
| Max Short Circuit Current Rating |
65 kA |
| Maximum Number of Single Pole Circuits |
34 |
| Maximum Number of Tandem Breakers |
10 |
| Number of Phases |
1 phase 3 wires |
| Voltage Rating |
120/240 V AC |
| Wire Size |
AWG 6...AWG 2/0 aluminium/copper |
| Ground Bar |
Grounding bar included (not installed) |
| Electrical Connection |
Lugs |
| Busbar Material |
Tin plated copper: busbar |
| Enclosure Material |
Welded sheet steel |
| Surface Finish |
Baked enamel Gray |
| Box Number |
7 |
| Height |
20.9 in (531 mm) |
| Width |
14.3 in (362 mm) |
Environment
| Enclosure Rating |
NEMA 1 indoor enclosure |
| Ambient Air Temperature for Operation |
23 °F (-5 °C)
104 °F (40 °C) |
| Product Certifications |
UL Listed |
Ordering and shipping details
| Category |
US1DE3A10003 |
| Discount Schedule |
DE3A |
| GTIN |
785901133865 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
4.30 in (10.922 cm) |
| Package 1 Width |
14.70 in (37.338 cm) |
| Package 1 Length |
22.00 in (55.880 cm) |
| Package 1 Weight |
12.851 lb(US) (5.829 kg) |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
45 |
| Package 2 Height |
40.00 in (101.600 cm) |
| Package 2 Width |
42.00 in (106.680 cm) |
| Package 2 Length |
48.00 in (121.920 cm) |
| Package 2 Weight |
600.000 lb(US) (272.155 kg) |
