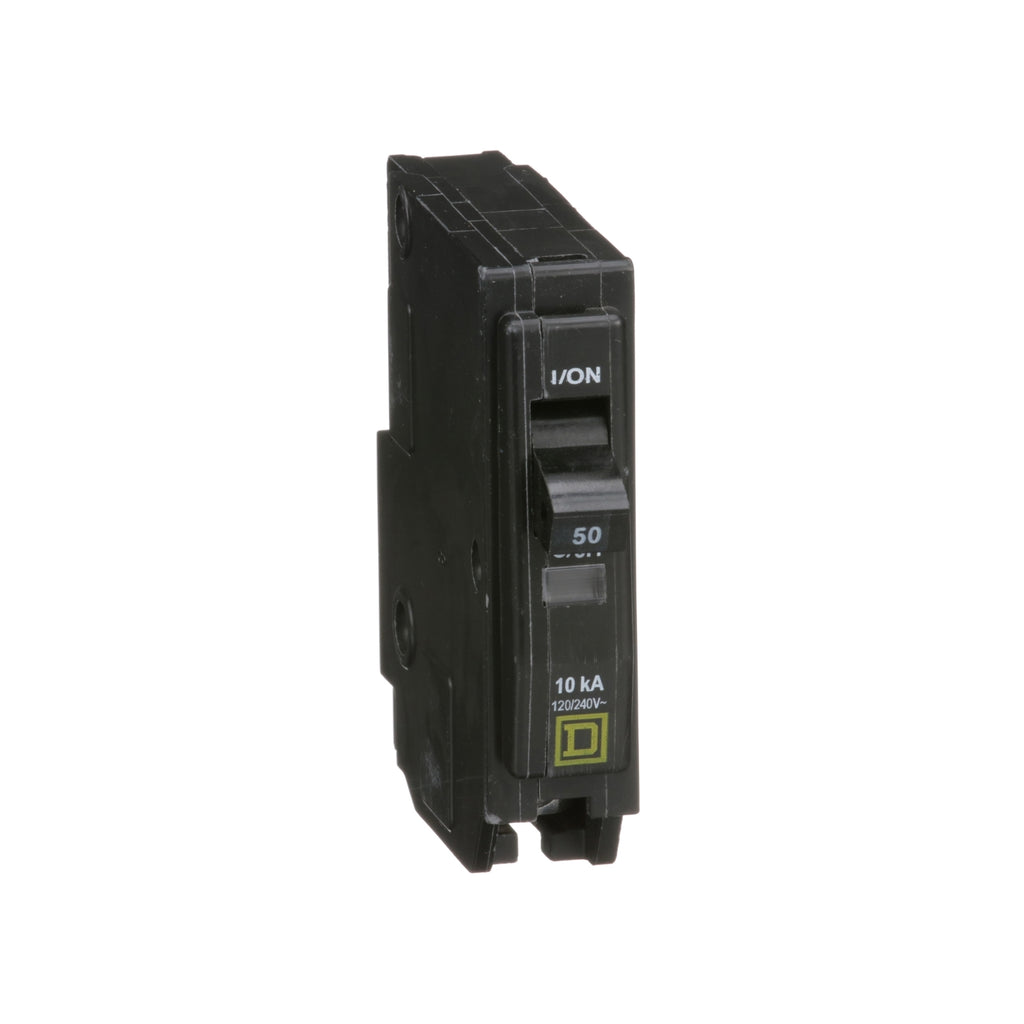

QO150 - Schneider Electric - Plug-In 50 Amp 1 Pole 120 Volt Square D Circuit Breaker
Roll over image to zoom in Click on image to zoom
QO150 - Schneider Electric - Plug-In 50 Amp 1 Pole 120 Volt Square D Circuit Breaker

QO150 - Schneider Electric - Plug-In 50 Amp 1 Pole 120 Volt Square D Circuit Breaker

Square DSKU: SQDQO150
Price:
$10.77
Stock:
Sold out

Description

QO150 - Schneider Electric - Plug-In 50 Amp 1 Pole 120 Volt Square D Circuit Breaker

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 50A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

GENERAL SPECIFICATIONS

Main
Product Miniature circuit-breaker
Range QO
Current Rating 50 A
Voltage Rating 120/240 V AC
120 V AC
Mounting Type Plug-in
Number of Poles 1P
Circuit Breaker Type Standard
Ratings HACR rated
Electrical Connection Box lugs
Complementary
Interrupt Rating 10 kA 120/240 V AC
10 kA 120 V AC
Number of Panel Spaces 1
Wire Size AWG 8...AWG 2 copper or aluminium
Tightening Torque 44.3 lbf.in (5 N.m)
Height 3.1 in (79 mm)
Width 0.7 in (19 mm)
Depth 2.9 in (74 mm)
Net Weight 0.280 lb(US) (0.127 kg)
Environment
Certifications UL Listed
CSA
Ambient Rating 104 °F (40 °C)
Ordering and shipping details
Category US1DE2A00104
Discount Schedule DE2A
GTIN 785901400226
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 3.200 in (8.128 cm)
Package 1 Width 0.700 in (1.778 cm)
Package 1 Length 3.300 in (8.382 cm)
Package weight(Lbs) 4.480 oz (127.006 g)
Unit Type of Package 2 BB1
Number of Units in Package 2 10
Package 2 Height 4.000 in (10.160 cm)
Package 2 Width 4.000 in (10.160 cm)
Package 2 Length 7.600 in (19.304 cm)
Package 2 Weight 2.961 lb(US) (1.343 kg)
Unit Type of Package 3 CAR
Number of Units in Package 3 40
Package 3 Height 8.700 in (22.098 cm)
Package 3 Width 7.400 in (18.796 cm)
Package 3 Length 7.600 in (19.304 cm)
Package 3 Weight 12.011 lb(US) (5.448 kg)



PRODUCT DATASHEET

Schneider Electric_Square-D-QO-and-QOB-Miniature-Circuit-Breakers_QO150
