Description
| Main | |
|---|---|

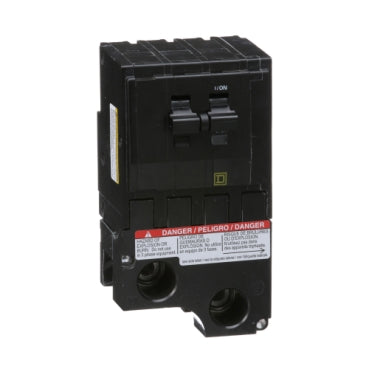

| Product | Miniature circuit-breaker |
| Range | QO |
| Current Rating | 175 A |
| Voltage Rating | 120/240 V AC120 V AC |
| Mounting Type | Plug-in |
| Number of Poles | 2P |
| Circuit Breaker Type | Standard |
| Ratings | Not rated |
| Electrical Connection | Pressure plate |
| Complementary | |
| Interrupt Rating | 22 kA 120/240 V AC 22 kA 120 V AC |
| Number of Panel Spaces | 4 |
| Wire Size | 1 AWG...300 kcmil copper or aluminium |
| Tightening Torque | 250.5 lbf.in (28.3 N.m) |
| Height | 3.5 in (89 mm) |
| Width | 1.5 in (38 mm) |
| Depth | 2.9 in (74 mm) |
| Product Weight | 2.500 lb(US) (1.134 kg) |
| Environment | |
| Certifications | UL ListedCSA |
| Ambient Rating | 104 °F (40 °C) |
| Ordering and shipping details | |
| Category | US1DE2A00083 |
| Discount Schedule | DE2A |
| GTIN | 785901501299 |
| Returnability | No |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 3.5 in (8.9 cm) |
| Package 1 Width | 1.5 in (3.8 cm) |
| Package 1 Length | 2.9 in (7.4 cm) |
| Package weight(Lbs) | 2.500 lb(US) (1.134 kg) |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet
QO2175VH
QO2175VH
