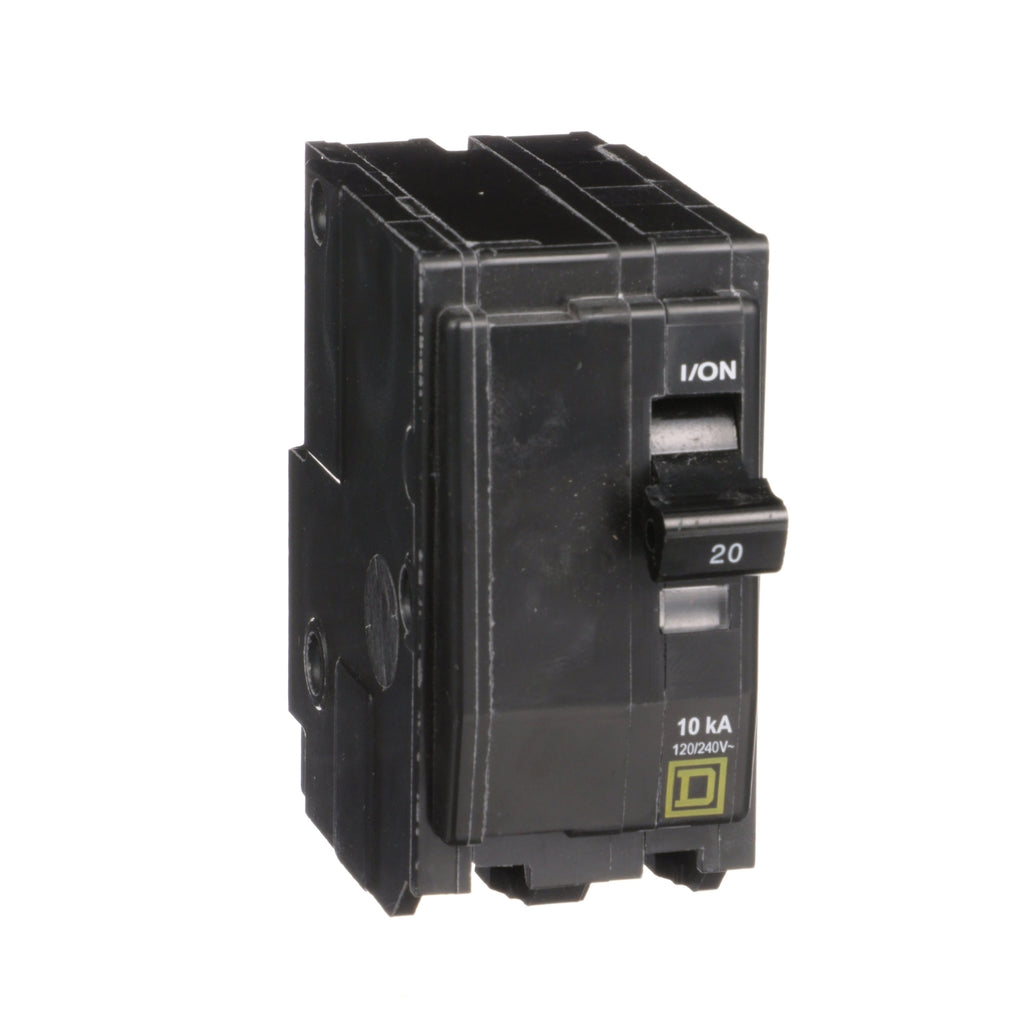

QO220 - Schneider Electric - Plug-In 20 Amp 2 Pole 240 Volt Square D Circuit Breaker
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
GENERAL SPECIFICATIONS
| Main | |
| Product | Miniature circuit-breaker |
| Range | QO |
| Current Rating | 20 A |
| Voltage Rating | 120/240 V AC |
| 120 V AC | |
| Mounting Type | Plug-in |
| Number of Poles | 2P |
| Circuit Breaker Type | Standard |
| Ratings | HACR rated |
| Electrical Connection | Pressure plate |
| Complementary | |
| Interrupt Rating | 10 kA 120/240 V AC |
| 10 kA 120 V AC | |
| Number of Panel Spaces | 2 |
| Wire Size | AWG 14...AWG 8 copper or aluminium |
| Tightening Torque | 35.4 lbf.in (4 N.m) |
| Height | 3.0 in (76 mm) |
| Width | 1.5 in (38 mm) |
| Depth | 2.9 in (74 mm) |
| Net Weight | 0.500 lb(US) (0.227 kg) |
| Environment | |
| Certifications | UL Listed |
| CSA | |
| Ambient Rating | 104 °F (40 °C) |
| Ordering and shipping details | |
| Category | US1DE2A00004 |
| Discount Schedule | DE2A |
| GTIN | 785901400363 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.50 in (3.81 cm) |
| Package 1 Width | 3.300 in (8.382 cm) |
| Package 1 Length | 3.00 in (7.62 cm) |
| Package weight(Lbs) | 8.007 oz (227 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 3.50 in (8.89 cm) |
| Package 2 Width | 2.700 in (6.858 cm) |
| Package 2 Length | 8.00 in (20.32 cm) |
| Package 2 Weight | 2.749 lb(US) (1.247 kg) |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 50 |
| Package 3 Height | 8.400 in (21.336 cm) |
| Package 3 Width | 7.300 in (18.542 cm) |
| Package 3 Length | 17.300 in (43.942 cm) |
| Package 3 Weight | 28.0009 lb(US) (12.701 kg) |
