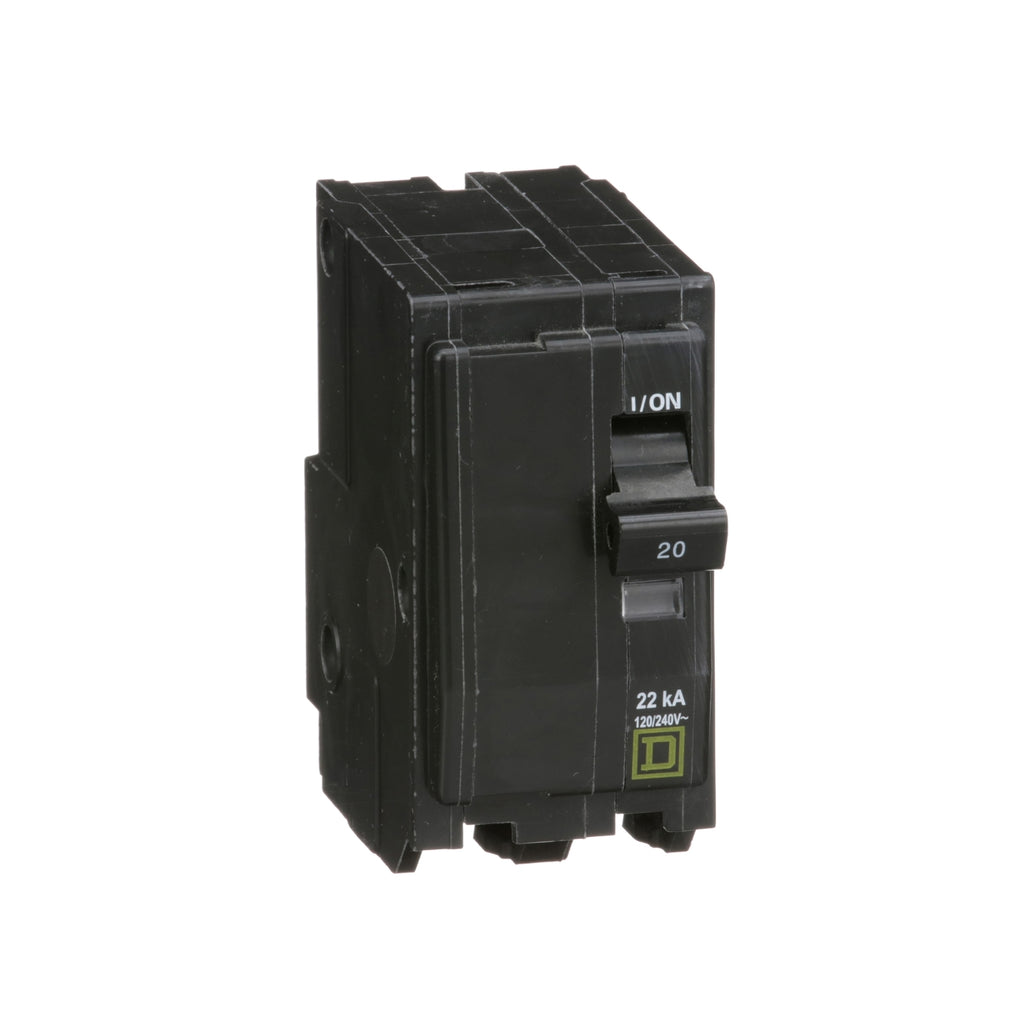

QO220VH - Schneider Electric - Plug-In 20 Amp 2 Pole 120 Volt Square D Molded Case Circuit Breaker
Roll over image to zoom in Click on image to zoom
QO220VH - Schneider Electric - Plug-In 20 Amp 2 Pole 120 Volt Square D Molded Case Circuit Breaker

QO220VH - Schneider Electric - Plug-In 20 Amp 2 Pole 120 Volt Square D Molded Case Circuit Breaker

Square DSKU: SQDQO220VH
Price:
$82.00
Stock:
Sold out

Description

QO220VH - Schneider Electric - Plug-In 20 Amp 2 Pole 120 Volt Square D Molded Case Circuit Breaker

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 22kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

GENERAL SPECIFICATIONS

Main
Product Miniature circuit-breaker
Range QO
Current Rating 20 A
Voltage Rating 120/240 V AC
120 V AC
Mounting Type Plug-in
Number of Poles 2P
Circuit Breaker Type Standard
Ratings HACR rated
Electrical Connection Pressure plate
Complementary
Interrupt Rating 22 kA 120/240 V AC
22 kA 120 V AC
Number of Panel Spaces 2
Wire Size AWG 14...AWG 8 copper or aluminium
Tightening Torque 40.7 lbf.in (4.6 N.m)
Height 3.0 in (76 mm)
Width 1.5 in (38 mm)
Depth 2.9 in (74 mm)
Net Weight 0.549 lb(US) (0.249 kg)
Environment
Certifications UL Listed
CSA
Ambient Rating 104 °F (40 °C)
Ordering and shipping details
Category US1DE2A00926
Discount Schedule DE2A
GTIN 785901371823
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 1.500 in (3.810 cm)
Package 1 Width 3.500 in (8.890 cm)
Package 1 Length 3.500 in (8.890 cm)
Package weight(Lbs) 8.816 oz (249.929 g)
Unit Type of Package 2 CAR
Number of Units in Package 2 43
Package 2 Height 3.600 in (9.144 cm)
Package 2 Width 13.100 in (33.274 cm)
Package 2 Length 20.500 in (52.070 cm)
Package 2 Weight 25.020 lb(US) (11.349 kg)


PRODUCT DATASHEET

Schneider Electric_Square-D-QO-and-QOB-Miniature-Circuit-Breakers_QO220VH
