Description
| Main | |
|---|---|

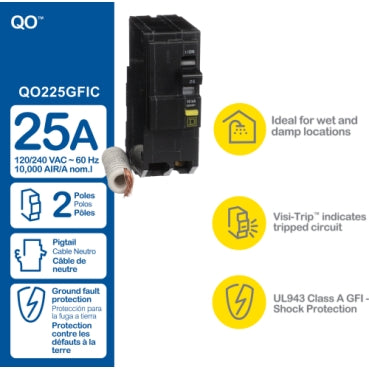

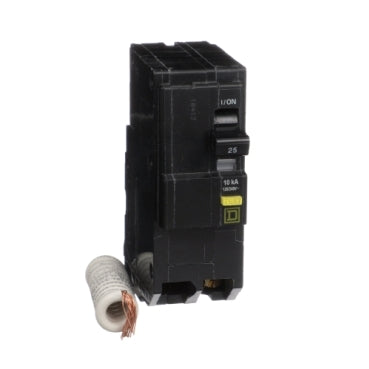

| Product | Miniature circuit-breaker |
| Range | QO |
| Current Rating | 25 A |
| Voltage Rating | 120/240 V AC120 V AC |
| Mounting Type | Plug-in |
| Number of Poles | 2P |
| Circuit Breaker Type | Ground fault protecting class A 6 mA |
| Ratings | Not rated |
| Electrical Connection | Pressure plate |
| Complementary | |
| Interrupt Rating | 10 kA 120/240 V AC 10 kA 120 V AC |
| Number of Panel Spaces | 2 |
| Wire Size | 14 AWG...8 AWG copper12 AWG...8 AWG aluminium |
| Tightening Torque | 35.4 lbf.in (4 N.m)40.7 lbf.in (4.6 N.m) 0.006…0.03 in² (4…20 mm²) (12 AWG...4 AWG) |
| Height | 4.1 in (105 mm) |
| Width | 1.5 in (38 mm) |
| Depth | 2.9 in (74 mm) |
| Product Weight | 0.939 lb(US) (0.426 kg) |
| Environment | |
| Certifications | UL ListedCSA |
| Ambient Rating | 104 °F (40 °C) |
| Ordering and shipping details | |
| Category | US1DE2A00003 |
| Discount Schedule | DE2A |
| GTIN | 785901562962 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.300 in (5.842 cm) |
| Package 1 Width | 3.800 in (9.652 cm) |
| Package 1 Length | 5.300 in (13.462 cm) |
| Package weight(Lbs) | 15.200 oz (430.912 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 33 |
| Package 2 Height | 5.500 in (13.970 cm) |
| Package 2 Width | 14.400 in (36.576 cm) |
| Package 2 Length | 21.200 in (53.848 cm) |
| Package 2 Weight | 31.650 lb(US) (14.356 kg) |
| Compliance | |
| Compliance | TAA Compliant |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet
QO225GFI
QO225GFI
