Description

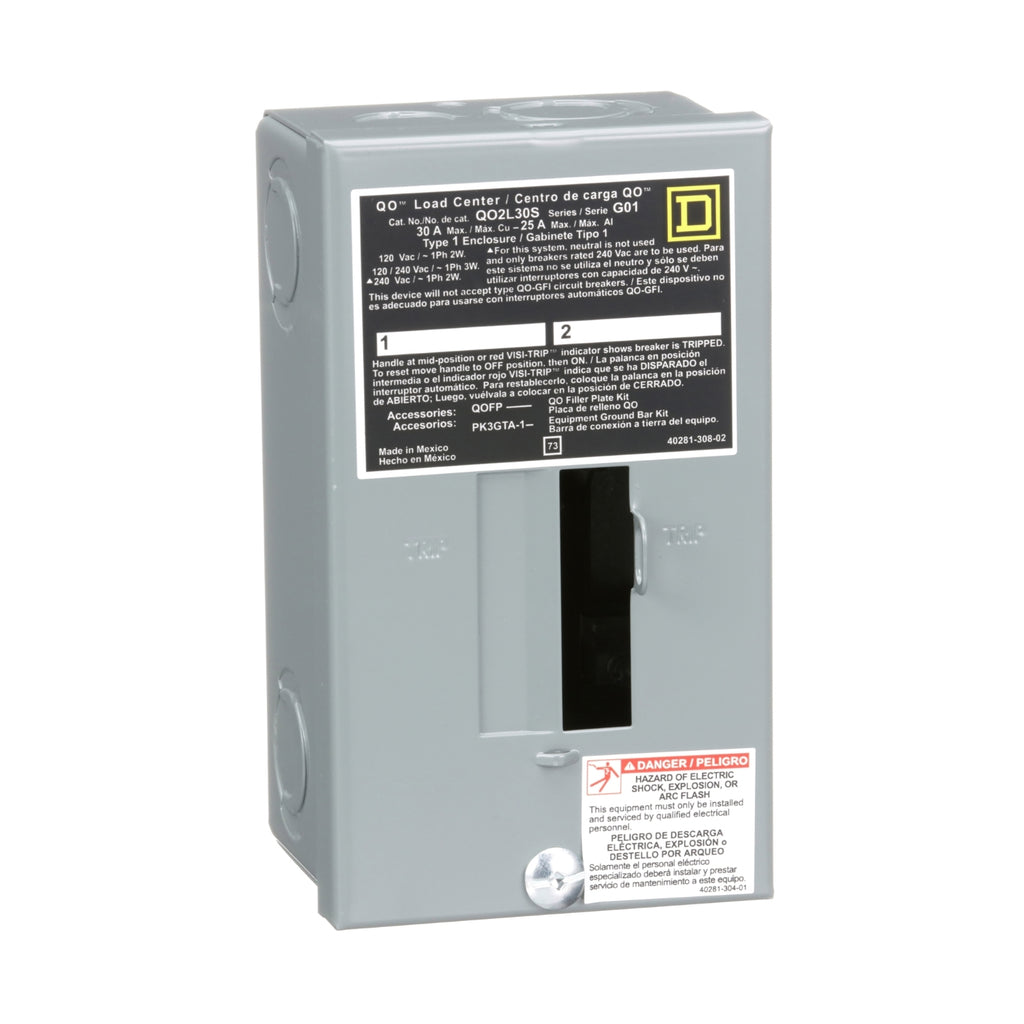

QO2L30S - Schneider Electric - Square D QO 2P 30A Breaker Panelboard Accessory
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 2 spaces and 2 circuits. This system provides 30A fixed main lugs in a NEMA 1 enclosure. It also includes a surface cover, and is UL rated.
GENERAL SPECIFICATIONS
| Marketing Trade Name | QO |
|---|---|
| Product Type | Load Center |
| Cover Type | Surface cover |
| Tightening Torque | Main lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper Main lugs 35 lb.in, AWG 12...AWG10, aluminium/copper |
|---|---|
| PoN Convertible Mains (lugs) | Fixed Mains (lugs) |
| Rated Current | 30 A |
| Number of Spaces | 2 |
| Max Short Circuit Current Rating | 10 kA |
| Maximum Number of Single Pole Circuits | 2 |
| Maximum Number of Tandem Breakers | 0 |
| Number of Phases | 1 phase 3 wires |
| Voltage Rating | 120/240 V AC |
| Wire Size | AWG 14...AWG 10 copper AWG 12...AWG10 aluminium |
| Ground Bar | Grounding bar (ordered separately) |
| Electrical Connection | Lugs |
| Busbar Material | Tin plated aluminium: busbar |
| Enclosure Material | Welded sheet steel |
| Surface Finish | Baked enamel Gray |
| Box Number | 1 |
| Height | 6.7 in (171 mm) |
| Width | 3.8 in (97 mm) |
| Enclosure Rating | NEMA 1 indoor enclosure |
|---|---|
| Ambient Air Temperature for Operation | 23 °F (-5 °C) 104 °F (40 °C) |
| Product Certifications | UL Listed |
| Category | US1DE3A00101 |
|---|---|
| Discount Schedule | DE3A |
| GTIN | 785901785071 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.10 in (10.414 cm) |
| Package 1 Width | 4.35 in (11.049 cm) |
| Package 1 Length | 7.60 in (19.304 cm) |
| Package 1 Weight | 33.599 oz (952.543 g) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 388 |
| Package 2 Height | 40.00 in (101.600 cm) |
| Package 2 Width | 40.00 in (101.600 cm) |
| Package 2 Length | 48.00 in (121.920 cm) |
| Package 2 Weight | 819.0003 lb(US) (371.492 kg) |
