QO612L100RB - Schneider Electric - Square D QO 6P 100A Breaker Load Center Surface Mount

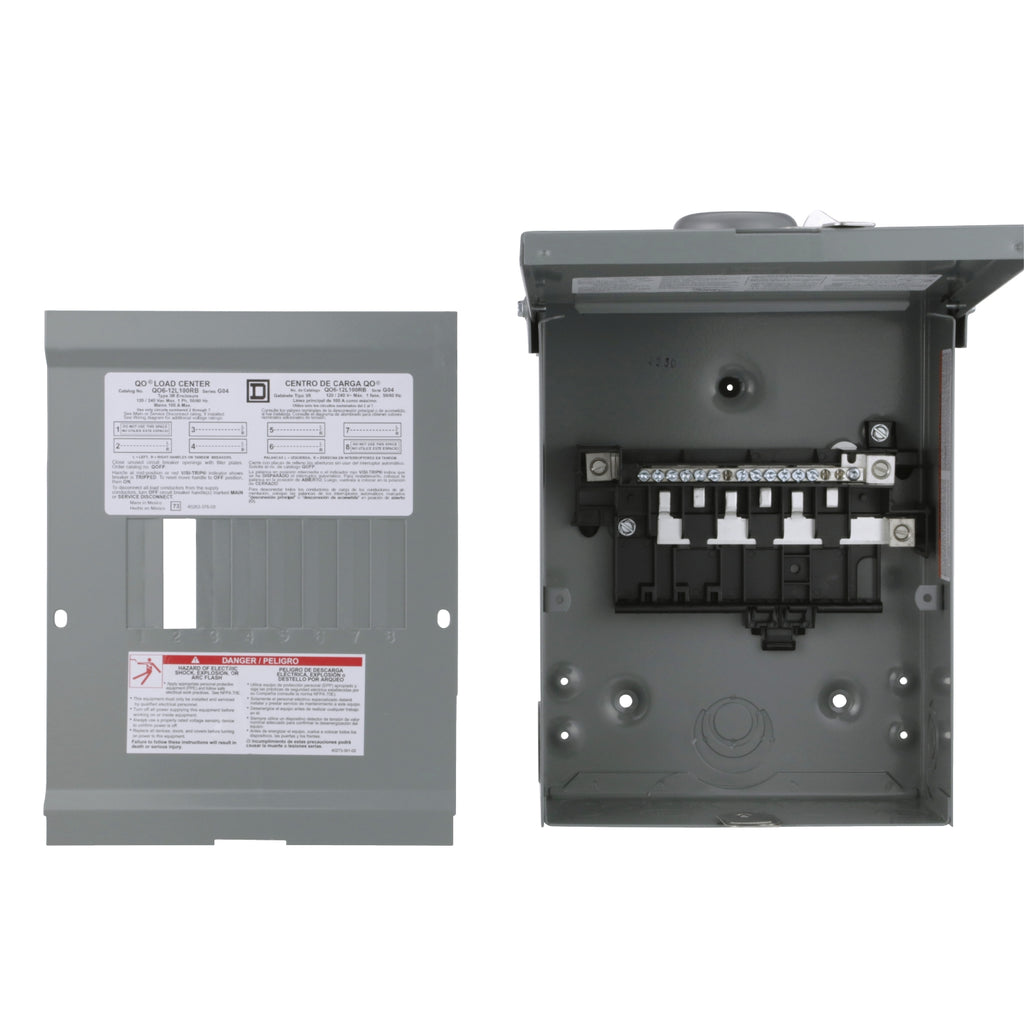

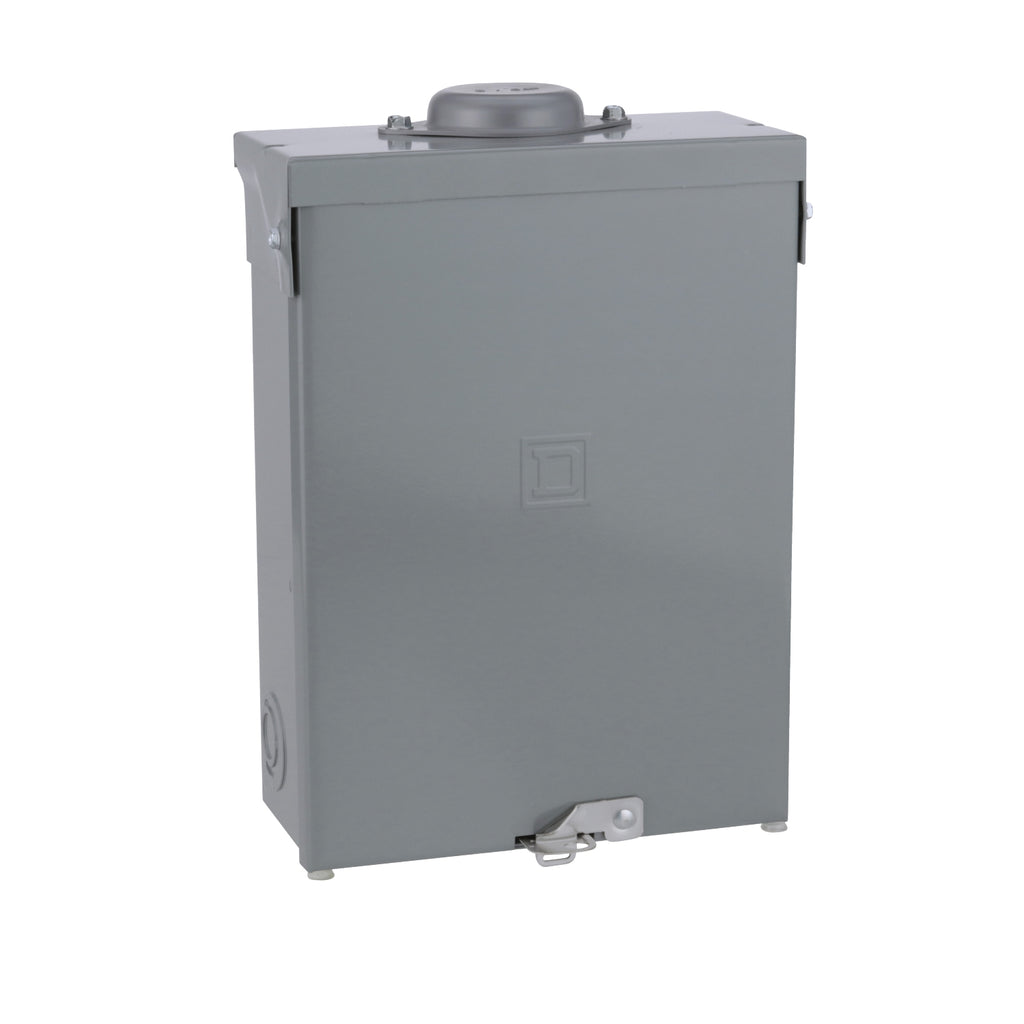

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 6 spaces and 12 circuits. This system provides 100A fixed main lugs in a NEMA 3R enclosure. This product is UL rated.
GENERAL SPECIFICATIONS
Main
| Marketing Trade Name |
QO |
| Product Type |
Load Center |
| Cover Type |
Surface cover |
Complementary
| Tightening Torque |
Main lugs 50 lb.in, AWG 8, aluminium/copper
Main lugs 50 lb.in, AWG 6...AWG 1/0, aluminium/copper |
| PoN Convertible Mains (lugs) |
Fixed Mains (lugs) |
| Rated Current |
100 A |
| Number of Spaces |
6 |
| Max Short Circuit Current Rating |
10 kA |
| Maximum Number of Single Pole Circuits |
12 |
| Maximum Number of Tandem Breakers |
6 |
| Number of Phases |
1 phase 3 wires |
| Voltage Rating |
120/240 V AC |
| Wire Size |
AWG 8...AWG 1 aluminium/copper |
| Ground Bar |
Grounding bar (ordered separately) |
| Electrical Connection |
Lugs |
| Busbar Material |
Tin plated aluminium: busbar |
| Enclosure Material |
Welded galvannealed steel |
| Surface Finish |
Baked enamel Gray |
| Box Number |
2R |
| Height |
12.6 in (321 mm) |
| Width |
8.9 in (226 mm) |
Environment
| Enclosure Rating |
NEMA 3R weatherproof enclosure |
| Ambient Air Temperature for Operation |
23 °F (-5 °C)
104 °F (40 °C) |
| Product Certifications |
UL Listed |
Ordering and shipping details
| Category |
US1DE3A00101 |
| Discount Schedule |
DE3A |
| GTIN |
785901785590 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
4.90 in (12.446 cm) |
| Package 1 Width |
10.30 in (26.162 cm) |
| Package 1 Length |
14.20 in (36.068 cm) |
| Package 1 Weight |
9.661 lb(US) (4.382 kg) |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
80 |
| Package 2 Height |
34.00 in (86.360 cm) |
| Package 2 Width |
42.00 in (106.680 cm) |
| Package 2 Length |
48.00 in (121.920 cm) |
| Package 2 Weight |
775.0004 lb(US) (351.534 kg) |
