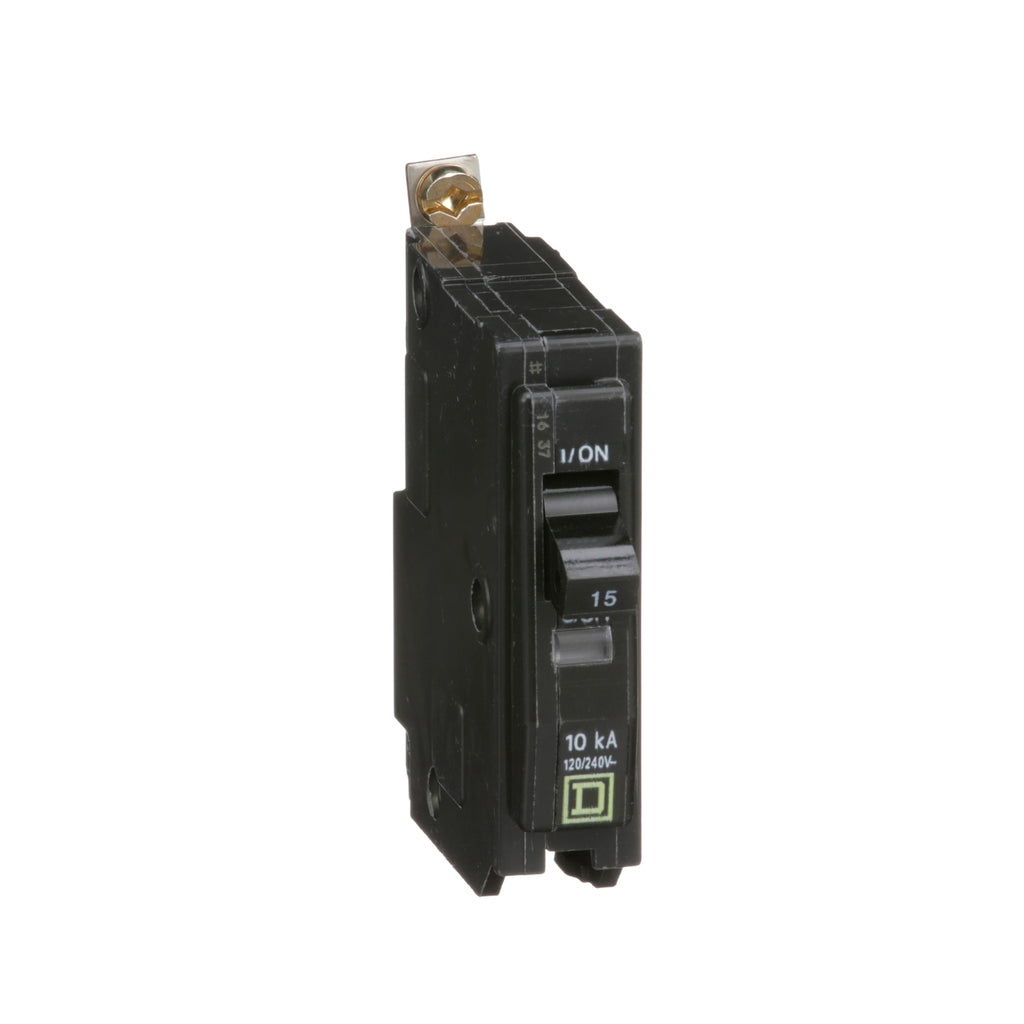

QOB115 - Schneider Electric - Bolt-On 15 Amp 1 Pole 120 Volt Square D Circuit Breaker
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 15A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
GENERAL SPECIFICATIONS
| Main | |
| Product | Miniature circuit-breaker |
| Range | QO |
| Current Rating | 15 A |
| Voltage Rating | 120/240 V AC |
| 120 V AC | |
| Mounting Type | Bolt-on |
| Number of Poles | 1P |
| Circuit Breaker Type | Standard |
| Ratings | HACR and Switching Duty rated |
| Electrical Connection | Pressure plate |
| Complementary | |
| Interrupt Rating | 10 kA 120/240 V AC |
| 10 kA 120 V AC | |
| Number of Panel Spaces | 1 |
| Wire Size | AWG 14...AWG 8 copper or aluminium |
| Tightening Torque | 35.4 lbf.in (4 N.m) |
| Height | 3.0 in (76 mm) |
| Width | 0.7 in (19 mm) |
| Depth | 2.9 in (74 mm) |
| Net Weight | 0.280 lb(US) (0.127 kg) |
| Environment | |
| Certifications | UL Listed |
| CSA | |
| Ambient Rating | 104 °F (40 °C) |
| Ordering and shipping details | |
| Category | US10DE200015 |
| Discount Schedule | 0DE2 |
| GTIN | 785901416708 |
| Returnability | Yes |
| Country of origin | US |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 3.300 in (8.382 cm) |
| Package 1 Width | 0.800 in (2.032 cm) |
| Package 1 Length | 3.400 in (8.636 cm) |
| Package weight(Lbs) | 4.5 oz (127.0 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3.300 in (8.382 cm) |
| Package 2 Width | 0.800 in (2.032 cm) |
| Package 2 Length | 7.800 in (19.812 cm) |
| Package 2 Weight | 2.851 lb(US) (1.293 kg) |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 100 |
| Package 3 Height | 8.00 in (20.32 cm) |
| Package 3 Width | 7.900 in (20.066 cm) |
| Package 3 Length | 17.100 in (43.434 cm) |
| Package 3 Weight | 29.050 lb(US) (13.177 kg) |
PRODUCT DATASHEET
Schneider Electric_Square-D-QO-and-QOB-Miniature-Circuit-Breakers_QOB115
