Description
| Main | |
|---|---|
| Product | Miniature circuit-breaker |
| Range | QO |
| Current Rating | 15 A |
| Voltage Rating | 120 V AC |
| Mounting Type | Bolt-on |
| Number of Poles | 1P |
| Circuit Breaker Type | Ground fault protecting class A 6 mA |
| Ratings | Not rated |
| Electrical Connection | Pressure plate |
| Complementary | |
| Interrupt Rating | 22 kA 120 V AC |
| Number of Panel Spaces | 1 |
| Wire Size | 14 AWG...8 AWG copper12 AWG...8 AWG aluminium |
| Tightening Torque | 40.7 lbf.in (4.6 N.m) 0.004…0.02 in² (2.5…10 mm²) (16 AWG...14 AWG)40.7 lbf.in (4.6 N.m) 0.006…0.03 in² (4…20 mm²) (12 AWG...4 AWG) |
| Height | 4.1 in (105 mm) |
| Width | 0.7 in (19 mm) |
| Depth | 2.9 in (74 mm) |
| Product Weight | 0.529 lb(US) (0.240 kg) |
| Environment | |
| Certifications | UL ListedCSA |
| Ambient Rating | 104 °F (40 °C) |
| Ordering and shipping details | |
| Category | US10DE200015 |
| Discount Schedule | 0DE2 |
| GTIN | 785901520672 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.300 in (3.302 cm) |
| Package 1 Width | 3.800 in (9.652 cm) |
| Package 1 Length | 5.500 in (13.970 cm) |
| Package weight(Lbs) | 8.800 oz (249.476 g) |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet

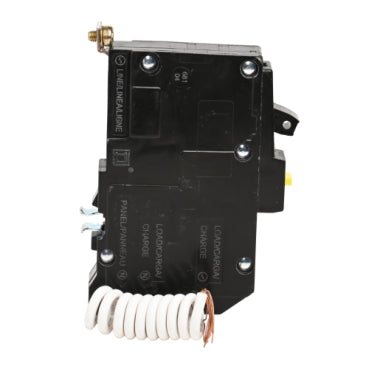

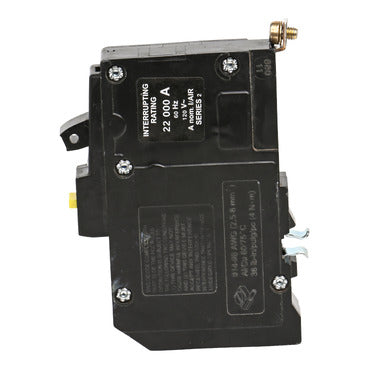

QOB115VHGFI
QOB115VHGFI
