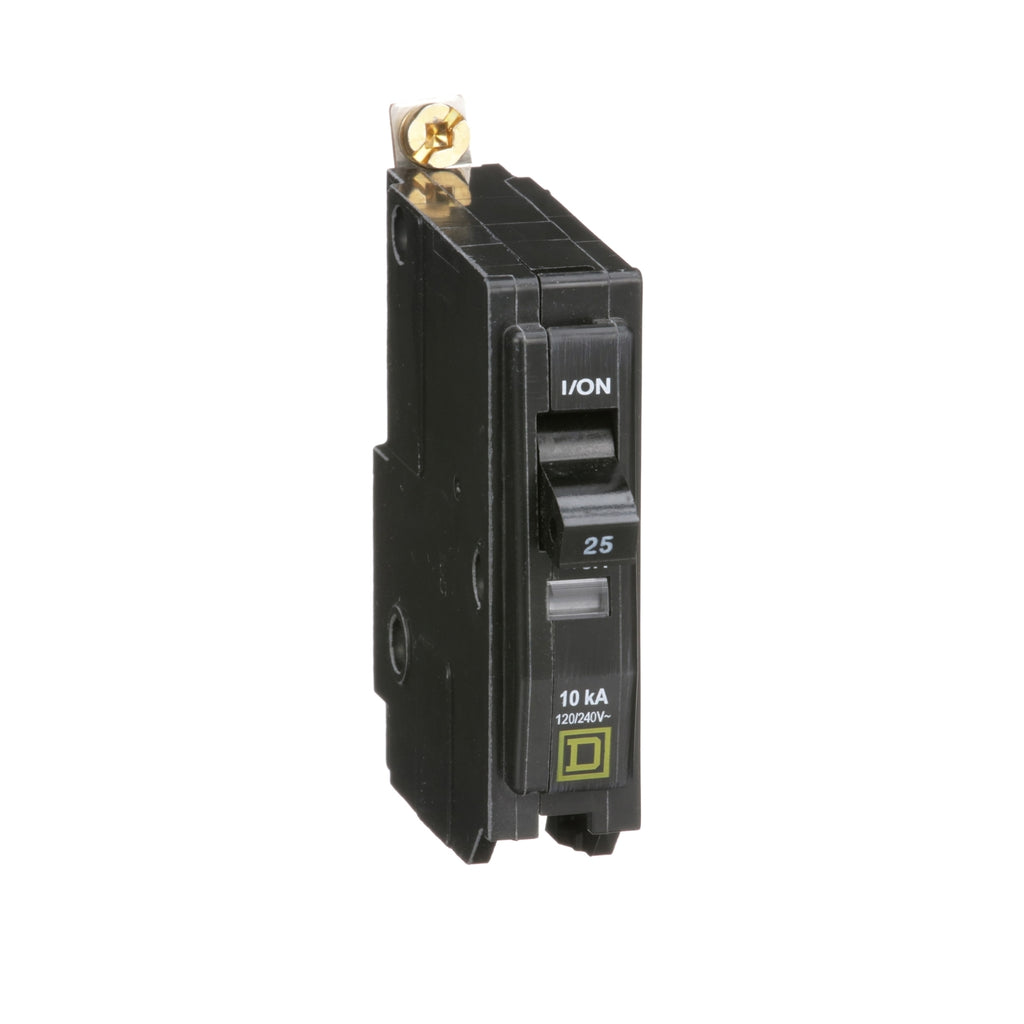

QOB125 - Schneider Electric - Bolt-On 25 Amp 1 Pole 120 Volt Square D Circuit Breaker
Roll over image to zoom in Click on image to zoom
QOB125 - Schneider Electric - Bolt-On 25 Amp 1 Pole 120 Volt Square D Circuit Breaker

QOB125 - Schneider Electric - Bolt-On 25 Amp 1 Pole 120 Volt Square D Circuit Breaker

Square DSKU: SQDQOB125
Price:
$19.10
Stock:
Sold out

Description

QOB125 - Schneider Electric - Bolt-On 25 Amp 1 Pole 120 Volt Square D Circuit Breaker

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 25A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

GENERAL SPECIFICATIONS

Main
Product Miniature circuit-breaker
Range QO
Current Rating 25 A
Voltage Rating 120/240 V AC
120 V AC
Mounting Type Bolt-on
Number of Poles 1P
Circuit Breaker Type Standard
Ratings HACR rated
Electrical Connection Pressure plate
Complementary
Interrupt Rating 10 kA 120/240 V AC
10 kA 120 V AC
Number of Panel Spaces 1
Wire Size AWG 14...AWG 8 copper or aluminium
Tightening Torque 35.4 lbf.in (4 N.m)
Height 3.0 in (76 mm)
Width 0.7 in (19 mm)
Depth 2.9 in (74 mm)
Net Weight 0.291 lb(US) (0.132 kg)
Environment
Certifications UL Listed
CSA
Ambient Rating 104 °F (40 °C)
Ordering and shipping details
Category US10DE200015
Discount Schedule 0DE2
GTIN 785901368250
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 0.900 in (2.286 cm)
Package 1 Width 3.50 in (8.89 cm)
Package 1 Length 3.50 in (8.89 cm)
Package weight(Lbs) 4.640 oz (131.542 g)


PRODUCT DATASHEET

Schneider Electric_Square-D-QO-and-QOB-Miniature-Circuit-Breakers_QOB125
