Description
| Main | |
|---|---|
| Product | Miniature circuit-breaker |
| Range | QO |
| Current Rating | 125 A |
| Voltage Rating | 120/240 V AC240 V AC120 V AC |
| Mounting Type | Bolt-on |
| Number of Poles | 2P |
| Circuit Breaker Type | Standard |
| Ratings | HACR rated |
| Electrical Connection | Pressure plate |
| Complementary | |
| Interrupt Rating | 22 kA 120/240 V AC 22 kA 240 V AC 22 kA 120 V AC |
| Number of Panel Spaces | 2 |
| Wire Size | 4 AWG...300 kcmil copper or aluminium |
| Tightening Torque | 49.6 lbf.in (5.6 N.m) |
| Height | 3.5 in (89 mm) |
| Width | 1.5 in (38 mm) |
| Depth | 2.9 in (74 mm) |
| Product Weight | 0.701 lb(US) (0.318 kg) |
| Environment | |
| Certifications | UL ListedCSA |
| Ambient Rating | 104 °F (40 °C) |
| Ordering and shipping details | |
| Category | US10DE200015 |
| Discount Schedule | 0DE2 |
| GTIN | 785901120650 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 3.50 in (8.89 cm) |
| Package 1 Width | 1.600 in (4.064 cm) |
| Package 1 Length | 4.400 in (11.176 cm) |
| Package weight(Lbs) | 11.200 oz (317.515 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 51 |
| Package 2 Height | 3.800 in (9.652 cm) |
| Package 2 Width | 14.50 in (36.83 cm) |
| Package 2 Length | 21.200 in (53.848 cm) |
| Package 2 Weight | 36.643 lb(US) (16.621 kg) |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet

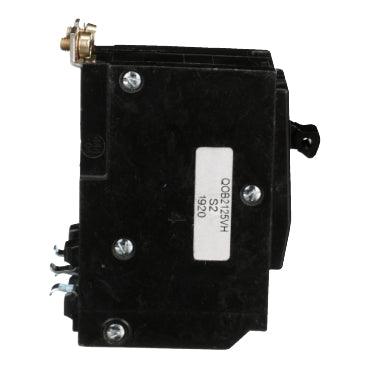

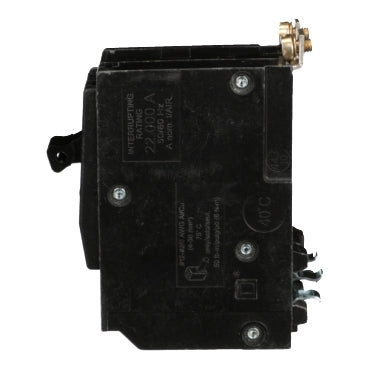

QOB2125VH
QOB2125VH
