Description
| Main | |
|---|---|

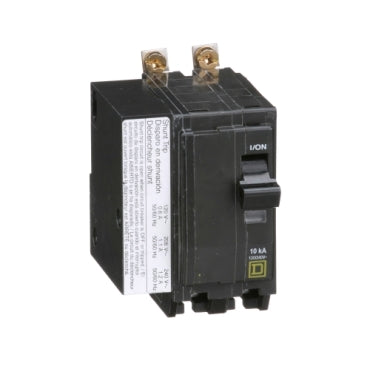

| Product | Miniature circuit-breaker |
| Range | QO |
| Current Rating | 60 A |
| Voltage Rating | 120/240 V AC120 V AC |
| Mounting Type | Bolt-on |
| Number of Poles | 2P |
| Circuit Breaker Type | Standard |
| Ratings | HACR rated |
| Electrical Connection | Pressure plate |
| Options | Shunt trip 120/208/240 V AC |
| Complementary | |
| Interrupt Rating | 10 kA 120/240 V AC 10 kA 120 V AC |
| Number of Panel Spaces | 3 |
| Wire Size | 8 AWG...2 AWG copper or aluminium |
| Tightening Torque | 44.3 lbf.in (5 N.m) |
| Height | 3.1 in (79 mm) |
| Width | 2.2 in (57 mm) |
| Depth | 2.9 in (74 mm) |
| Product Weight | 0.959 lb(US) (0.435 kg) |
| Environment | |
| Certifications | UL ListedCSA |
| Ambient Rating | 104 °F (40 °C) |
| Ordering and shipping details | |
| Category | US10DE200015 |
| Discount Schedule | 0DE2 |
| GTIN | 785901494355 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 4.800 in (12.192 cm) |
| Package 1 Width | 3.600 in (9.144 cm) |
| Package 1 Length | 3.300 in (8.382 cm) |
| Package weight(Lbs) | 15.360 oz (435.449 g) |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet
QOB2601021
QOB2601021
