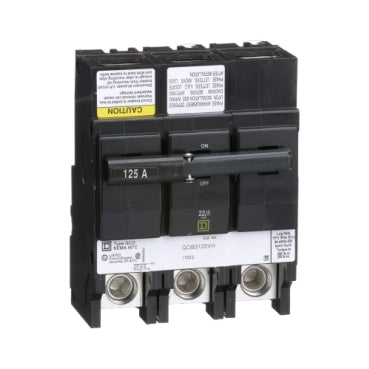

QOB3125VH - Square D - 125A 120 240VAC QO Bolt On Mini Circuit Breaker 3 Pole 22kA
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 125A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
GENERAL SPECIFICATIONS
| Product | Miniature circuit-breaker |
|---|---|
| Range | QO |
| Current Rating | 125 A |
| Voltage Rating | 120/240 V AC 240 V AC 120 V AC |
| Mounting Type | Bolt-on |
| Number of Poles | 3P |
| Circuit Breaker Type | Standard |
| Ratings | Not rated |
| Electrical Connection | Pressure plate |
| Interrupt Rating | 22 kA 120/240 V AC 22 kA 240 V AC 22 kA 120 V AC |
|---|---|
| Number of Panel Spaces | 6 |
| Wire Size | AWG 4...300 kcmil copper or aluminium |
| Tightening Torque | 49.6 lbf.in (5.6 N.m) |
| Height | 5.7 in (145 mm) |
| Width | 4.5 in (114 mm) |
| Depth | 4.9 in (124 mm) |
| Net Weight | 0.959 lb(US) (0.435 kg) |
| Certifications | UL Listed CSA |
|---|---|
| Ambient Rating | 104 °F (40 °C) |
| Category | US10DE200015 |
|---|---|
| Discount Schedule | 0DE2 |
| GTIN | 785901065470 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 4.300 in (10.922 cm) |
| Package 1 Width | 5.000 in (12.700 cm) |
| Package 1 Length | 6.800 in (17.272 cm) |
| Package weight(Lbs) | 3.900 lb(US) (1.769 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 558 |
| Package 2 Height | 40.000 in (101.600 cm) |
| Package 2 Width | 40.000 in (101.600 cm) |
| Package 2 Length | 48.000 in (121.920 cm) |
| Package 2 Weight | 2216.0003 lb(US) (1005.160 kg) |
