Description
| Main | |
|---|---|
| Product | Miniature circuit-breaker |
| Range | QO |
| Current Rating | 20 A |
| Voltage Rating | 208Y/120 V AC |
| Mounting Type | Bolt-on |
| Number of Poles | 3P |
| Circuit Breaker Type | Ground fault protecting class A 6 mA |
| Ratings | Not rated |
| Electrical Connection | Pressure plate |
| Complementary | |
| Interrupt Rating | 10 kA 208Y/120 V AC |
| Number of Panel Spaces | 3 |
| Wire Size | 12 AWG...4 AWG aluminium14 AWG...6 AWG copper |
| Tightening Torque | 35.4 lbf.in (4 N.m)40.7 lbf.in (4.6 N.m) 0.006…0.03 in² (4…20 mm²) (12 AWG...4 AWG) |
| Height | 4.1 in (105 mm) |
| Width | 2.2 in (57 mm) |
| Depth | 2.9 in (74 mm) |
| Product Weight | 1.0009 lb(US) (0.454 kg) |
| Environment | |
| Certifications | UL ListedCSA |
| Ambient Rating | 104 °F (40 °C) |
| Ordering and shipping details | |
| Category | US1DE2A00103 |
| Discount Schedule | DE2A |
| GTIN | 785901732228 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.700 in (6.858 cm) |
| Package 1 Width | 3.400 in (8.636 cm) |
| Package 1 Length | 6.400 in (16.256 cm) |
| Package weight(Lbs) | 1.3 lb(US) (0.6 kg) |
| Compliance | |
| Compliance | TAA Compliant |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet

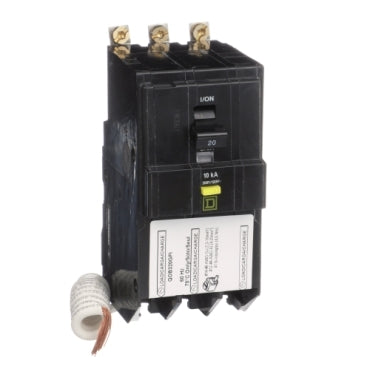

QOB320GFI
QOB320GFI
