Description
| Main | |
|---|---|
| Product | Miniature circuit-breaker |
| Range | QO |
| Current Rating | 20 A |
| Voltage Rating | 120/240 V AC |
| Mounting Type | Bolt-on |
| Number of Poles | 3P |
| Circuit Breaker Type | Switch neutral |
| Ratings | Not rated |
| Electrical Connection | Pressure plate |
| Complementary | |
| Interrupt Rating | 10 kA 120/240 V AC |
| Number of Panel Spaces | 3 |
| Wire Size | 14 AWG...8 AWG copper or aluminium |
| Tightening Torque | 35.4 lbf.in (4 N.m) |
| Height | 3.0 in (76 mm) |
| Width | 2.2 in (57 mm) |
| Depth | 2.9 in (74 mm) |
| Product Weight | 0.911 lb(US) (0.413 kg) |
| Environment | |
| Certifications | UL ListedCSA |
| Ambient Rating | 104 °F (40 °C) |
| Ordering and shipping details | |
| Category | US10DE200015 |
| Discount Schedule | 0DE2 |
| GTIN | 785901341901 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.700 in (6.858 cm) |
| Package 1 Width | 3.200 in (8.128 cm) |
| Package 1 Length | 4.200 in (10.668 cm) |
| Package weight(Lbs) | 14.560 oz (412.769 g) |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet

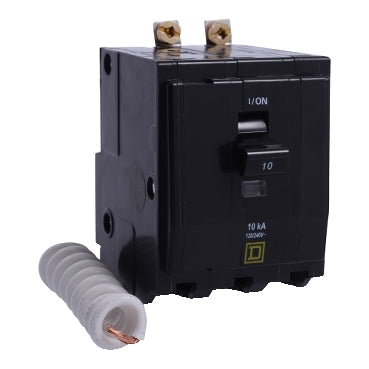

QOB320SWN
QOB320SWN
