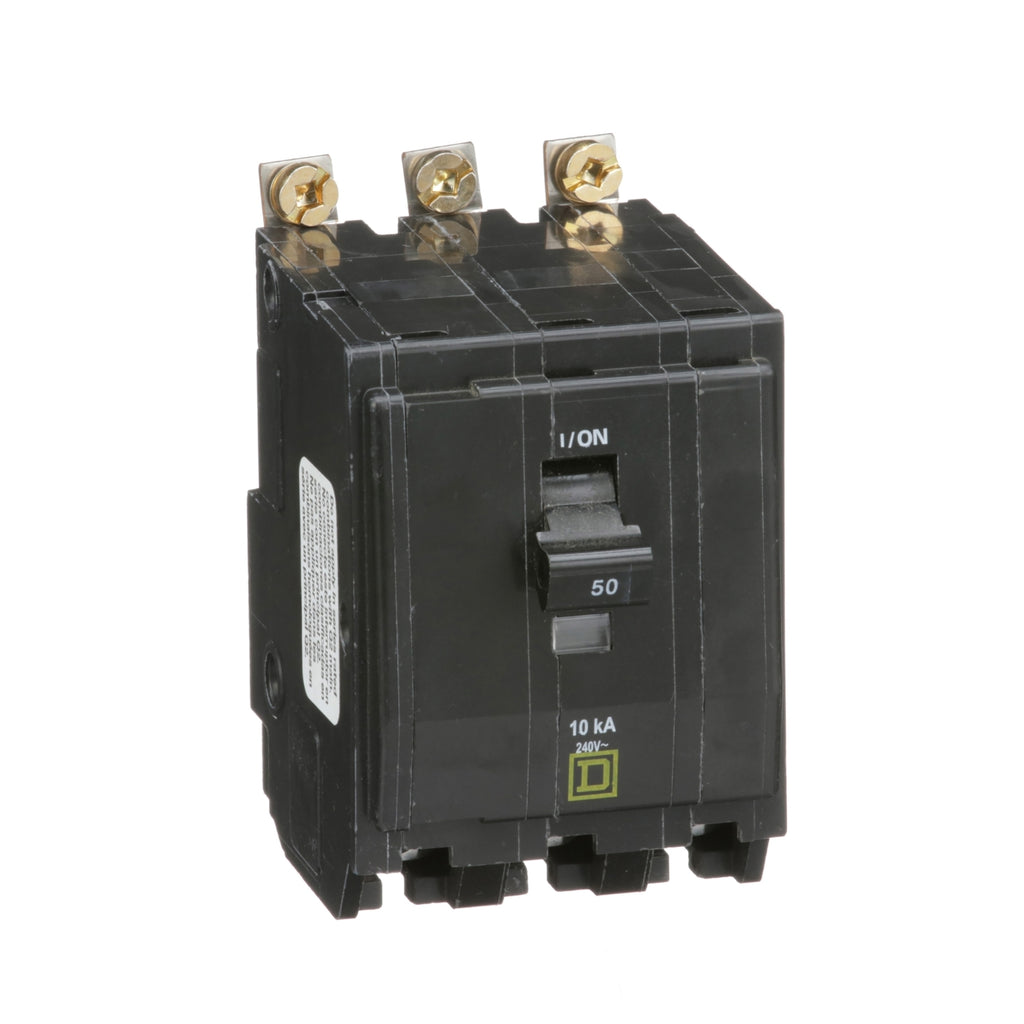

QOB350 - Schneider Electric - Bolt-On 50 Amp 3 Pole 240 Volt Square D Circuit Breaker
Roll over image to zoom in Click on image to zoom
QOB350 - Schneider Electric - Bolt-On 50 Amp 3 Pole 240 Volt Square D Circuit Breaker

QOB350 - Schneider Electric - Bolt-On 50 Amp 3 Pole 240 Volt Square D Circuit Breaker

Square DSKU: SQDQOB350
Price:
$85.44
Stock:
Sold out

Description

QOB350 - Schneider Electric - Bolt-On 50 Amp 3 Pole 240 Volt Square D Circuit Breaker

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 50A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

GENERAL SPECIFICATIONS

Main
Product Miniature circuit-breaker
Range QO
Current Rating 50 A
Voltage Rating 240 V AC
Mounting Type Bolt-on
Number of Poles 3P
Circuit Breaker Type Standard
Ratings HACR rated
Electrical Connection Pressure plate
Complementary
Interrupt Rating 10 kA 240 V AC
Number of Panel Spaces 3
Wire Size AWG 8...AWG 2 copper or aluminium
Tightening Torque 44.3 lbf.in (5 N.m)
Height 3.1 in (79 mm)
Width 2.2 in (57 mm)
Depth 2.9 in (74 mm)
Net Weight 0.851 lb(US) (0.386 kg)
Environment
Certifications UL Listed
CSA
Ambient Rating 104 °F (40 °C)
Ordering and shipping details
Category US10DE200015
Discount Schedule 0DE2
GTIN 785901417163
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 2.20 in (5.59 cm)
Package 1 Width 3.00 in (7.62 cm)
Package 1 Length 3.60 in (9.14 cm)
Package weight(Lbs) 13.60 oz (385.56 g)
Unit Type of Package 2 BB1
Number of Units in Package 2 3
Package 2 Height 3.400 in (8.636 cm)
Package 2 Width 2.800 in (7.112 cm)
Package 2 Length 6.900 in (17.526 cm)
Package 2 Weight 2.58 lb(US) (1.17 kg)
Unit Type of Package 3 CAR
Number of Units in Package 3 36
Package 3 Height 3.400 in (8.636 cm)
Package 3 Width 14.200 in (36.068 cm)
Package 3 Length 21.600 in (54.864 cm)
Package 3 Weight 31.90 lb(US) (14.47 kg)


PRODUCT DATASHEET

Schneider Electric_Square-D-QO-and-QOB-Miniature-Circuit-Breakers_QOB350
