QOC20U100S - Schneider Electric - Square D QOC 20U 100A Disconnect Switch

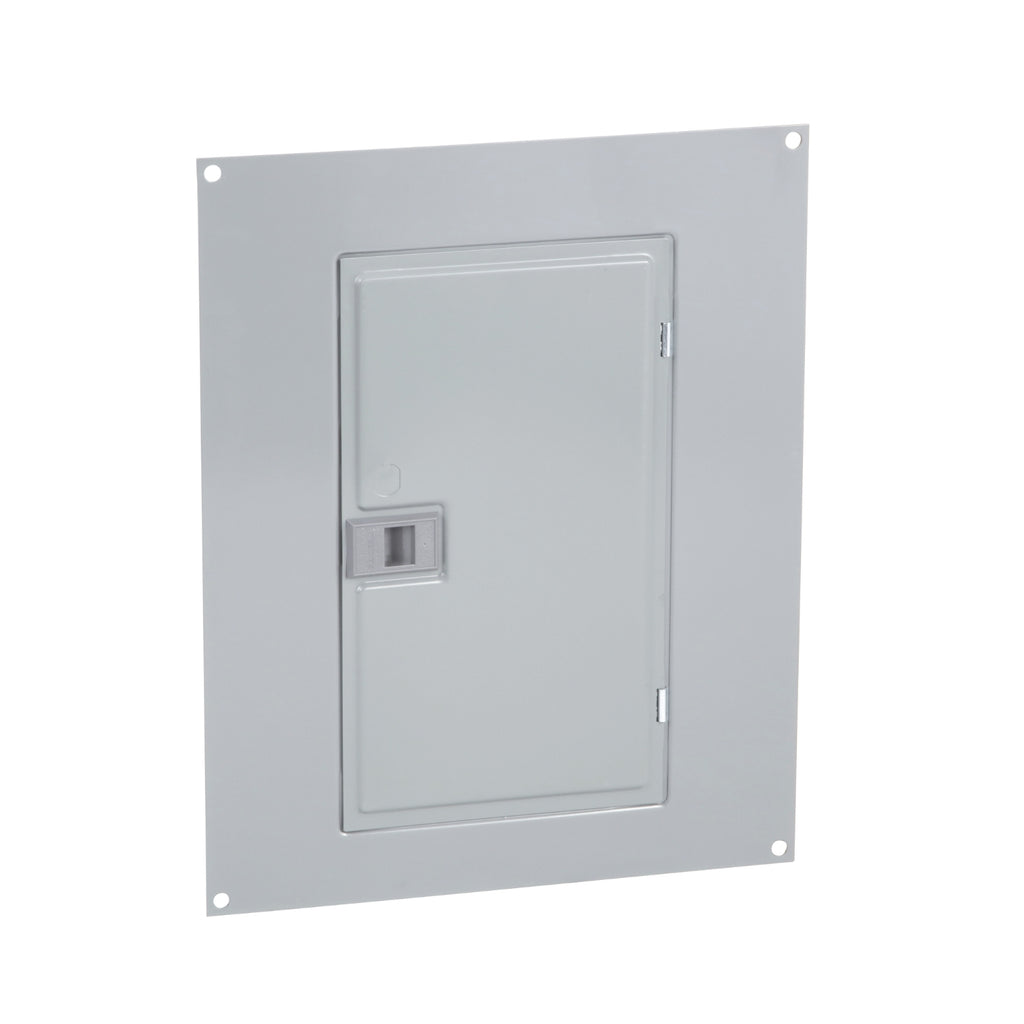

QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers enable the use of a full complement of accessories. Systems are single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO load centers feature plated copper bus, providing superior performance and durability. This surface mounting load center cover is painted gray. This cover is for an indoor load center rated NEMA 1 with 20 spaces. This unit is used with a 125A main.
GENERAL SPECIFICATIONS
Main
| Marketing Trade Name |
QO |
| Product Type |
Load Center Cover |
Complementary
| Cover Type |
Surface cover |
| Product Compatibility |
For indoor load center |
| Surface Finish |
Baked enamel Gray |
| Number of Spaces |
20 |
| Height |
17.92 in (455.17 mm) |
| Width |
14.25 in (361.95 mm) |
| Depth |
0.7 in (17.8 mm) |
| Tightening Torque |
Cover 2.3 N.m |
Ordering and shipping details
| Category |
US1DE3A00001 |
| Discount Schedule |
DE3A |
| GTIN |
785901746003 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
1.25 in (3.175 cm) |
| Package 1 Width |
14.50 in (36.830 cm) |
| Package 1 Length |
18.00 in (45.720 cm) |
| Package 1 Weight |
5.851 lb(US) (2.654 kg) |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
162 |
| Package 2 Height |
39.50 in (100.330 cm) |
| Package 2 Width |
40.00 in (101.600 cm) |
| Package 2 Length |
48.00 in (121.920 cm) |
| Package 2 Weight |
924.000 lb(US) (419.119 kg) |
PRODUCT DATASHEET
QOC20U100S_Product Datasheet
