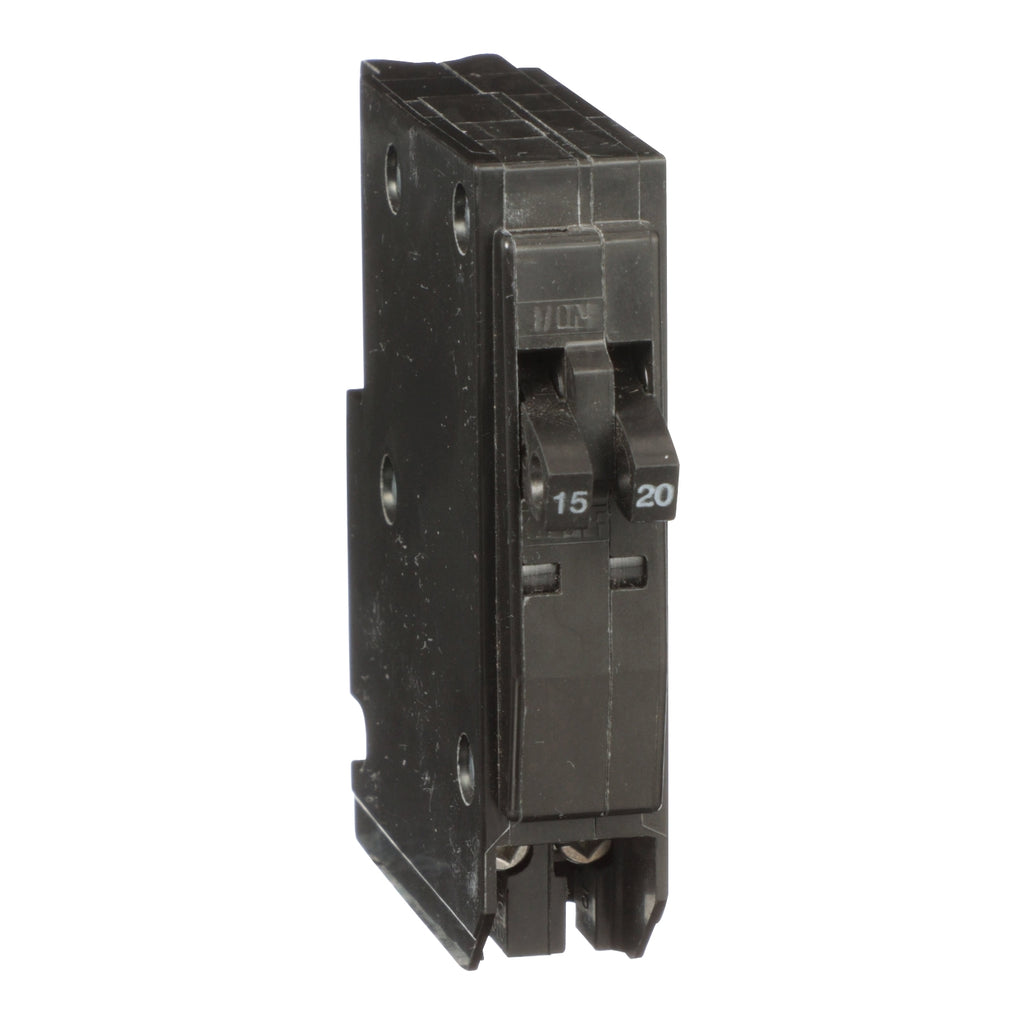

QOT1520 - Schneider Electric - Plug in 20 Amp 1 Pole 120 Volt Tandem Circuit Breaker
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This QO tandem mini circuit breaker has 1 one pole at 15A and 1 one pole at 20A for 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
GENERAL SPECIFICATIONS
| Product | Miniature circuit-breaker |
|---|---|
| Range | QO |
| Current Rating | 20 A 15 A |
| Voltage Rating | 120/240 V AC |
| Mounting Type | Plug-in |
| Number of Poles | 1P |
| Circuit Breaker Type | Tandem |
| Ratings | HACR rated |
| Electrical Connection | Pressure plate |
| Interrupt Rating | 10 kA 120/240 V AC |
|---|---|
| Number of Panel Spaces | 1 |
| Wire Size | AWG 14...AWG 8 copper AWG 12...AWG 8 aluminium |
| Tightening Torque | 24.8 lbf.in (2.8 N.m) |
| Height | 3.2 in (82 mm) |
| Width | 0.7 in (19 mm) |
| Depth | 2.9 in (74 mm) |
| Net Weight | 0.311 lb(US) (0.141 kg) |
| Certifications | UL Listed CSA |
|---|---|
| Ambient Rating | 104 °F (40 °C) |
| Category | US1DE2A00004 |
|---|---|
| Discount Schedule | DE2A |
| GTIN | 785901418047 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.70 in (1.778 cm) |
| Package 1 Width | 3.50 in (8.890 cm) |
| Package 1 Length | 3.30 in (8.382 cm) |
| Package 1 Weight | 4.960 oz (140.614 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3.70 in (9.398 cm) |
| Package 2 Width | 3.60 in (9.144 cm) |
| Package 2 Length | 7.60 in (19.304 cm) |
| Package 2 Weight | 3.320 lb(US) (1.506 kg) |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 100 |
| Package 3 Height | 8.30 in (21.082 cm) |
| Package 3 Width | 7.70 in (19.558 cm) |
| Package 3 Length | 19.40 in (49.276 cm) |
| Package 3 Weight | 34.020 lb(US) (15.431 kg) |
