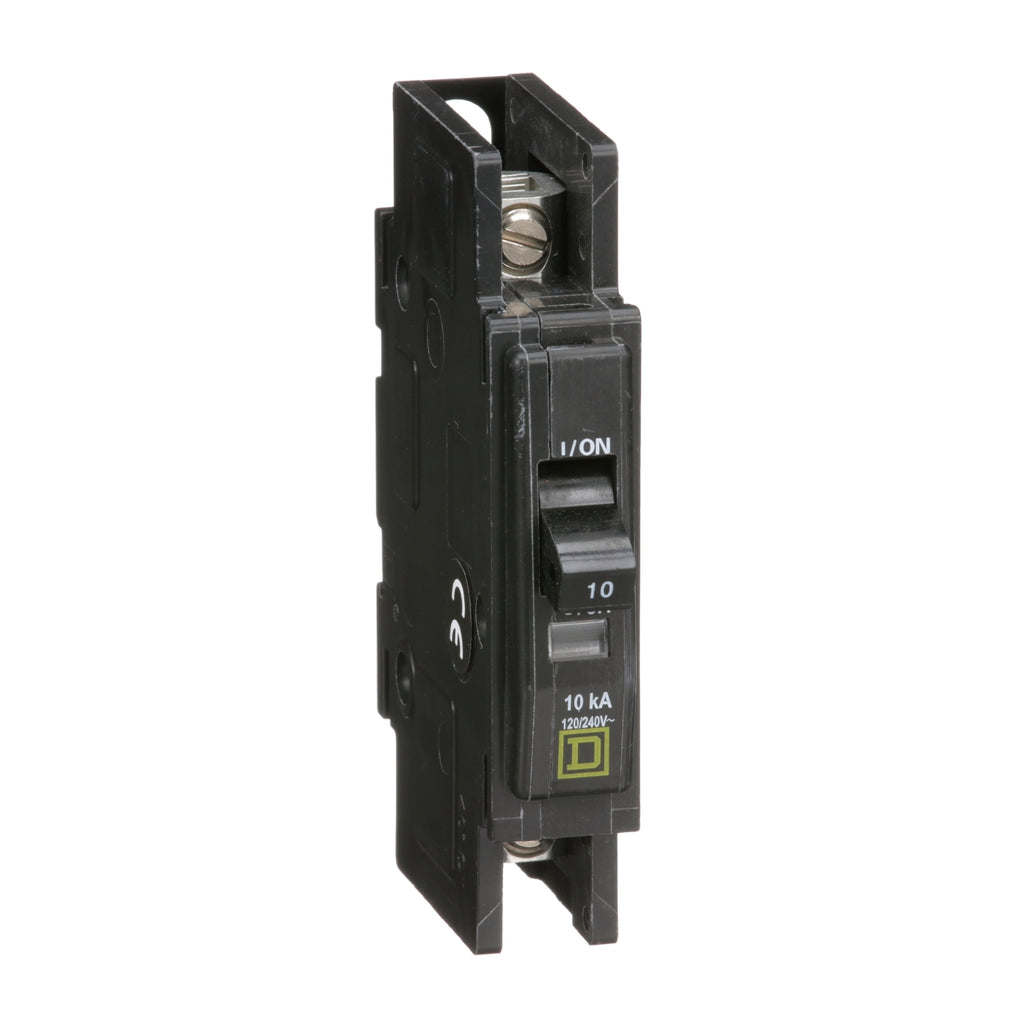

QOU110 - Schneider Electric - Bolt-On 10 Amp 1 Pole 120 Volt Square D Circuit Breaker
QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This one pole QOU miniature circuit breaker is rated as 10A, 240VAC. This circuit breaker provides 10 kA breaking capacity. QOU circuit breakers have been verified to adhere to their datasheet specifications by UL and CSA.
GENERAL SPECIFICATIONS
| Product or Component Type | Miniature circuit-breaker |
| Range of Product | QOU |
| Circuit breaker type | Standard |
| Circuit breaker application | HACR rated |
| Complementary | |
| Line Rated Current | 10 A |
| Number of Poles | 1P |
| Short-circuit current | 10 kA |
| Interrupt Rating | 10 kA 120/240 V AC |
| 10 kA 120 V AC | |
| Electrical connection | Slotted box lugs, line side |
| Slotted box lugs, load side | |
| [Ue] rated operational voltage | 120/240 V AC |
| 120 V AC | |
| 48 V DC | |
| Mounting Mode | Unit mount |
| AWG gauge | AWG 14...AWG 2 aluminium/copper |
| Height | 4.05 in (102.87 mm) |
| Width | 0.75 in (19.05 mm) |
| Depth | 2.95 in (74.93 mm) |
| Tightening torque | 45 lbf.in (5.08 N.m) (AWG 14...AWG 2) |
| Environment | |
| Product Certifications | IEC |
| CSA | |
| UL Listed | |
| Ordering and shipping details | |
| Category | US10DE200900 |
| Discount Schedule | 0DE2 |
| GTIN | 785901205678 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.00 in (2.54 cm) |
| Package 1 Width | 3.100 in (7.874 cm) |
| Package 1 Length | 4.50 in (11.43 cm) |
| Package weight(Lbs) | 6.400 oz (181.437 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 66 |
| Package 2 Height | 3.300 in (8.382 cm) |
| Package 2 Width | 14.00 in (35.56 cm) |
| Package 2 Length | 20.900 in (53.086 cm) |
| Package 2 Weight | 24.749 lb(US) (11.226 kg) |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 2772 |
| Package 3 Height | 40.0 in (101.6 cm) |
| Package 3 Width | 40.0 in (101.6 cm) |
| Package 3 Length | 48.00 in (121.92 cm) |
| Package 3 Weight | 1013.999 lb(US) (459.942 kg) |
