Description
| Main | |
|---|---|
| Product or Component Type | Miniature circuit-breaker |
| Range of Product | QOU |
| Circuit breaker type | Standard |
| Circuit breaker application | HACR rated |
| Complementary | |
| Line Rated Current | 70 A |
| Number of Poles | 2P |
| Short-circuit current | 10 kA |
| Interrupt Rating | 10 kA 120/240 V AC10 kA 120 V AC |
| Electrical connection | Slotted box lugs, line sideSlotted box lugs, load side |
| [Ue] rated operational voltage | 120/240 V AC120 V AC48 V DC |
| Mounting Mode | Unit mount |
| AWG gauge | 12 AWG...2/0 AWG aluminium/copper |
| Height | 4.45 in (113.03 mm) |
| Width | 1.5 in (38.1 mm) |
| Depth | 2.95 in (74.93 mm) |
| Tightening torque | 45 lbf.in (5.08 N.m) (14 AWG...2 AWG) |
| Environment | |
| Product Certifications | UL ListedCSAIEC |
| Ordering and shipping details | |
| Category | US10DE200900 |
| Discount Schedule | 0DE2 |
| GTIN | 785901418832 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.000 in (5.080 cm) |
| Package 1 Width | 3.500 in (8.890 cm) |
| Package 1 Length | 4.800 in (12.192 cm) |
| Package weight(Lbs) | 12.320 oz (349.266 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 3.800 in (9.652 cm) |
| Package 2 Width | 14.000 in (35.560 cm) |
| Package 2 Length | 21.000 in (53.340 cm) |
| Package 2 Weight | 18.0008 lb(US) (8.165 kg) |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 1008 |
| Package 3 Height | 40.000 in (101.600 cm) |
| Package 3 Width | 40.000 in (101.600 cm) |
| Package 3 Length | 48.000 in (121.920 cm) |
| Package 3 Weight | 756.0010 lb(US) (342.916 kg) |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet

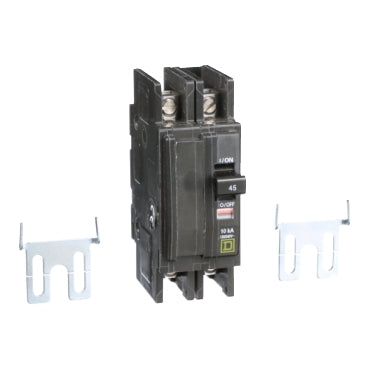

QOU270
QOU270
