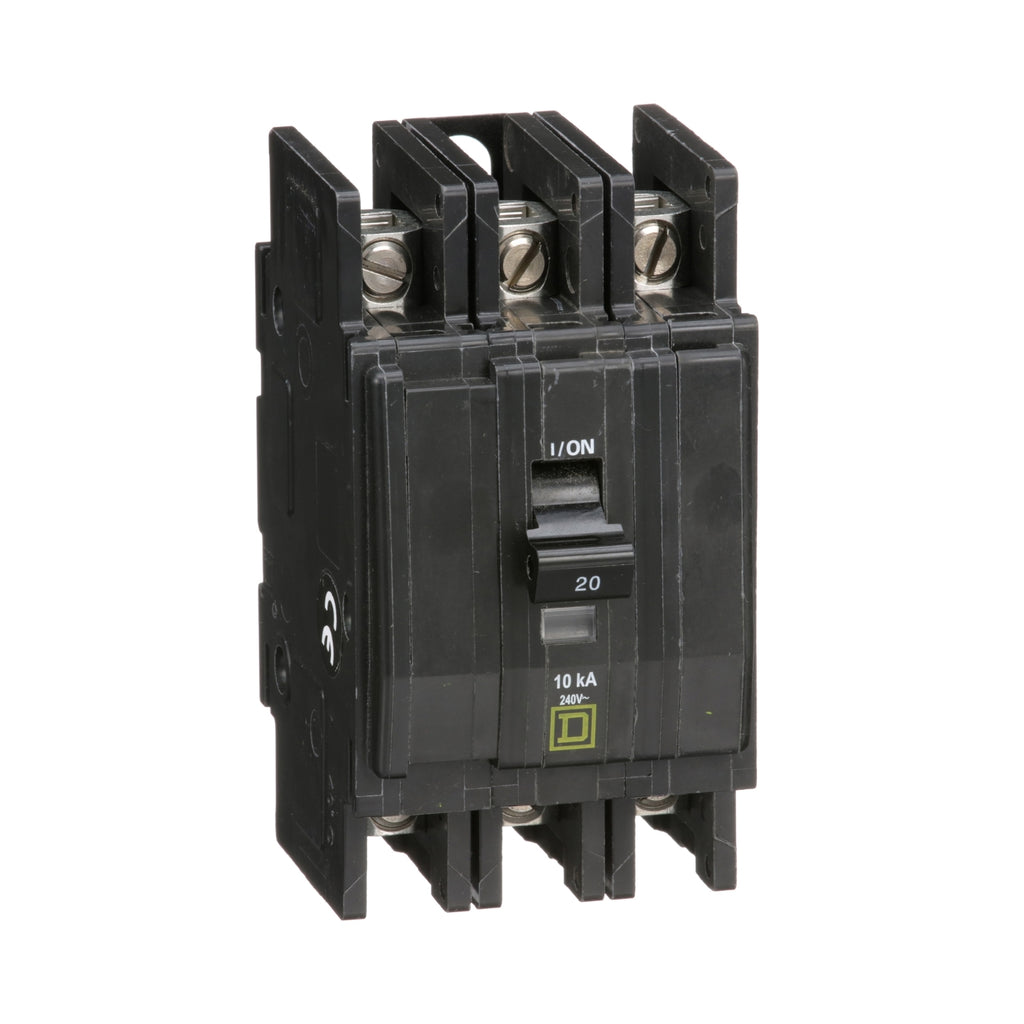

QOU320 - Schneider Electric - Bolt-On 20 Amp 3 Pole 240 Volt Square D Circuit Breaker
Roll over image to zoom in Click on image to zoom
QOU320 - Schneider Electric - Bolt-On 20 Amp 3 Pole 240 Volt Square D Circuit Breaker

QOU320 - Schneider Electric - Bolt-On 20 Amp 3 Pole 240 Volt Square D Circuit Breaker

Square DSKU: SQDQOU320
Price:
$107.73
Stock:
Sold out

Description

QOU320 - Schneider Electric - Bolt-On 20 Amp 3 Pole 240 Volt Square D Circuit Breaker

QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This three pole QOU miniature circuit breaker is rated as 20A, 240VAC. This circuit breaker provides 10 kA breaking capacity. QOU circuit breakers have been verified to adhere to their datasheet specifications by UL and CSA.

GENERAL SPECIFICATIONS

Main
Product or Component Type Miniature circuit-breaker
Range of Product QOU
Circuit breaker type Standard
Circuit breaker application HACR rated
Complementary
Line Rated Current 20 A
Number of Poles 3P
Short-circuit current 10 kA
Interrupt Rating 10 kA 120/240 V AC
10 kA 240 V AC
10 kA 120 V AC
Electrical connection Slotted box lugs, line side
Slotted box lugs, load side
[Ue] rated operational voltage 120/240 V AC
240 V AC
120 V AC
48 V DC
Mounting Mode Unit mount
AWG gauge AWG 14...AWG 2 aluminium/copper
Height 4.05 in (102.87 mm)
Width 2.25 in (57.15 mm)
Depth 2.95 in (74.93 mm)
Tightening torque 45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
Environment
Product Certifications CSA
UL Listed
IEC
Ordering and shipping details
Category US10DE200900
Discount Schedule 0DE2
GTIN 7.85901E+11
Returnability Yes
Country of origin MX
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 3.500 in (8.890 cm)
Package 1 Width 3.800 in (9.652 cm)
Package 1 Length 4.900 in (12.446 cm)
Package weight(Lbs) 17.616 oz (499.405 g)
Unit Type of Package 2 CAR
Number of Units in Package 2 20
Package 2 Height 3.800 in (9.652 cm)
Package 2 Width 13.500 in (34.290 cm)
Package 2 Length 20.500 in (52.070 cm)
Package 2 Weight 22.780 lb(US) (10.333 kg)
Unit Type of Package 3 PAL
Number of Units in Package 3 840
Package 3 Height 40.000 in (101.600 cm)
Package 3 Width 40.000 in (101.600 cm)
Package 3 Length 48.000 in (121.920 cm)
Package 3 Weight 949.999 lb(US) (430.912 kg)



PRODUCT DATASHEET

Schneider Electric_QOU-Unit-Mount-Circuit-Breakers_QOU320
