Description
GENERAL
| Application | For Tee, Cross, Parallel, Butt, and Tap Connections, Copper |

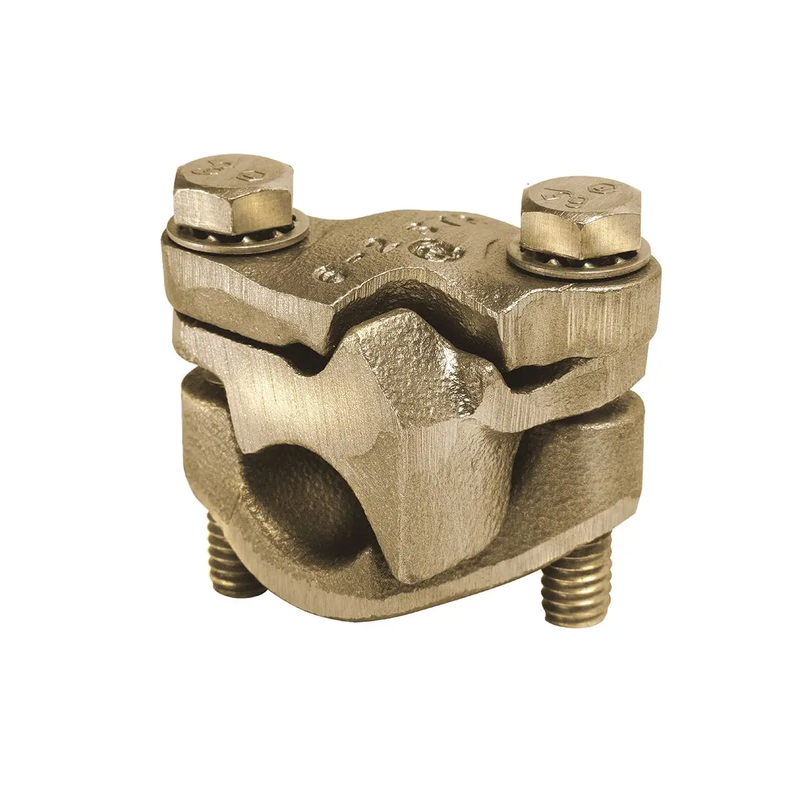

| Catalog Number | QPX2828 |
| Connector Type | Universal Clamp |
| Installation Torque Recommended in-lb | 240 LBS/in |
| Material | Copper |
| Material - Hardware | DURIUM™ Silicon Bronze |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Plated | No |
| Plating Type | Unplated |
| Product Family | MECHANICAL |
| Product Type | Run/Tap |
| Sub Brand | VERSITAP |
| Trade Name | VERSITAP™ |
| Type | QPX |
| UPC | 781810342503 |
| UPC 14 Digit GTIN | 00781810342503 |
DIMENSIONS
| Dimension - Height fraction | 2-3/8 |
| Dimension - Height inch | 2.38 in |
| Dimension - Height mm | 60.5 mm |
| Dimension - L Length Overall mm | 46 mm |
| Dimension - Length Overall inch | 1.81 in |
| Dimension - Width fraction | 1-13/16 in |
| Dimension - Width inch | 1.81 in |
| Dimension - Width mm | 46 mm |
| Package Height | 0 in |
| Package Length | 0 in |
| Package Weight | 0 lb |
| Package Width | 0 in |
CONDUCTOR RELATED
| Conductor - Copper Str Run | 1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG |
| Conductor - Copper Str Run Range | 1 AWG-4/0 AWG |
| Conductor - Copper Str Tap | 1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG |
| Conductor - Copper Str Tap Range | 1 AWG-4/0 AWG |
| Conductor Type | CU C Str-Run CU C Str-Tap |
CERTIFICATIONS AND COMPLIANCE
| Certification - CSA Approved | Yes |
| Certification - UL Listed Direct Burial | No |
| Industry Standard(s) | UL 486A-486B |
| Standards - Industry Standards Met | UL 486A-486B |
| Standards - RoHS Compliance Status | EX |
| UL Listed | Yes |
FORCE RELATED
| Installation Torque Recommended in-lb | 240 LBS/in |
CONFIGURATION
| Connector Type | Universal Clamp |
LOGISTICS
| Carton Quantity | 10 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 2100 |
