Description
GENERAL
| Application | For Tee, Cross, Parallel, Butt And Tap Connections |

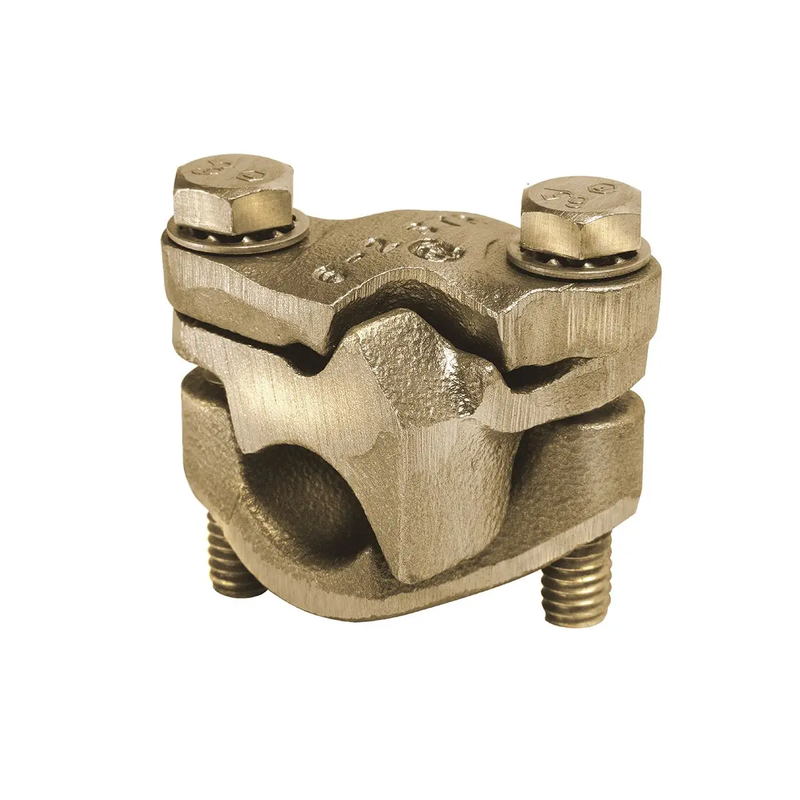

| Catalog Number | QPX3434 |
| Connector Type | Universal Clamp |
| Installation Torque Recommended in-lb | 240 LBS/in |
| Material | Copper |
| Material - Hardware | DURIUM™ Silicon Bronze |
| Plated | No |
| Plating Type | Unplated |
| Product Family | MECHANICAL |
| Product Type | Run/Tap |
| Sub Brand | VERSITAP |
| Temperature Rating | 194 |
| Trade Name | VERSITAP™ |
| Type | QPX |
| UPC | 781810344002 |
| UPC 14 Digit GTIN | 00781810344002 |
DIMENSIONS
| Dimension - Height fraction | 3 |
| Dimension - Height inch | 3 |
| Dimension - Height mm | 76.2 mm |
| Dimension - L Length Overall mm | 52 mm |
| Dimension - Length Overall inch | 2.06 in |
| Dimension - Width fraction | 2-3/16 in |
| Dimension - Width inch | 2.19 |
| Dimension - Width mm | 56 mm |
| Package Height | 0 in |
| Package Length | 0 in |
| Package Weight | 0 lb |
| Package Width | 0 in |
ELECTRICAL RATINGS
| Rating - Minimum Voltage | 600 |
CONDUCTOR RELATED
| Conductor - Copper Str Run | 250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil |
| Conductor - Copper Str Run Range | 250 kcmil-500 kcmil |
| Conductor - Copper Str Tap | 250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil |
| Conductor - Copper Str Tap Range | 250 kcmil-500 kcmil |
| Conductor - Nominal Diameter | 0.114, 0.128, 0.144, 0.162, 0.571, 0.600, 0.630, 0.681, 0.728, 0.772, 0.813 |
| Conductor Type | CU C Str-Run CU C Str-Tap |
CERTIFICATIONS AND COMPLIANCE
| Buy America(n) Qualified | Contact Manufacturer |
| Certification - CSA Approved | Yes |
| Certification - cULus | No |
| Certification - ETL | No |
| Certification - UL Listed Direct Burial | No |
| Certification - UL Recognized | No |
| Industry Standard(s) | UL 486A-486B |
| Standards - Industry Standards Met | UL 486A-486B |
| Standards - RoHS Compliance Status | EX |
| UL Listed | Yes |
FORCE RELATED
| Installation Torque Recommended in-lb | 240 LBS/in |
OPERATIONAL
| Temperature Rating | 194 |
CONFIGURATION
| Connector Type | Universal Clamp |
LOGISTICS
| Carton Quantity | 6 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 1008 |
