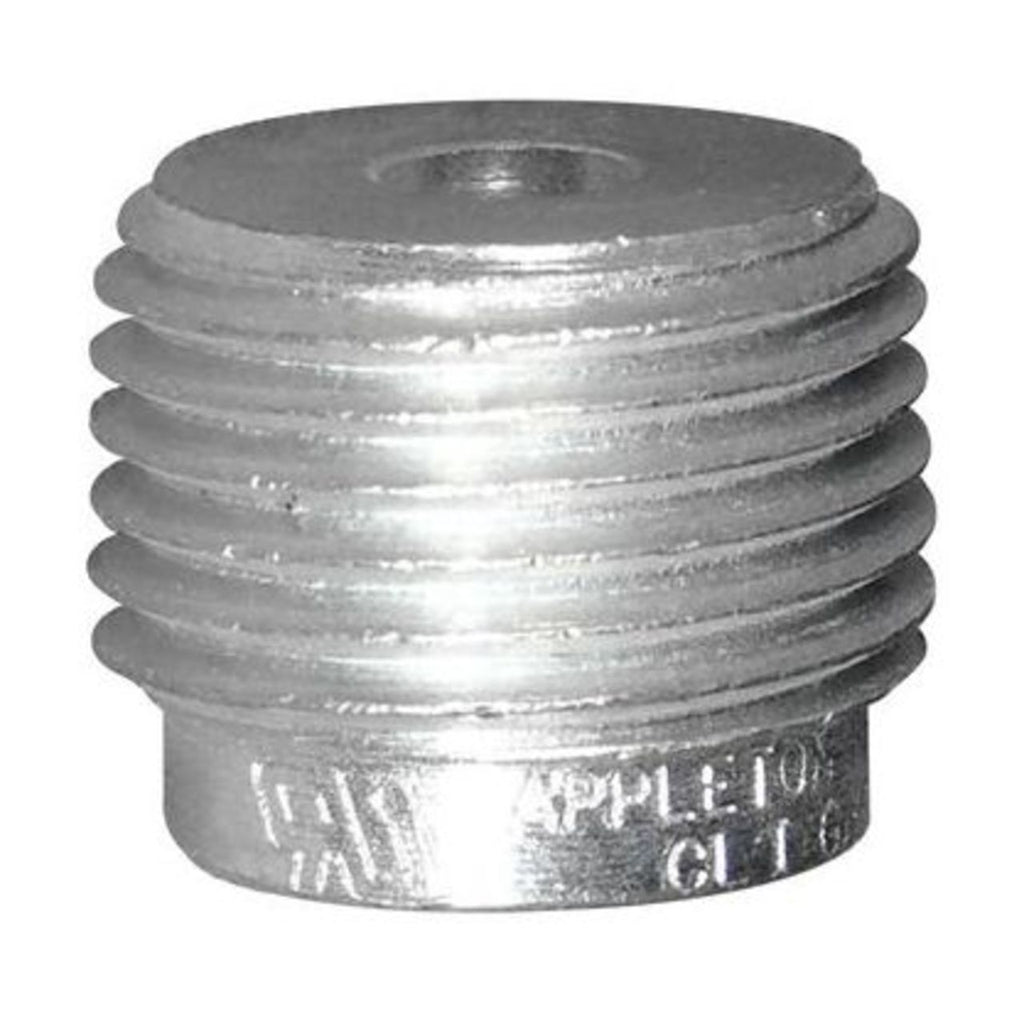

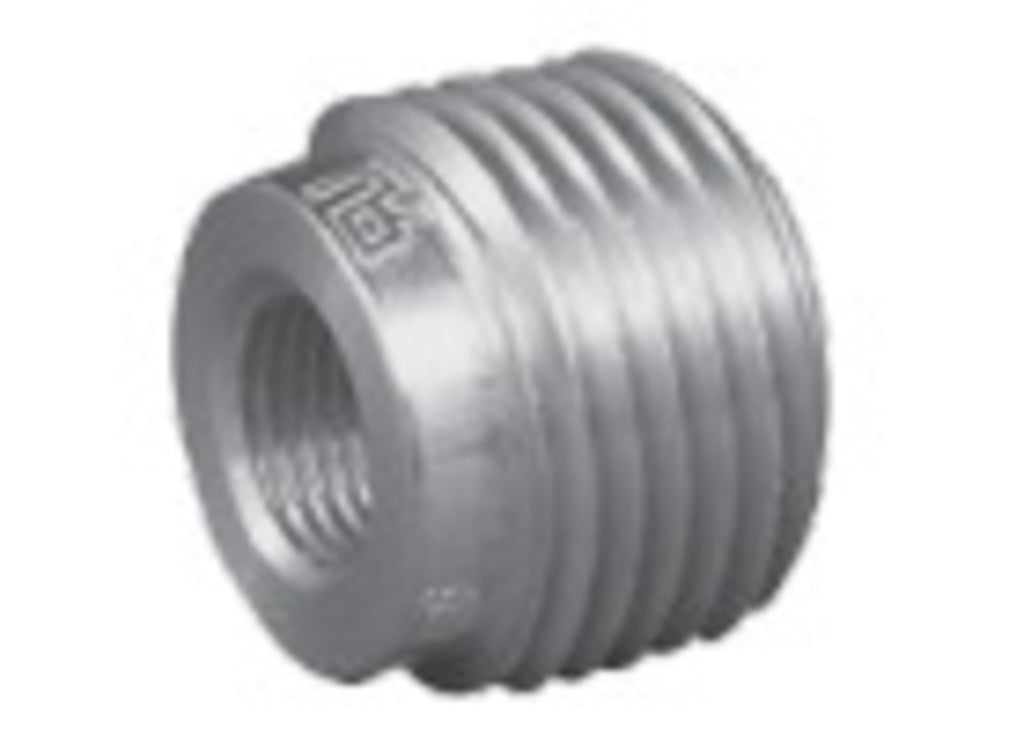

RB125100 - Appleton - 1‑1/4" x 1" Threaded Reducing Bushing
A sturdy conduit reducer that adapts a 1-1/4" conduit to a 1" hub. Designed for hazardous areas, this fitting ensures a tight seal with precision-machined NPT threads and a corrosion-resistant aluminum build.
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- RB75-50 thru RB200-150 all materials: Class I, Division 1 and 2, Groups A, B, C, D; Class I, Zone 1 and, 2, Groups IIA, IIB, IIC; Class II, Division 1 and 2, Groups E, F, G; Class III
- NEC/CEC Certifications and Compliances
- RB-200-100 thru RB400-350: Class I, Division 1 and 2, Groups B, C, D; Class I, Zone 1 and 2, Groups IIA, IIB + H2; Class II, Division 1 and 2, Groups E, F, G; Class III
- Standard Material and Finishes
- Steel with zinc electroplate. Malleable iron with triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat. Aluminum with natural finish
