Description

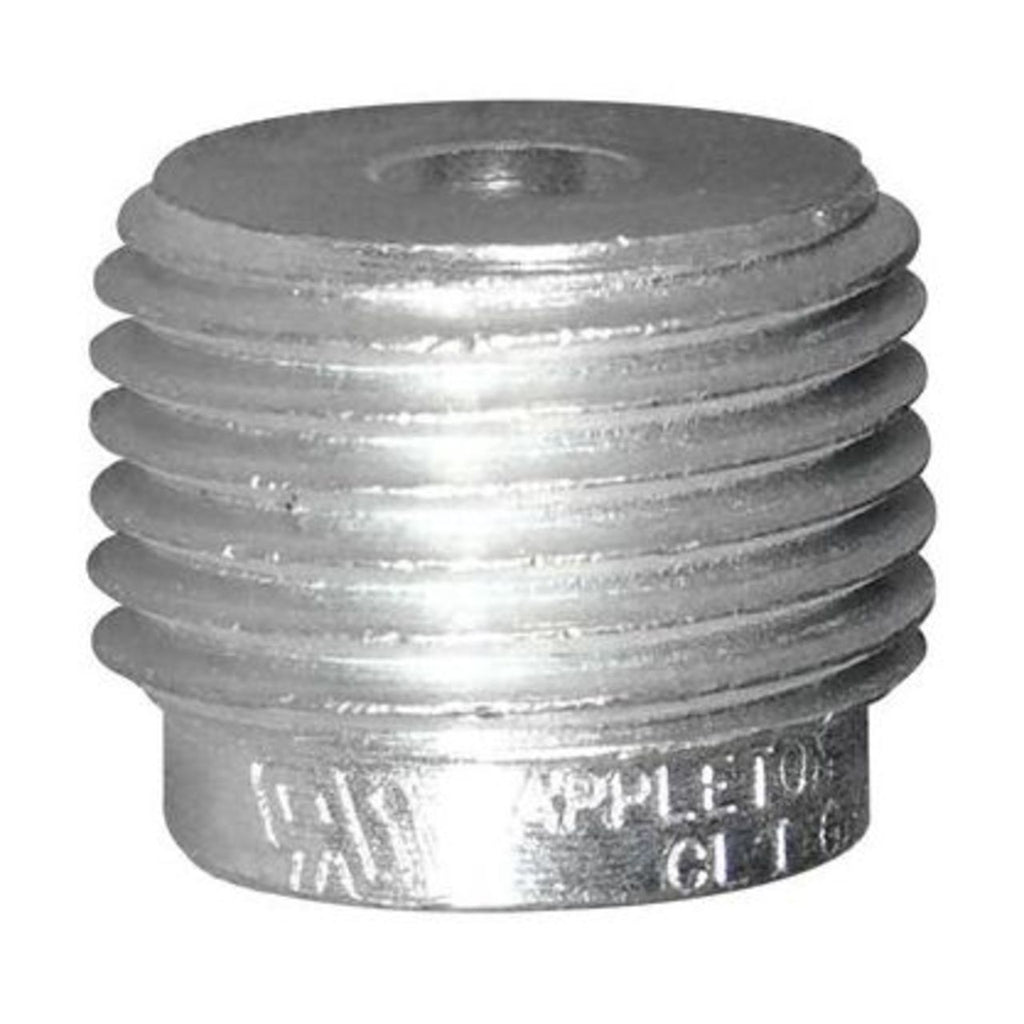

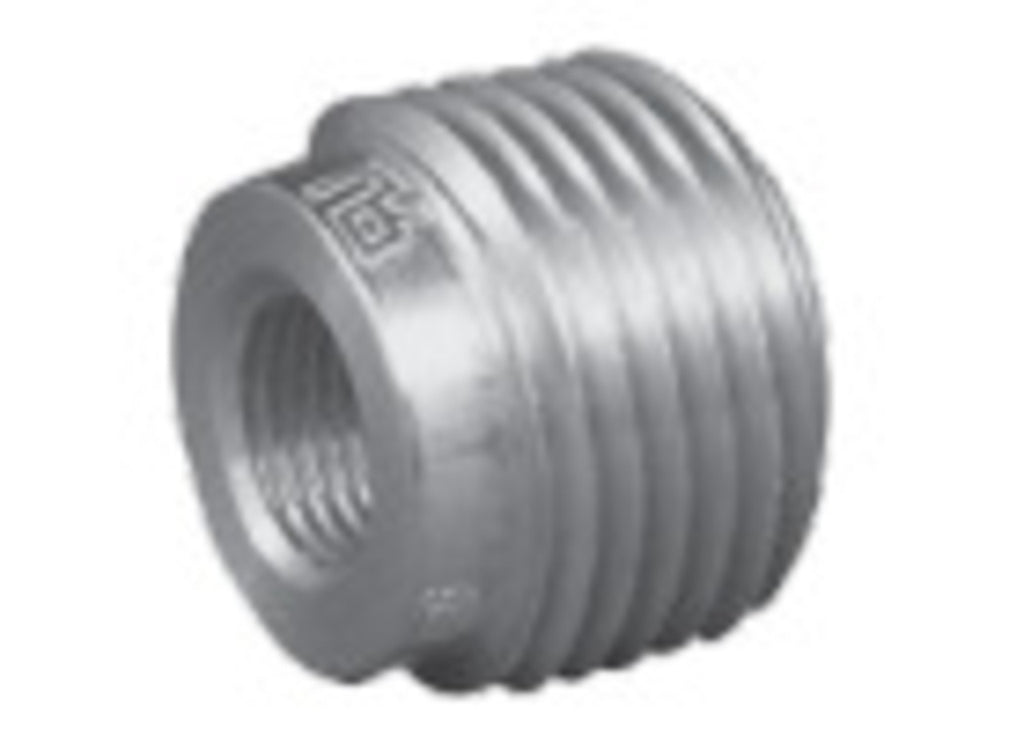

RB350300 - Appleton - 3‑1/2" x 3" Threaded Malleable Reducing Bushing
Appleton’s RB350300 bushing is designed to reduce conduit entries from 3‑1/2 inches to 3 inches while ensuring reliable grounding and secure connections. This component is ideal for applications requiring smooth wire pulling and solid mechanical support across conduit transitions.
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- RB75-50 thru RB200-150 all materials: Class I, Division 1 and 2, Groups A, B, C, D; Class I, Zone 1 and, 2, Groups IIA, IIB, IIC; Class II, Division 1 and 2, Groups E, F, G; Class III
- NEC/CEC Certifications and Compliances
- RB-200-100 thru RB400-350: Class I, Division 1 and 2, Groups B, C, D; Class I, Zone 1 and 2, Groups IIA, IIB + H2; Class II, Division 1 and 2, Groups E, F, G; Class III
- Standard Material and Finishes
- Steel with zinc electroplate. Malleable iron with triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat. Aluminum with natural finish
