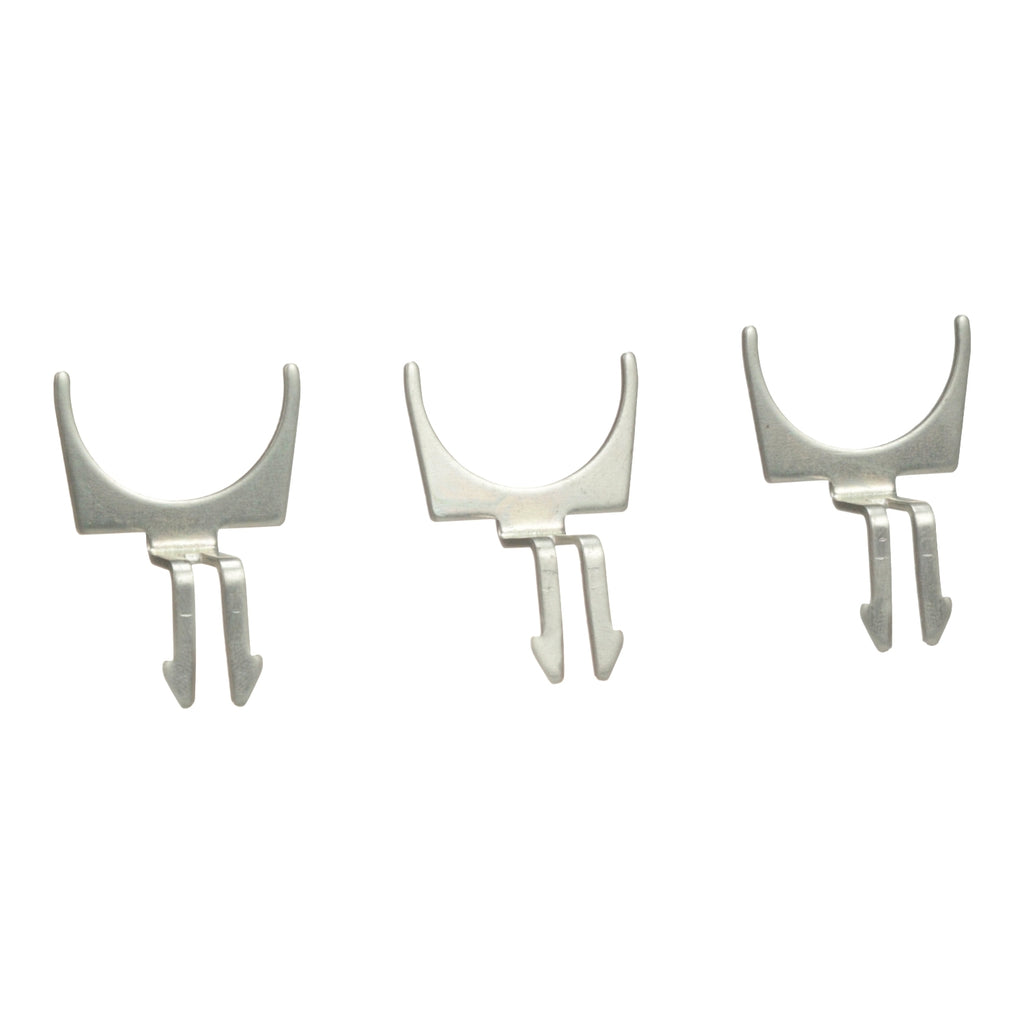

RFK06H - Schneider Electric - Square D Fuse Rejection Kit Safety Switch 60A 600V Series F5/F6
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 100A and is UL listed with a NEMA 3R rating of protection. This Class R Fuse Rejection Kit has a rated current of 200A. This fuse kit is for type R fuses. This kit is for a 3-pole and is made of polyester charged with fibreglass for an operational voltage of 240VAC & 600VAC. This Heavy Duty Safety Switch, Fuse Rejection Kit, Class R has a UL listed & CSA certifications.
GENERAL SPECIFICATIONS
Main
| Product or Component Type |
Fuse rejection kit |
| Product destination |
Safety switch |
Complementary
| Fuse type |
R |
Ordering and shipping details
| Category |
US10DE100058 |
| Discount Schedule |
0DE1 |
| GTIN |
785901751335 |
| Returnability |
Yes |
| Country of origin |
US |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
0.100 in (0.254 cm) |
| Package 1 Width |
1.50 in (3.81 cm) |
| Package 1 Length |
1.200 in (3.048 cm) |
| Package weight(Lbs) |
0.480 oz (13.608 g) |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
4320 |
| Package 2 Height |
40.0 in (101.6 cm) |
| Package 2 Width |
40.0 in (101.6 cm) |
| Package 2 Length |
48.00 in (121.92 cm) |
| Package 2 Weight |
169.000 lb(US) (76.657 kg) |
PRODUCT DATASHEET
RFK06H_Product Datasheet
