Description

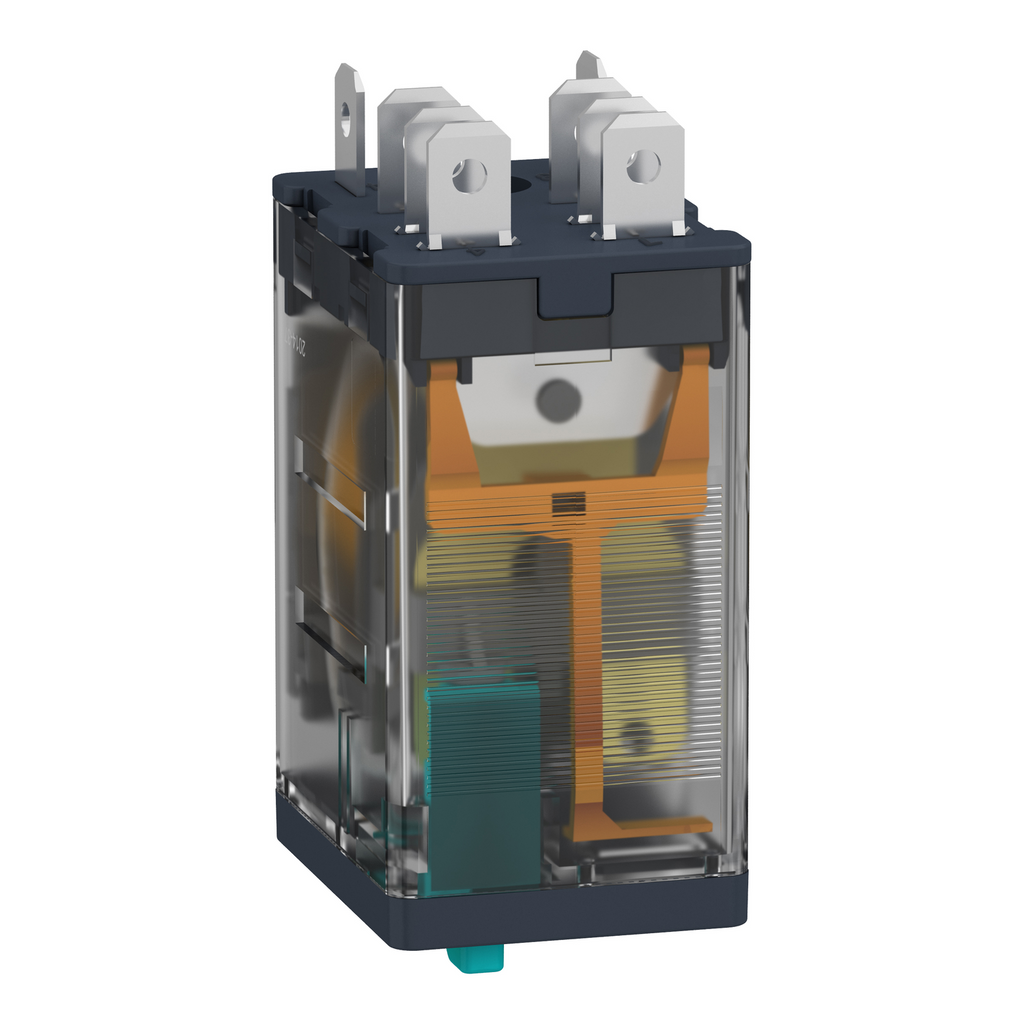

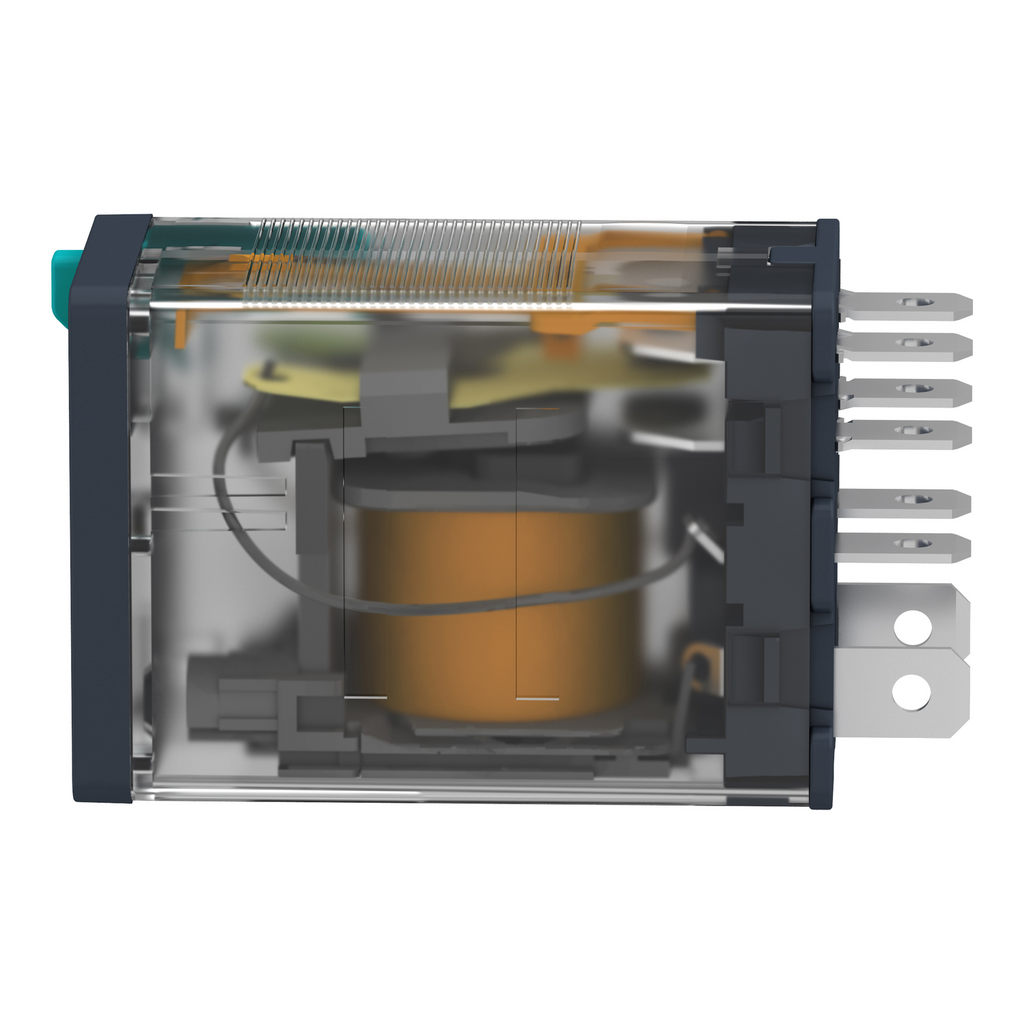

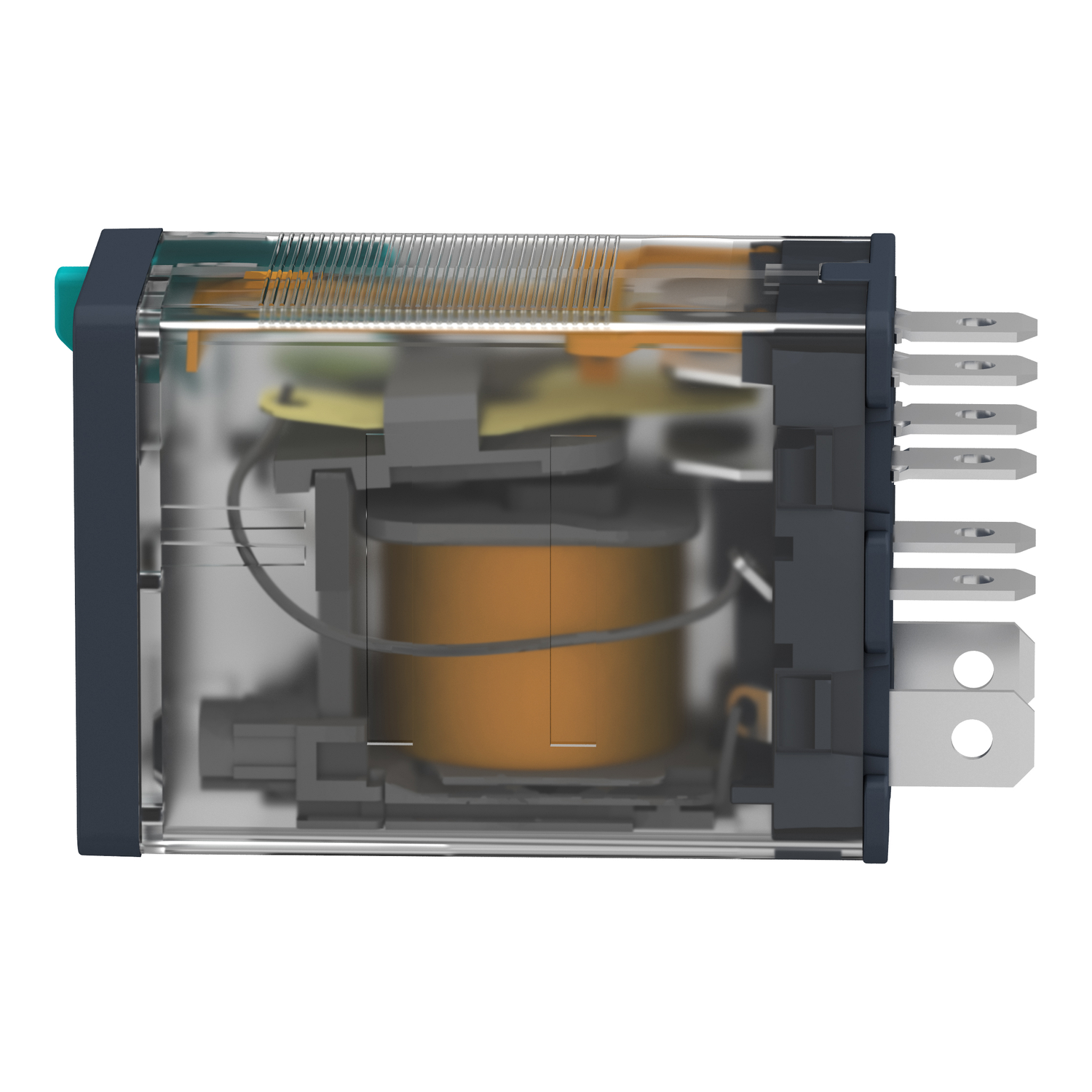

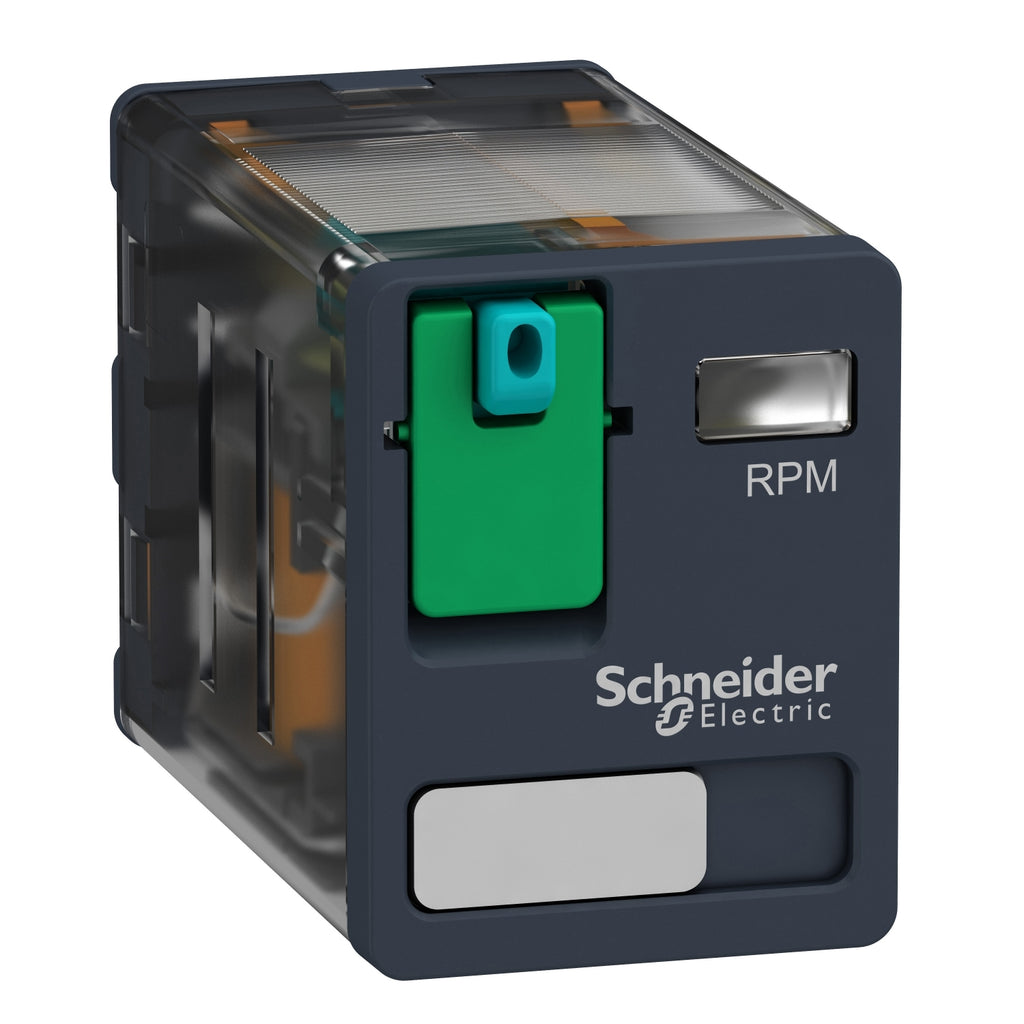

RPM21BD - Schneider Electric - Square D Plug-in Relay Harmony Electromechanical Relays 15A 2CO Lockable Test Button 24V DC
This Harmony RPM power plug-in relay has a coil control voltage of 24V DC and has 1 changeover contact DPDT (double pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type enables easy installation and maintenance. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs).
GENERAL SPECIFICATIONS
| Range of Product | Harmony Electromechanical Relays |
|---|---|
| Series name | RPM series |
| Product or Component Type | Plug-in relay |
| Contacts type and composition | 2 C/O |
| Relay Type | Power relay |
| Status LED | Without |
| [Uc] control circuit voltage | 24 V DC |
| Minimum switching capacity | 170 mW 10 mA, 17 V |
| Release time | 20 ms at nominal voltage |
| Ambient air temperature for operation | -40…131 °F (-40…55 °C) |
| [Ithe] conventional enclosed thermal current | 15 A -40…131 °F (-40…55 °C) |
| Control Type | Lockable test button |
|---|---|
| [Ie] rated operational current | 15 A 277 V AC) UL 15 A 28 V DC) UL 15 A 250 V AC) NO IEC 15 A 28 V DC) NO IEC 7.5 A 250 V AC) NC IEC 7.5 A 28 V DC) NC IEC |
| Degree of protection (Housing only) | IP40 conforming to IEC 60529 |
| Rated operational voltage limits | 19.2...26.4 V DC |
| [Ui] rated insulation voltage | 250 V IEC 300 V CSA 300 V UL |
| Maximum switching voltage | 250 V IEC |
| Drop-out voltage threshold | >= 0.1 Uc DC |
| Average coil consumption | 0.85 W |
| Average resistance | 640 Ohm at 68 °F (20 °C) +/- 10 % |
| Maximum switching capacity | 3750 VA 420 W |
| Load current | 15 A 250 V AC 15 A 28 V DC |
| Operating time | 20 ms at nominal voltage |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles resistive |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 1200 cycles/hour under load <= 18000 cycles/hour no-load |
| Utilisation coefficient | 20 % |
| Dielectric strength | 1500 V AC between contacts with micro disconnection 2000 V AC between coil and contact with reinforced 2000 V AC between poles with basic |
| [Uimp] rated impulse withstand voltage | 4 kV 1.2/50 µs |
| Protection category | RT I |
| Mounting Support | Plug-in |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | AgNi |
| Shape of pin | Flat (faston type) |
| Product Weight | 0.079 lb(US) (0.036 kg) |
| Pollution degree | 3 |
|---|---|
| Standards | IEC 61810-1 CSA C22.2 No 14 UL 508 |
| Product Certifications | EAC CSA UL |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Vibration resistance | 3 gn +/- 1 mm 10…150 Hz)5 cycles in operation 5 gn +/- 1 mm 10…150 Hz)5 cycles not operating |
| Shock resistance | 15 gnin operation 30 gnnot operating |
| Category | US10CP221127 |
|---|---|
| Discount Schedule | 0CP2 |
| GTIN | 3389119401814 |
| Returnability | Yes |
| Country of origin | CN |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.9 in (4.7 cm) |
| Package 1 Width | 0.8 in (2.1 cm) |
| Package 1 Length | 1.1 in (2.8 cm) |
| Package weight(Lbs) | 1.4 oz (39 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 1.3 in (3.2 cm) |
| Package 2 Width | 4.06 in (10.3 cm) |
| Package 2 Length | 4.8 in (12.3 cm) |
| Package 2 Weight | 14.2 oz (402 g) |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 5.9 in (15 cm) |
| Package 3 Width | 11.8 in (30 cm) |
| Package 3 Length | 15.7 in (40 cm) |
| Package 3 Weight | 22.51 lb(US) (10.21 kg) |
