Description

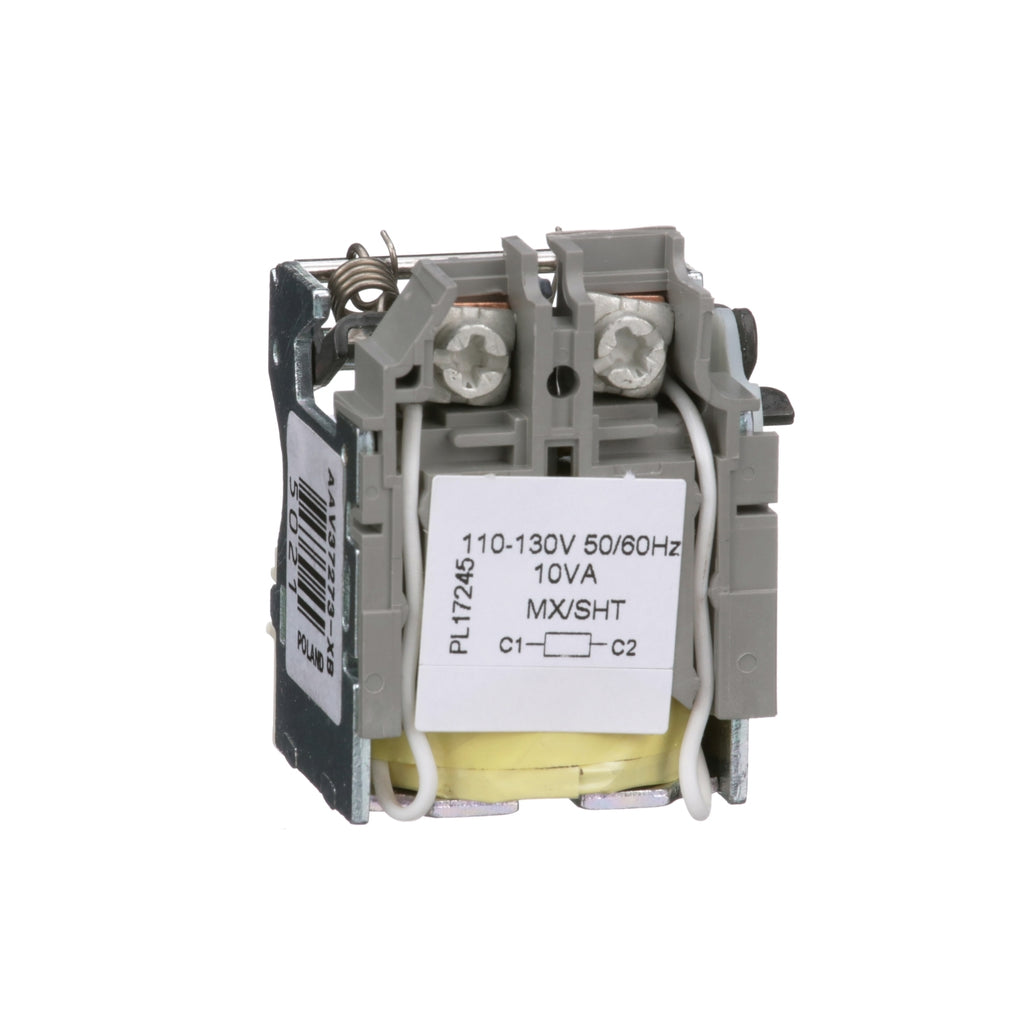

S29386 - Schneider Electric - Square D 120 Volt Electric Shunt Trip
The PowerPacT(TM) H-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H-frame circuit breakers are available with either thermal-magnetic or Micrologic(TM) electronic trip units. The amperage ratings of the thermal trip elements are calibrated at 104 degF (40 degC) free air ambient temperature. Per the National Electric Code(R) (NEC(R)) and the Canadian Electrical Code, standard circuit breakers may only be applied continuously at up to 80% of their rating. This PowerPacT H Ciecuit Beaker Shunt Trip, 110-130VAC. This product complies to UL & CSA certifications.
GENERAL SPECIFICATIONS
| Main | |
| Range of Product | PowerPact |
| Circuit breaker type | Standard |
| Complementary | |
| Tightening torque | 12.4 lbf.in (1.4 N.m) |
| Width | 1.28 in (32.51 mm) |
| Depth | 1.24 in (31.50 mm) |
| Height | 1.72 in (43.69 mm) |
| Ordering and shipping details | |
| Category | US10DE201103 |
| Discount Schedule | 0DE2 |
| GTIN | 785901712282 |
| Returnability | Yes |
| Country of origin | US |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 0.17 in (0.43 cm) |
| Package 1 Width | 0.400 in (1.016 cm) |
| Package 1 Length | 0.550 in (1.397 cm) |
| Package weight(Lbs) | 3.2 oz (91 g) |
PRODUCT DATASHEET
Schneider Electric_PowerPacT-HFrame-Molded-Case-Circuit-Breakers_S29386
